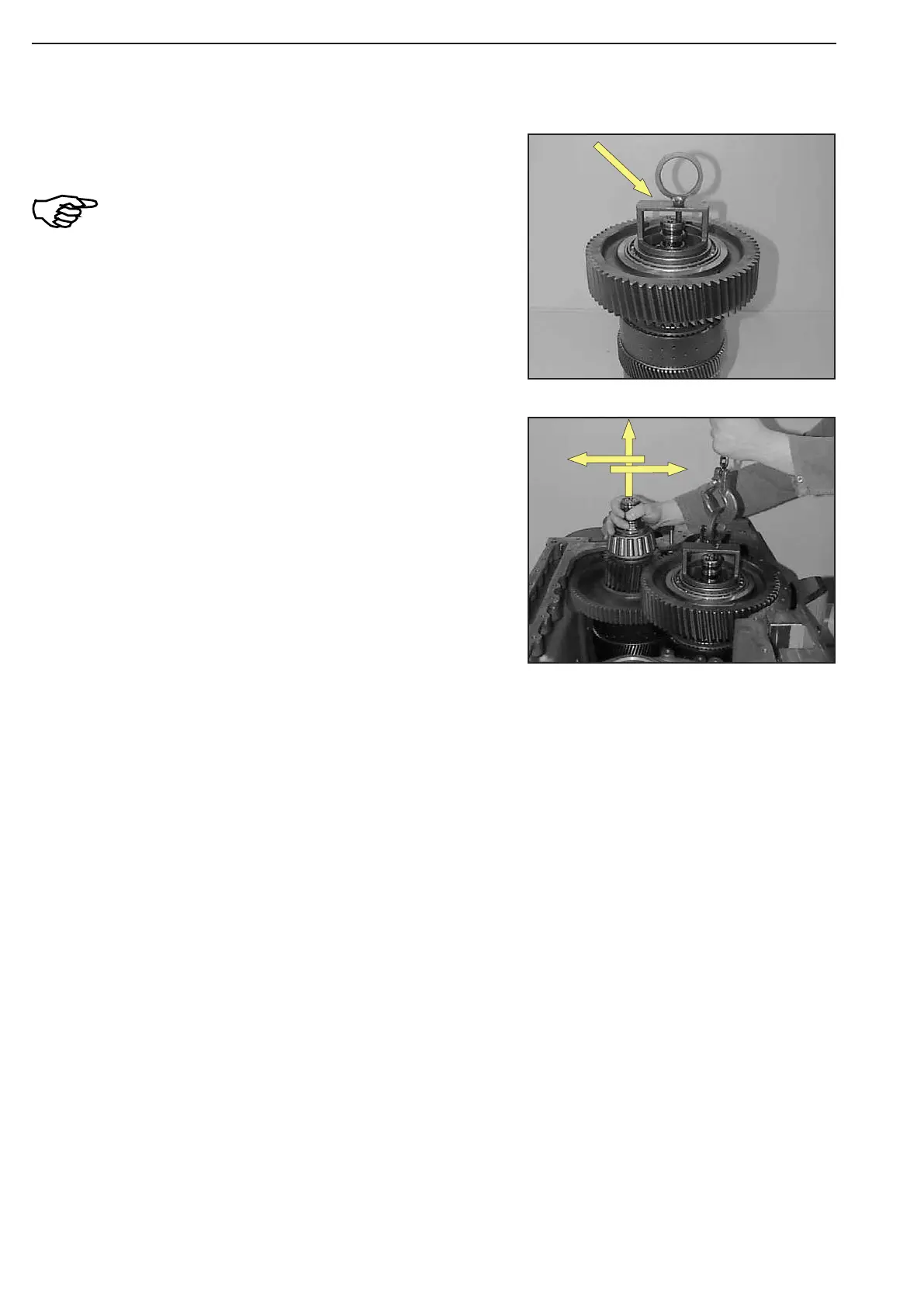

Figure 377
Figure 378
Axially fix spur gear K3 by means of special device and eye bolt
(arrow)-
The spur gear fixing prevents the plates from
slipping off when lifting the clutch into
position.
(S) Assembly device 504208
(S) Eye bolt 504190
Slightly lift clutch KR/K2, shift it into the direction of the arrow and
position clutch K3/K4.
Now, remove special device again.
