TRANSMISSION
Ch 2 page 262 Ch 2 page 263
TRANSMISSION
TRANSMISSION
Ch 2 page 262 Ch 2 page 263
TRANSMISSION

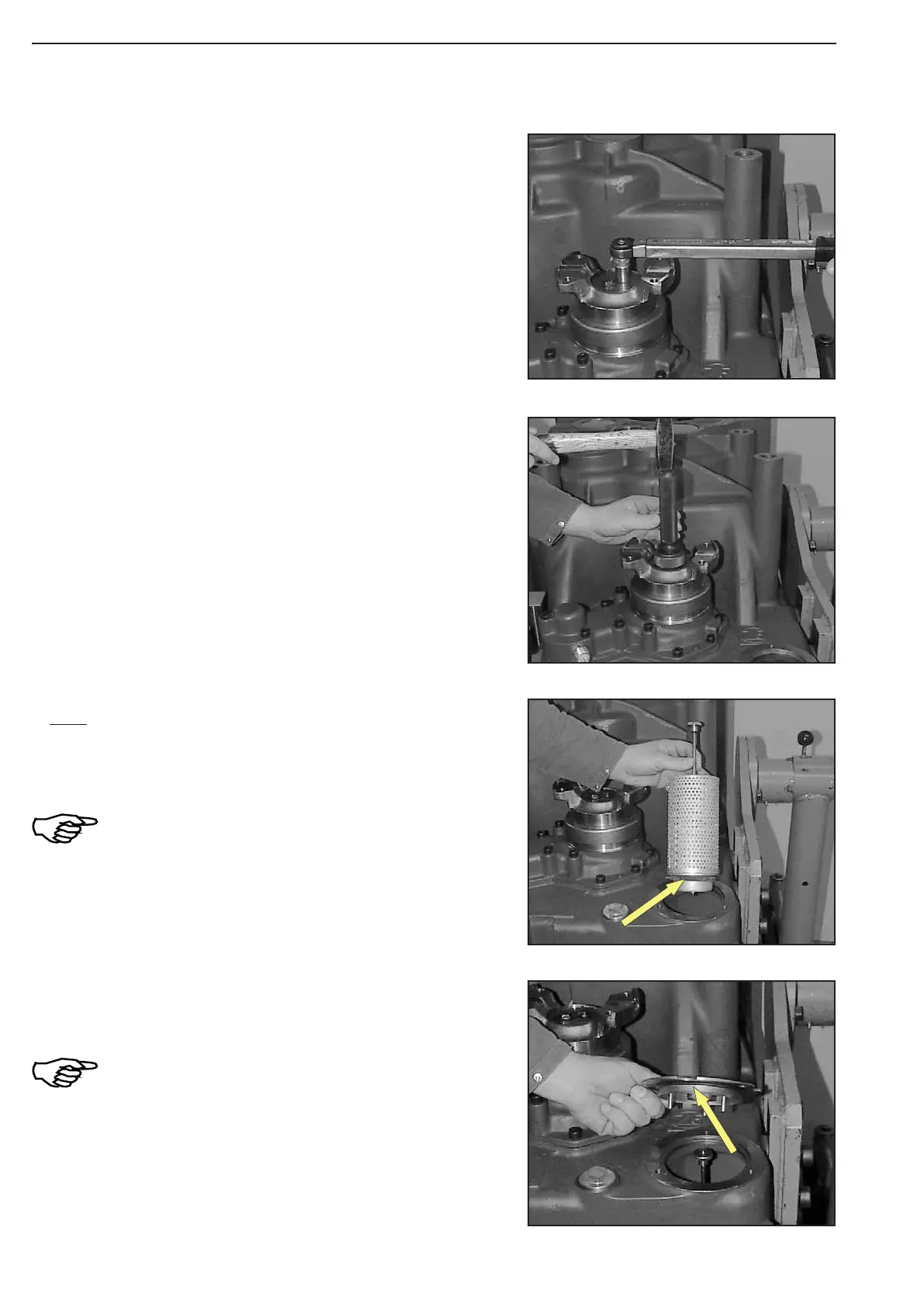

Figure 479
Figure 482
Figure 481
Figure 480
Line up output flange.
Wet contact surface of the disc with sealing compound
(Loctite, type-no. 574) and fasten output flange with hex. head
screws.
Torque limit (M10/8.8) ............. M
A
= 46 Nm
Fasten cover by means of hex. head screws (mount flat wash-
ers)
Install new O-ring (arrow)!
Torque limit (M8/8.8) ................ M
A
= 23 Nm
Filter
Introduce filter (compl.) into the housing bore.
Oil sealing ring (arrow)!
Fix hex. head screws by means of lock plate.
(S) Driver 504167
(S) Handle 504195
