TRANSMISSION
Ch 2 page 260 Ch 2 page 261
TRANSMISSION
TRANSMISSION
Ch 2 page 260 Ch 2 page 261
TRANSMISSION

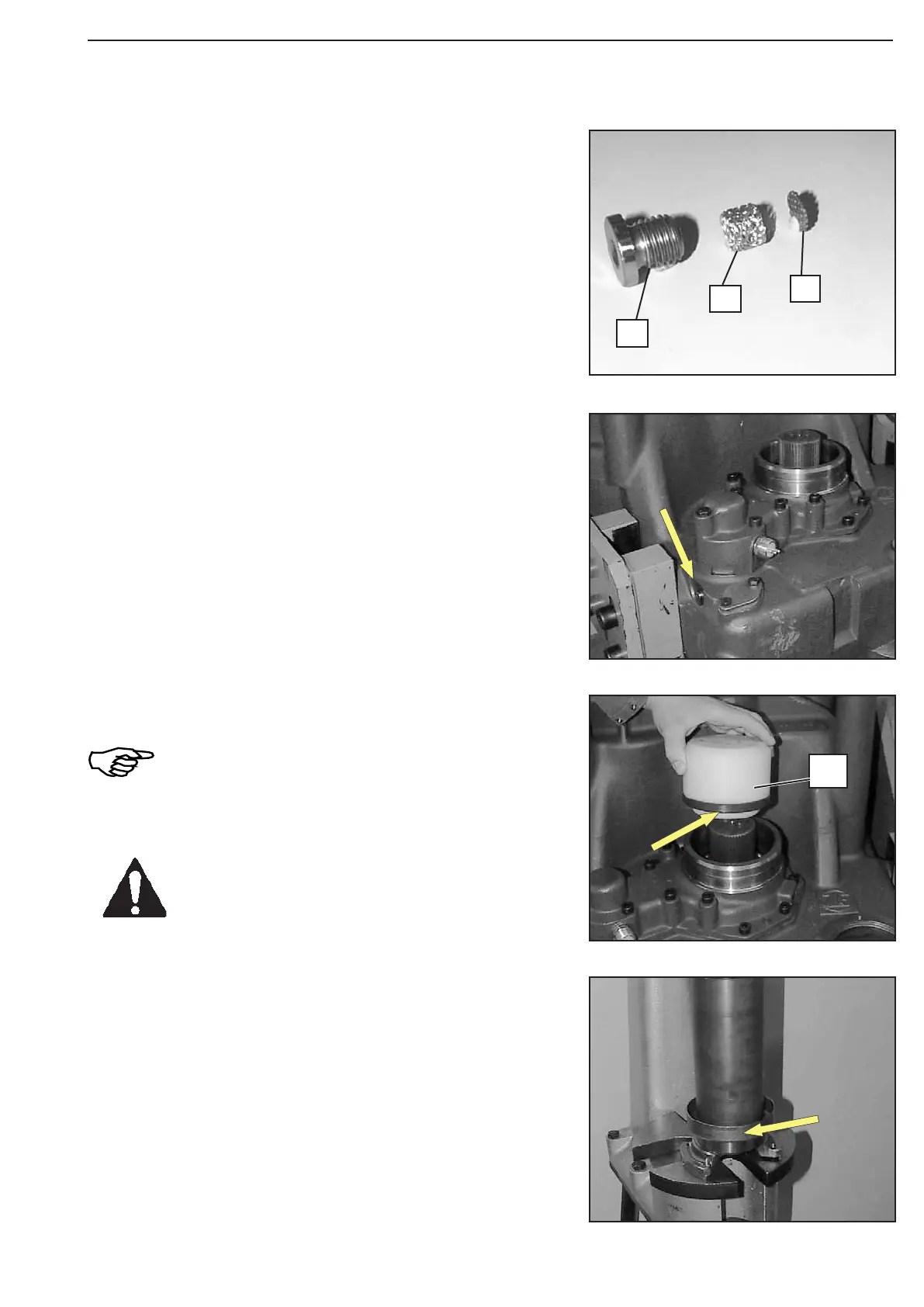

Insert perforated plate (1) and filter insert (2) into the housing
bore (arrow/Figure 476).
Press on screening plate (arrow) until contact is obtained.
(S) Pressure piece 504220
Install shaft seal (arrow) with the sealing lip facing the oil cham
-
ber.
When using the prescribed driver (S) the
exact installation position is obtained!
Grease sealing lip!
(S) Driver 504164
Depending on the version, different shaft
seals may be used.
Outer diameter rubber-coated – wet with
spirit!
Outer diameter metallic – wet with sealing
agent (Loctite, type-no. 574)!
Close bore with a plug up to the assembly of the hydraulic oil
feed (3).
Figure 475
Figure 478
Figure 477
Figure 476
1
3
2
(s)
