TRANSMISSION
Ch 2 page 264 Ch 2 page 265
TRANSMISSION
TRANSMISSION
Ch 2 page 264 Ch 2 page 265
TRANSMISSION

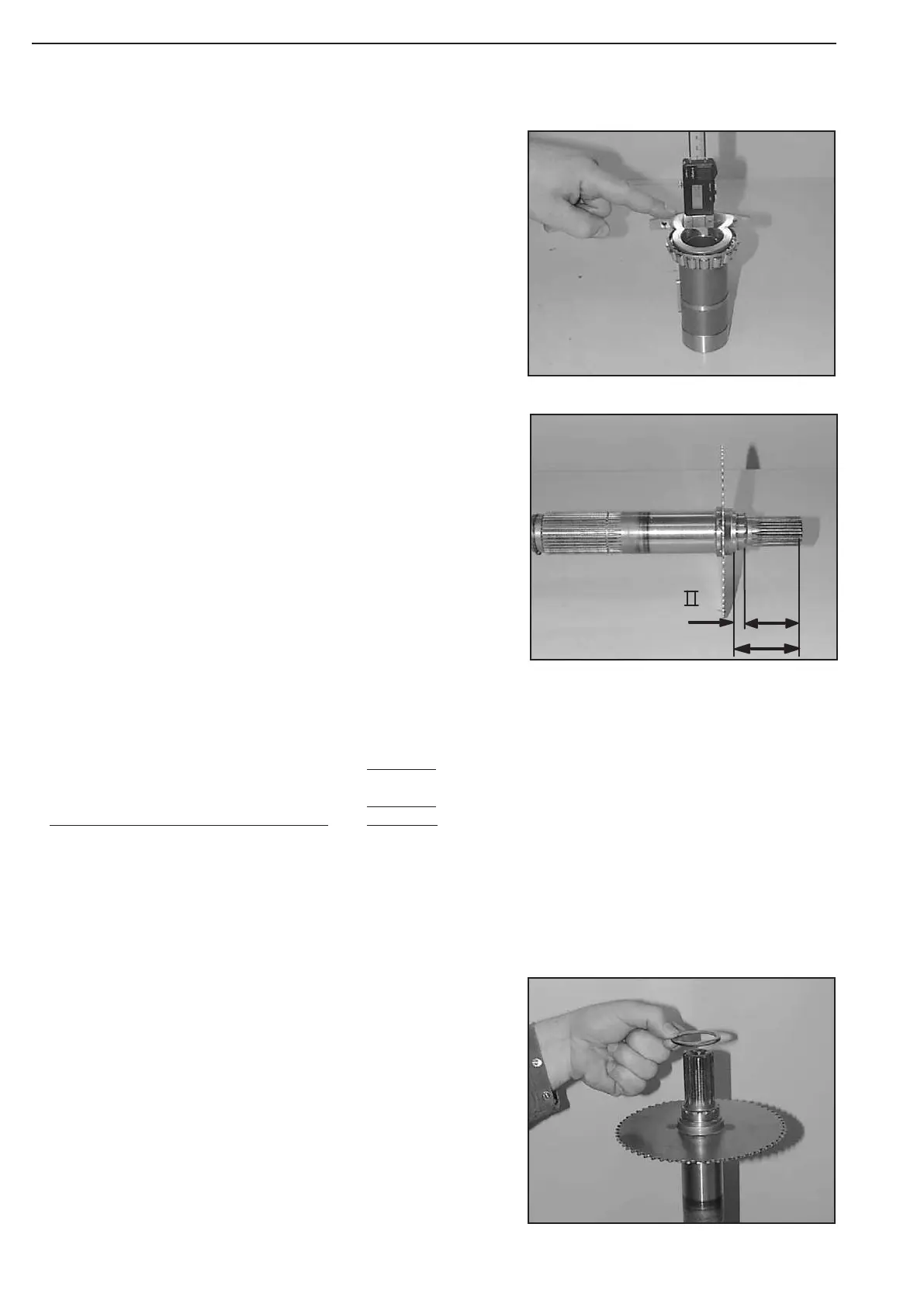

Figure 487
Figure 489
Figure 488
Determine measure I from bearing inner race to end face/driver
Measure I e.g. ........................................ 9,64 mm
CALCULATION EXAMPLE “ J “.
Measure II .............................................. 10,64 mm
Measure I ...............................................
− 9,64 mm
Difference ............................................... = 1,00 mm
Required gap dimension ........................ + 0,50 mm
Gives shim(s) s = 1,50 mm
Line up shim(s).
Determine measure II ( A – B).
Measure II e.g.. .......................................... 10,64 mm
B
A
