TRANSMISSION
Ch 2 page 264 Ch 2 page 265
TRANSMISSION
TRANSMISSION
Ch 2 page 264 Ch 2 page 265
TRANSMISSION

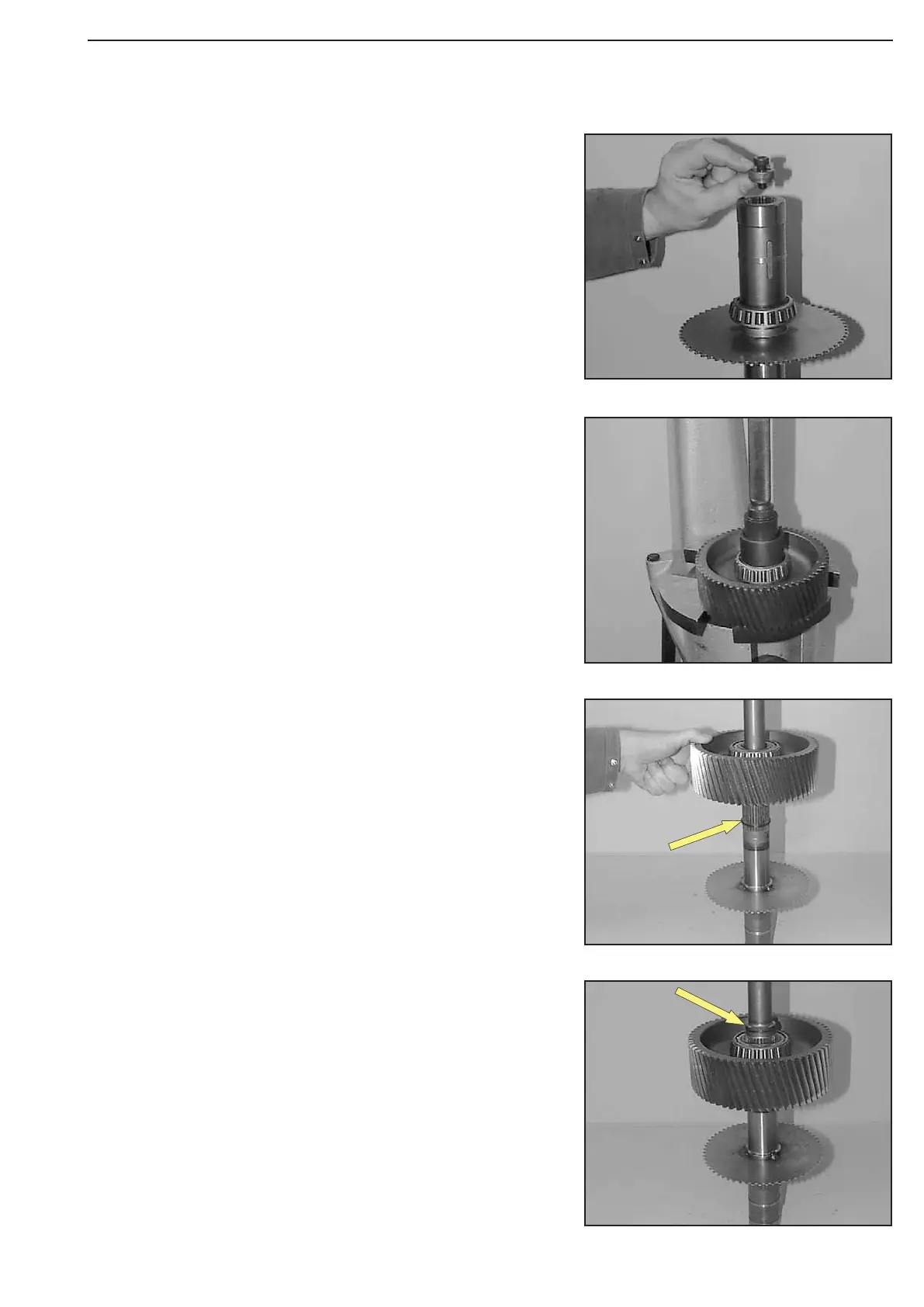

Figure 490
Figure 493
Figure 492
Figure 491
Position driver against shoulder and fix it by means of clamping
disc and socket head screw.
Torque limit (M10/8.8, DIN 6912) ......... M
A
= 32 Nm
Squeeze in rectangular ring (arrow) and engage it.
Squeeze in circlip (arrow) and line up drive gear.
Press on bearing inner race until contact is obtained.
