TRANSMISSION
Ch 2 page 266 Ch 2 page 267
TRANSMISSION
TRANSMISSION
Ch 2 page 266 Ch 2 page 267
TRANSMISSION
Figure 494
Figure 497
Figure 496
Figure 495

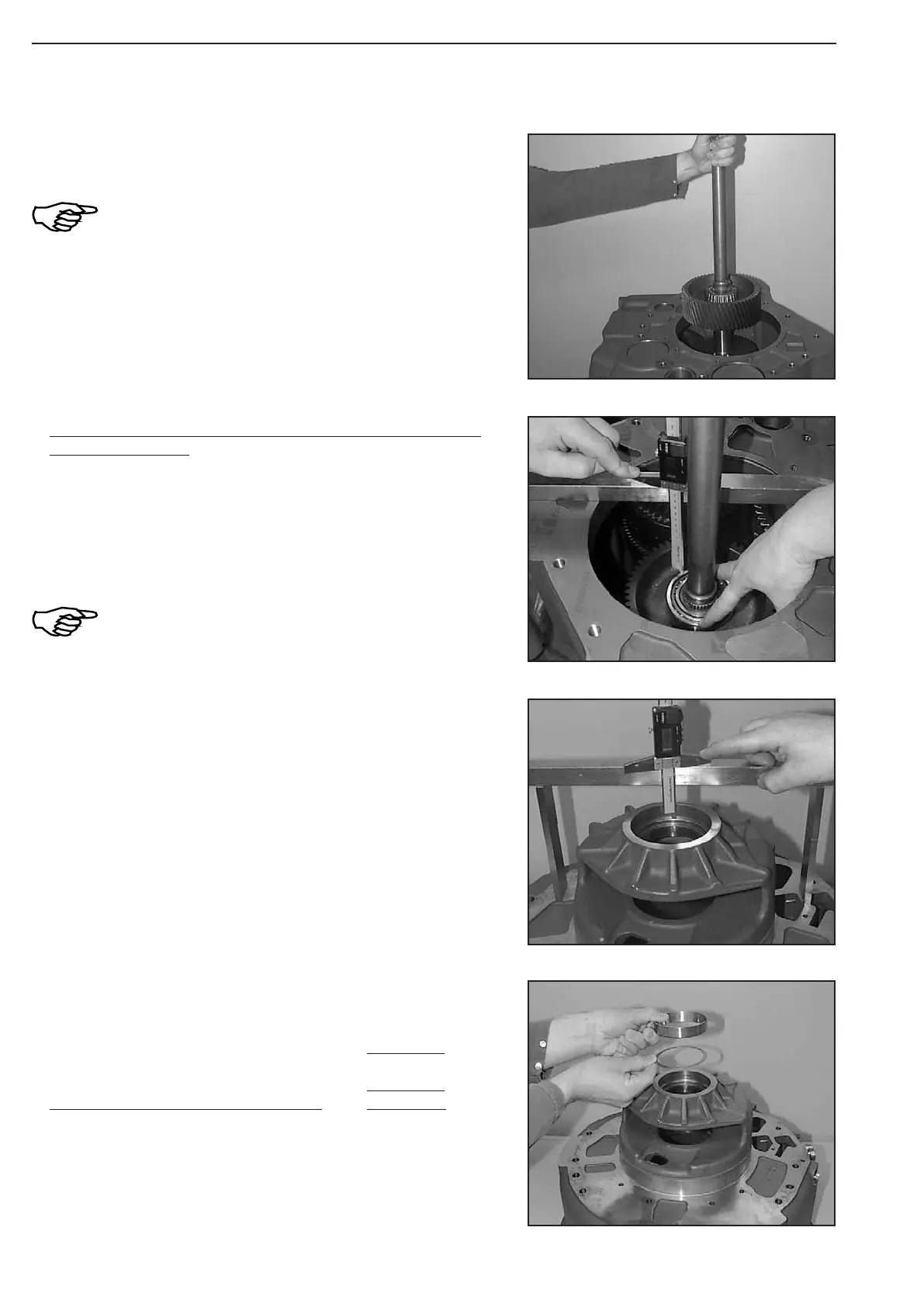

Introduce pre-assembled input shaft until contact is obtained.
Ensure overlapping of the fitting key with the
fitting key groove.
CALCULATION EXAMPLE “ K “:
Measure I e.g. ....................................... 128,50 mm
Measure II e.g. .....................................
− 127,46 mm
Difference ............................................... 1,04 mm
Axial gap e.g. . ................................... − 0,04 mm
Gives shim s = 1,00 mm
Insert shim and position bearing outer race until contact is
obtained.
Determine measure II from mounting face/converter bell to
locating face/bearing outer race
Measure II e.g. ....................................... 127,46 mm
(S) Straightedge 504170
(S) Gauge blocks 504176
Adjust axial gap of the input shaft bearing = 0,0 ... 0,05 mm
(Figure 495 ... 497):
Mount flat gasket.
Mount bearing outer race, uniformly press it on and determine
measure I from the mounting face (gasket) to the bearing outer
race.
Measure I e.g. .......................................... 128,50 mm
Take several measuring points to determine
the average value!
