TRANSMISSION
Ch 2 page 268 Ch 2 page 269
TRANSMISSION
TRANSMISSION
Ch 2 page 268 Ch 2 page 269
TRANSMISSION
Figure 498
Figure 501
Figure 500
Figure 499

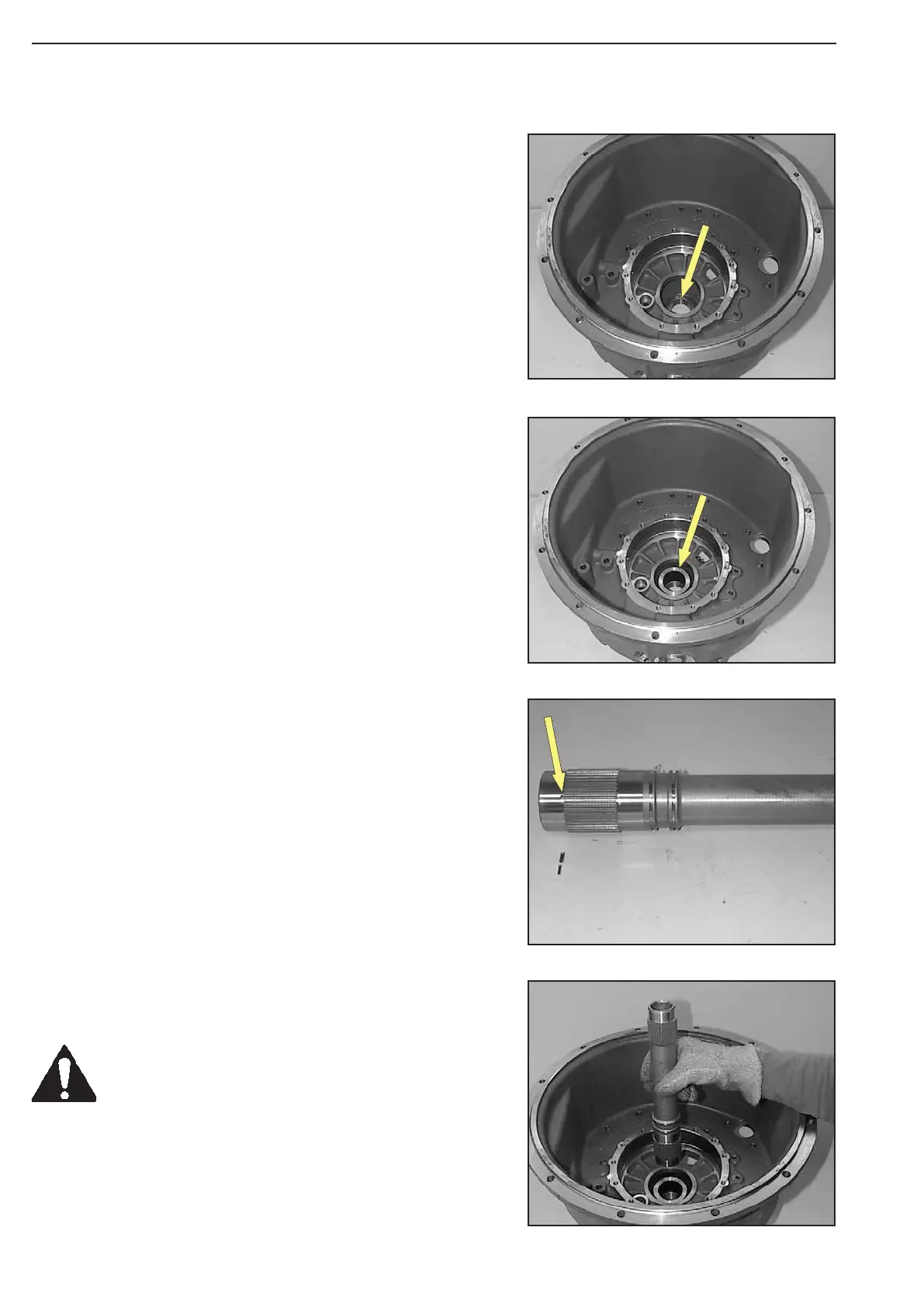

Insert bearing outer race into housing bore until contact is
obtained and install bearing inner race, see arrow!
Supercool the input shaft and introduce it until contact is ob-
tained.
Use protective gloves!
Insert both roll pins (Æ 2,5 and Æ 1,5 mm) flush-mounted into
the bore (arrow) of the input shaft.
Laterally introduce spur gear (arrow) with the long collar show-
ing upwards and bring it into position.
