SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006
SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006
TRANSMISSION
Ch 2 page 268 Ch 2 page 269
TRANSMISSION
TRANSMISSION
Ch 2 page 268 Ch 2 page 269
TRANSMISSION

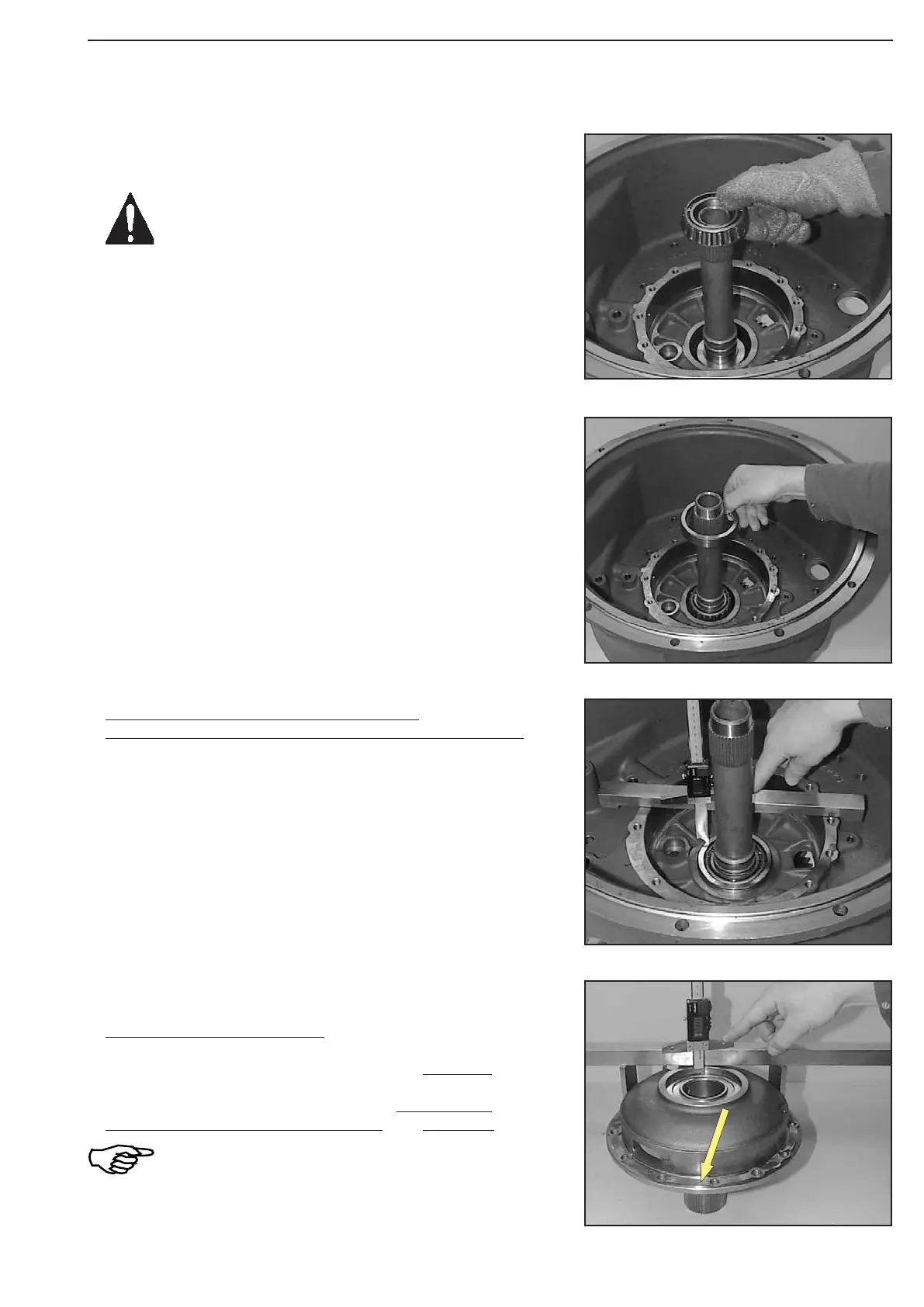

Figure 502
Figure 505
Figure 504
Figure 503
Heat up bearing inner race and line it up until contact is ob-
tained.
Use protective gloves!
CALCULATION EXAMPLE “ L “:
Measure I ................................................. 59,60 mm
Measure II ............................................ − 58,50 mm
Difference ............................................. = 1,10 mm
Axial gap (0,03 ... 0,07) e.g. ........... − 0,05 mm
Gives shim s = 1,05 mm
Installation of the shim, see Figure 508 !
(S) Gauge blocks 504174
(S) Straightedge 504180
Mount gasket (arrow) and determine measure II from mounting
face to locating face of bearing outer race.
Measure II e.g.. ....................................... 58,50 mm
Adjust axial gap of the drive gear bearing
= 0,03 ... 0,07 mm (Figure 504 ... Calculation example):
Determine measure I from mounting face to bearing outer race.
Measure I e.g.. ......................................... 59,60 mm
(S) Straightedge 504180
(S) Digital depth gauge 504175
Position bearing outer race against shoulder.
