TRANSMISSION
Ch 2 page 270 Ch 2 page 271
TRANSMISSION
TRANSMISSION
Ch 2 page 270 Ch 2 page 271
TRANSMISSION
Figure 506
Figure 509
Figure 508
Figure 507

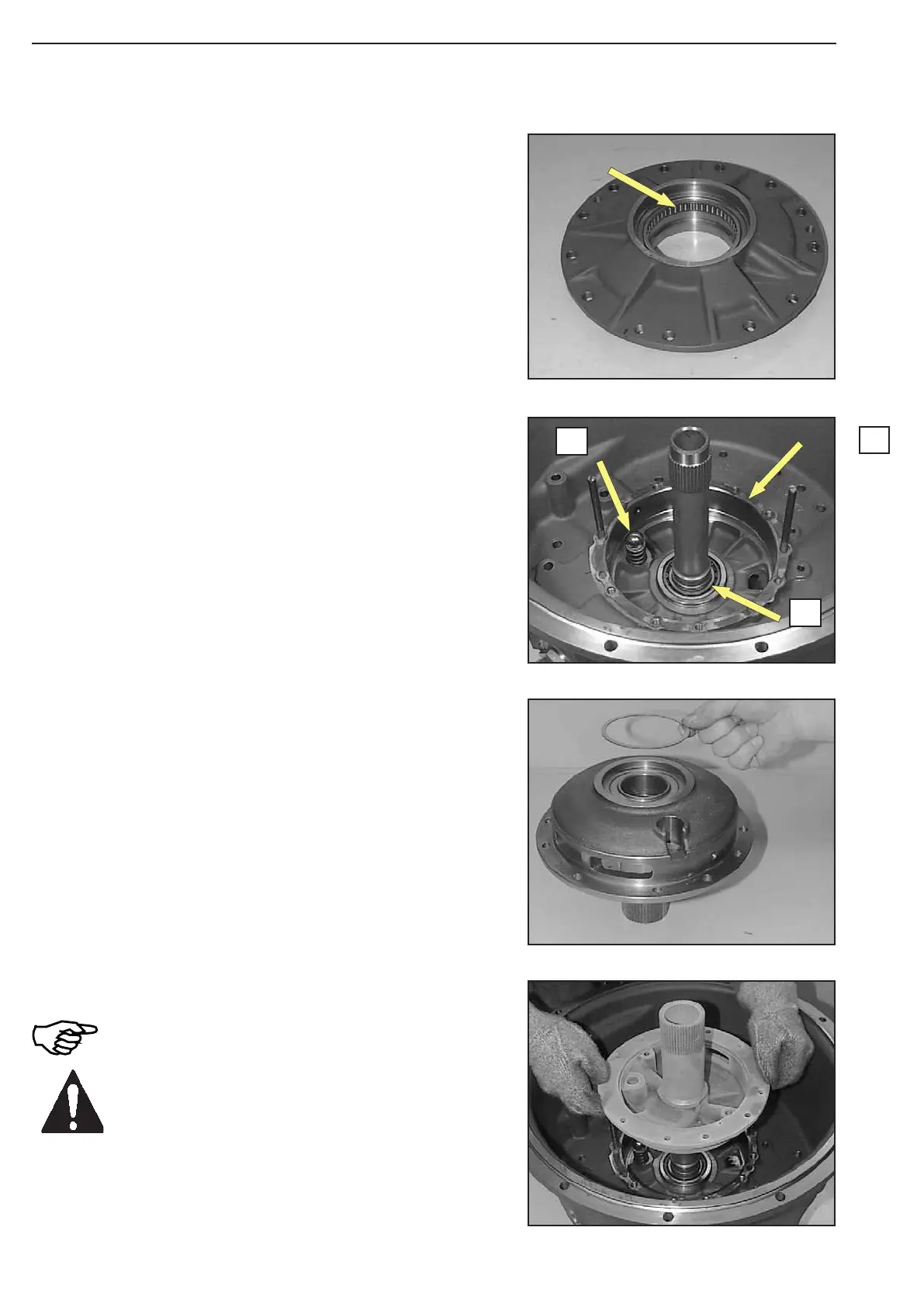

Insert needle sleeve (arrow) with the reinforced shell facing the
pressing-in tool until contact is obtained.
(S) Driver 504169
(S) Handle 504195
Introduce supercooled oil feed flange until contact is obtained.
Observe the radial installation position!
Use protective gloves!
Supercool oil feed flange (about - 80° C) and make shim s =
1,05 mm (see calculation example page 3.99) adhere in the
bearing bore using assembly grease.
Install two adjusting screws and mount gasket (arrow 1).
Install converter safety valve (disc, compression spring and
ball), see arrow 2.
Squeeze both rectangular rings into the annular grooves of the
input shaft and engage them (arrow 3).
Now, grease rectangular rings and centrically align them.
(S) Adjusting screws 504184
1
3
2
