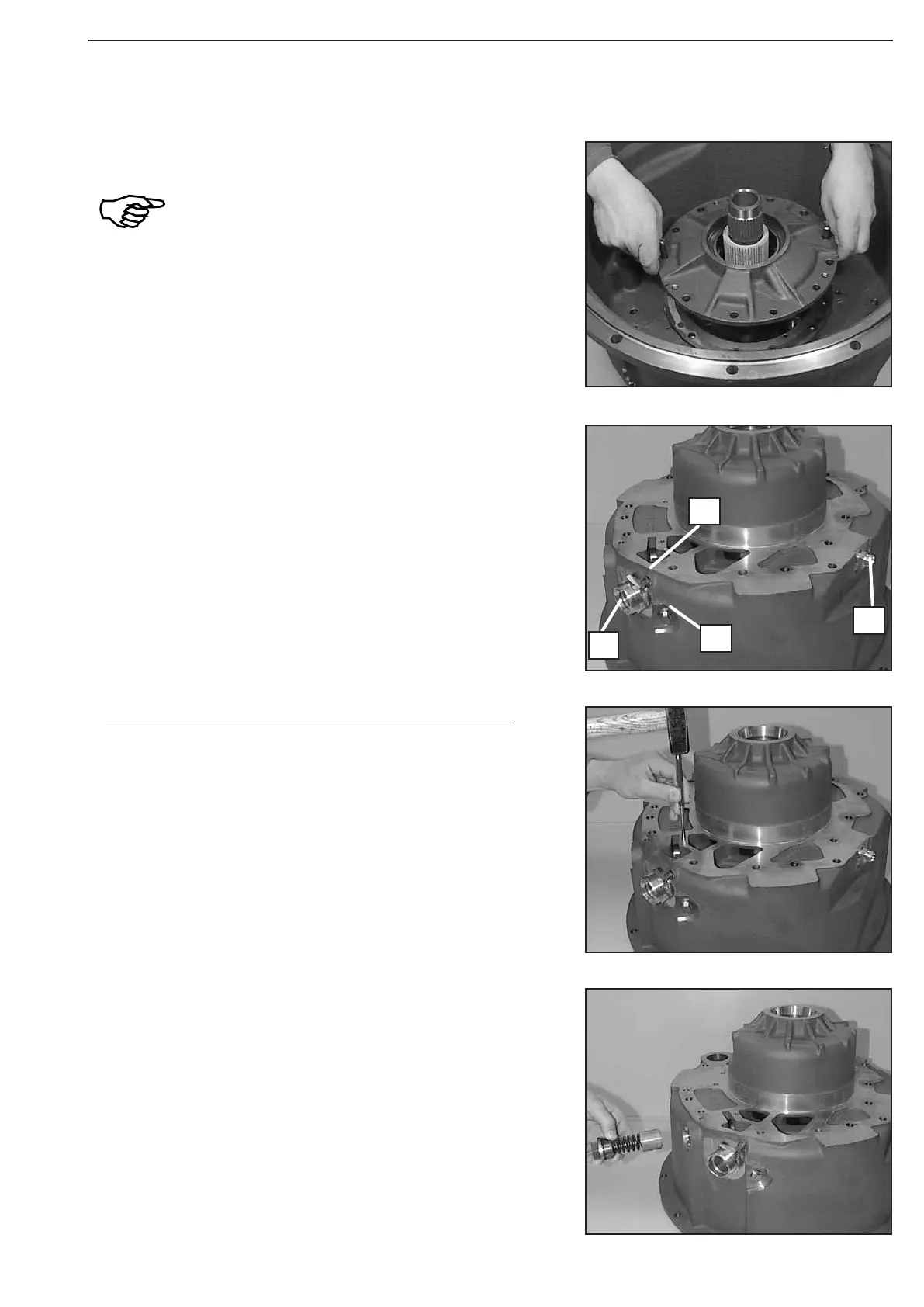

Mount flat gasket (arrow) and install bearing cover
Observe radial installation position!
Torque limit (M10/8.8) ............. M
A
= 46 Nm
Introduce piston and compression spring.
Provide screw plug with new O-ring and install it.
Torque limit ................ M
A
= 130 Nm
Converter pressure back-up valve (Figure 512 and 513):
Drive in roll pin (6 x 50 mm) until contact is obtained.
Wet thread of the screw-in sleeves (1 and 2) with Loctite type-
no. 262 and install the two screw-in sleeves
Provide screw plug (3 and 4) with new O-rings and install them.
Torque limit (10x1) .................. M
A
= 25 Nm
Torque limit (M14x1,5) ............ M
A
= 35 Nm
Figure 510
Figure 513
Figure 512
Figure 511
1
3
4
2
1
