TRANSMISSION
Ch 2 page 272 Ch 2 page 273
TRANSMISSION
TRANSMISSION
Ch 2 page 272 Ch 2 page 273
TRANSMISSION
Figure 514
Figure 517
Figure 516
Figure 515

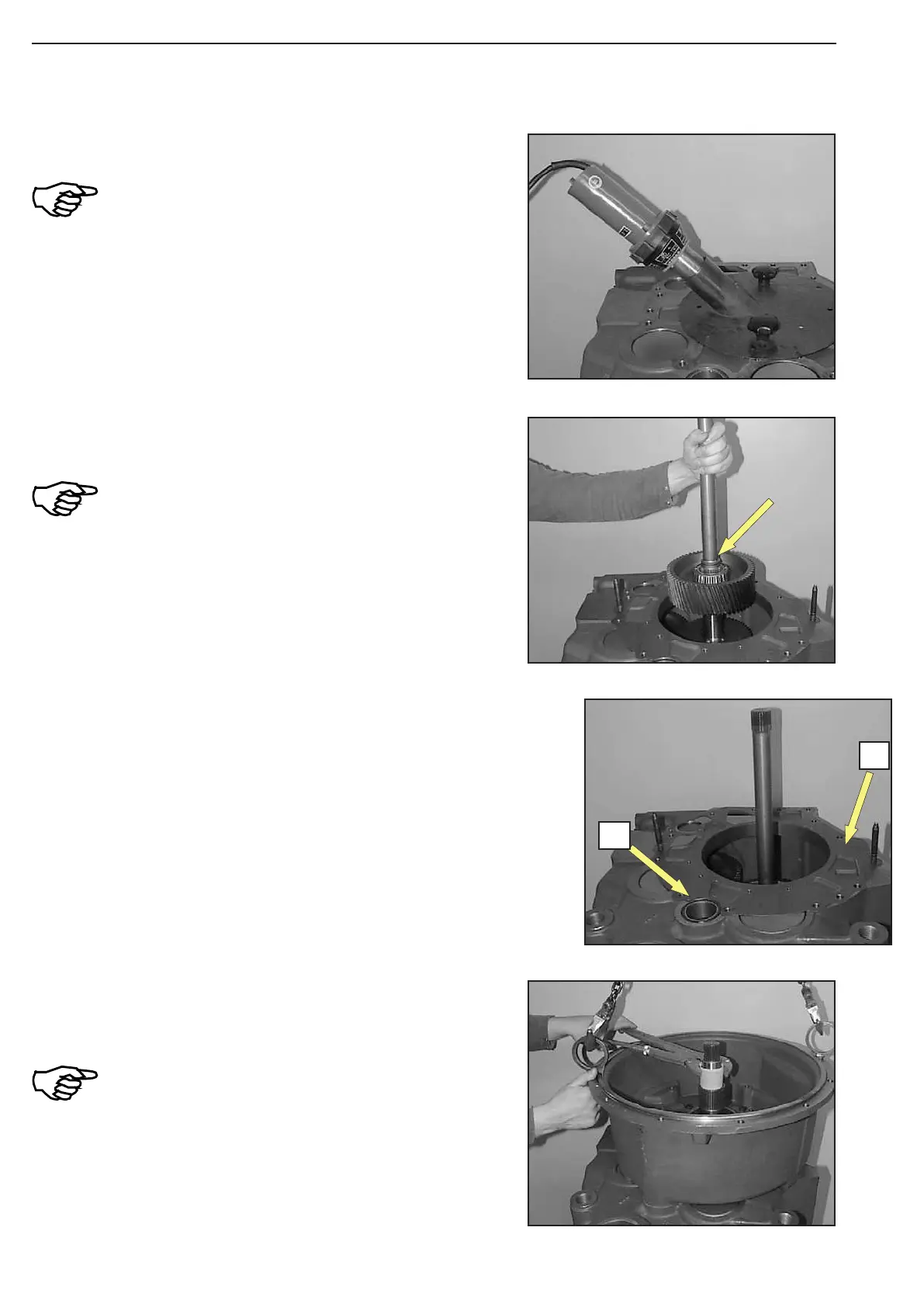

Remove input shaft and heat housing bore (about 120° C).
Perform the following steps (Figure
515 ... 517) in direct chronological order!
(S) Preheating sleeve 504229
(S) Hot-air blower 220V 504193
(S) Hot-air blower 110 V 504194
Introduce converter bell by means of lifting device until contact
is obtained.
Slight rotary movements of the input shaft
will facilitate introducing.
Protect the splines against damage!
Pay attention to the radial installation
position.
(S) Lifting device 504198
(S) Set of eye bolts 504182
Install two adjusting screws and mount flat gasket (arrow 1).
Insert O-ring (arrow 2) into the annular groove.
(S) Adjusting screws 504186
Grease rectangular ring (arrow) and centrically align it.
Introduce input shaft until contact is obtained.
Ensure overlapping of the fitting key with the
fitting key groove.
1
2
