TRANSMISSION
Ch 2 page 272 Ch 2 page 273
TRANSMISSION
TRANSMISSION
Ch 2 page 272 Ch 2 page 273
TRANSMISSION
Figure 518
Figure 521
Figure 520
Figure 519

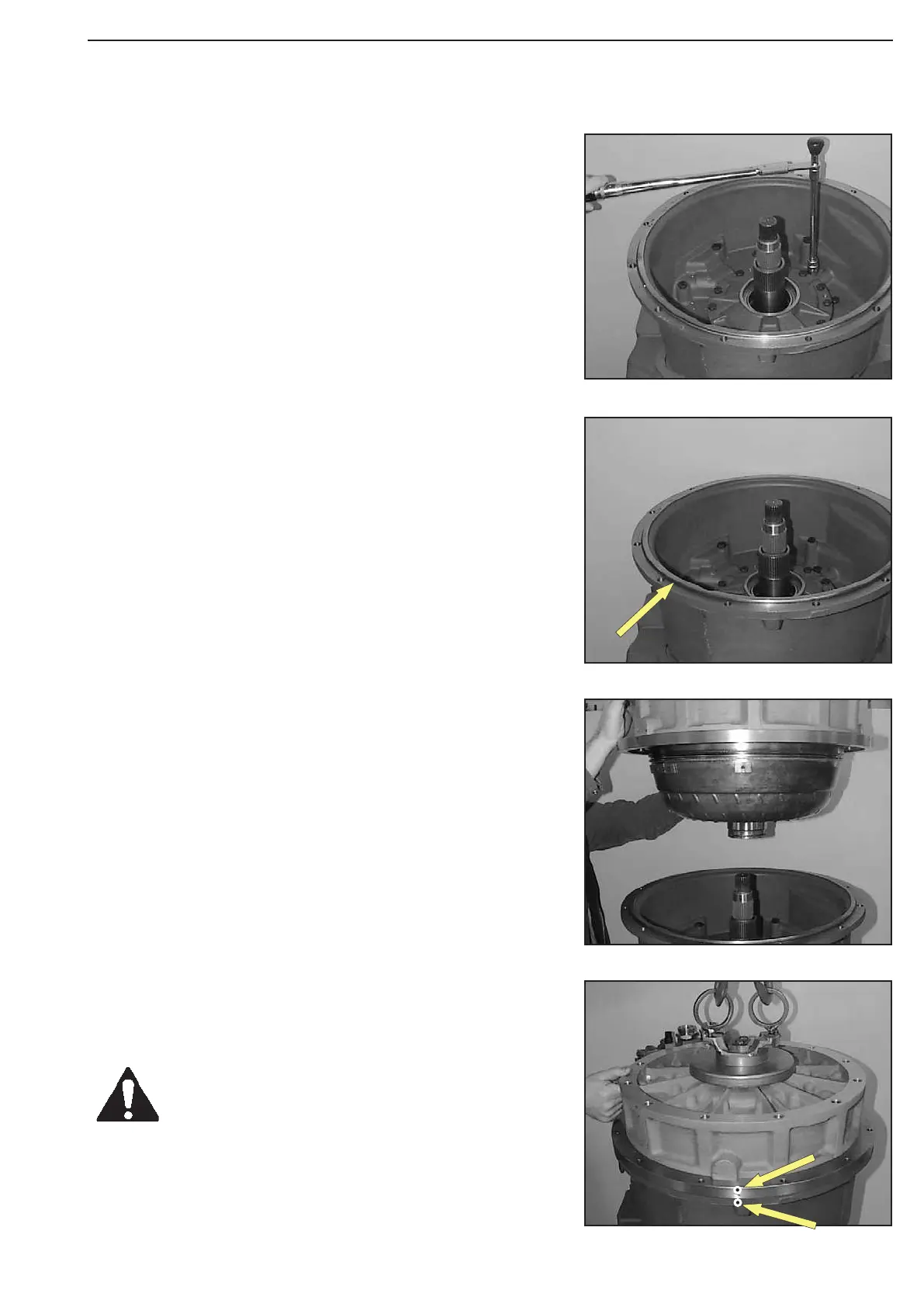

Fasten converter bell by means of hex. head screws.
Torque limit (M8/10.9) .................. M
A
= 34 Nm
Torque limit (M12/10.9) ................ M
A
= 115 Nm
Introduce retarder along with converter against shoulder, using
lifting device and fasten it by means of hex. head screws
Pay attention to the radial installation
position!
Binding are the speciļ¬cations of the
vehicle manufacturer resp. The marking
applied upon disassembly.
(S) Lifting device 504198
(S) Set of eye bolts 504182
Grease rectangular ring (arrow) and centrically align it.
Insert O-ring (arrow) into the annular groove of the converter
bell.
1
2
