TRANSMISSION
Ch 2 page 274 Ch 2 page 275
TRANSMISSION
TRANSMISSION
Ch 2 page 274 Ch 2 page 275
TRANSMISSION

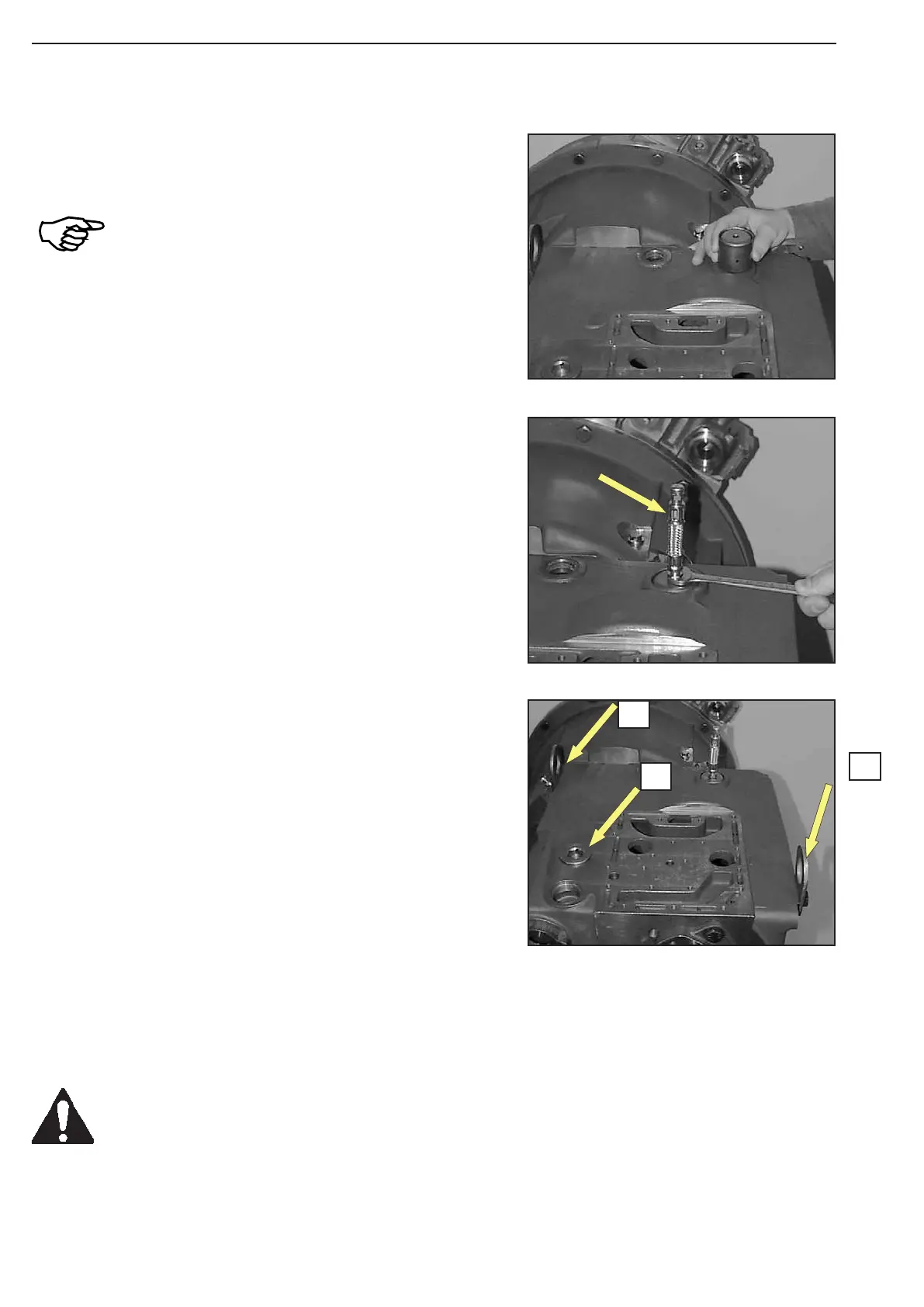

Figure 522
Figure 524
Figure 523
Tilt gear 90°.
Insert pot flush-mounted to the housing face.
Wet sealing surface with
Loctite (type-no. 262)!
Mount hydraulic control unit (HSG-94),
see page 1.09 ... 1.12 !
Install all oil lines.
The line routing is different depending on the
design!
Here, pay attention to the perspective
illustration in the respective spare parts list
Provide screw plug (arrow 1) with new O-ring and install it.
Mount both retaining plates (arrow 2).
Install breather (arrow).
1
2
2
