Figure 603
Figure 606
Figure 605
Figure 604

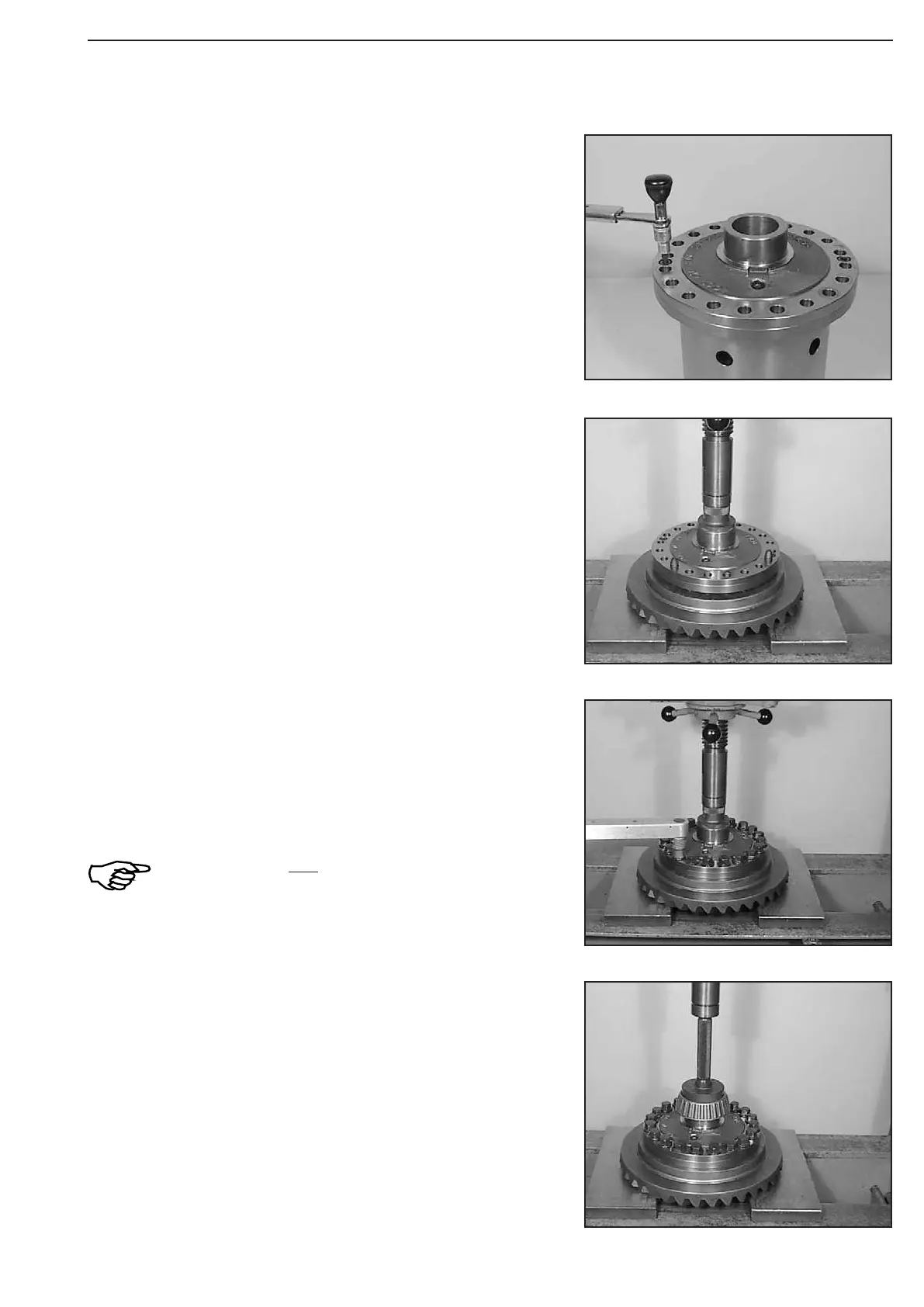

Fix housing cover with two socket head screws.
Torque limit (M10/8.8) ................................ 46 Nm
Press crown wheel-side as well as opposite bearing inner race
against shoulder.
Locate differential by means of press.
Screw crown wheel, differential housing and housing cover to-
gether.
Torque limit ....................................... 385 Nm
(Locking screws M16x1,5/12.9)
Only use of new locking screws permitted !
Install adjusting screws (3 pieces) and press differential into the
crown wheel until contact is obtained.
(S) Adjusting screws 504722
