TRANSMISSION
Ch 2 page 300 Ch 2 page 301
TRANSMISSION
TRANSMISSION
Ch 2 page 300 Ch 2 page 301
TRANSMISSION
Figure 607
Figure 610
Figure 609
Figure 608

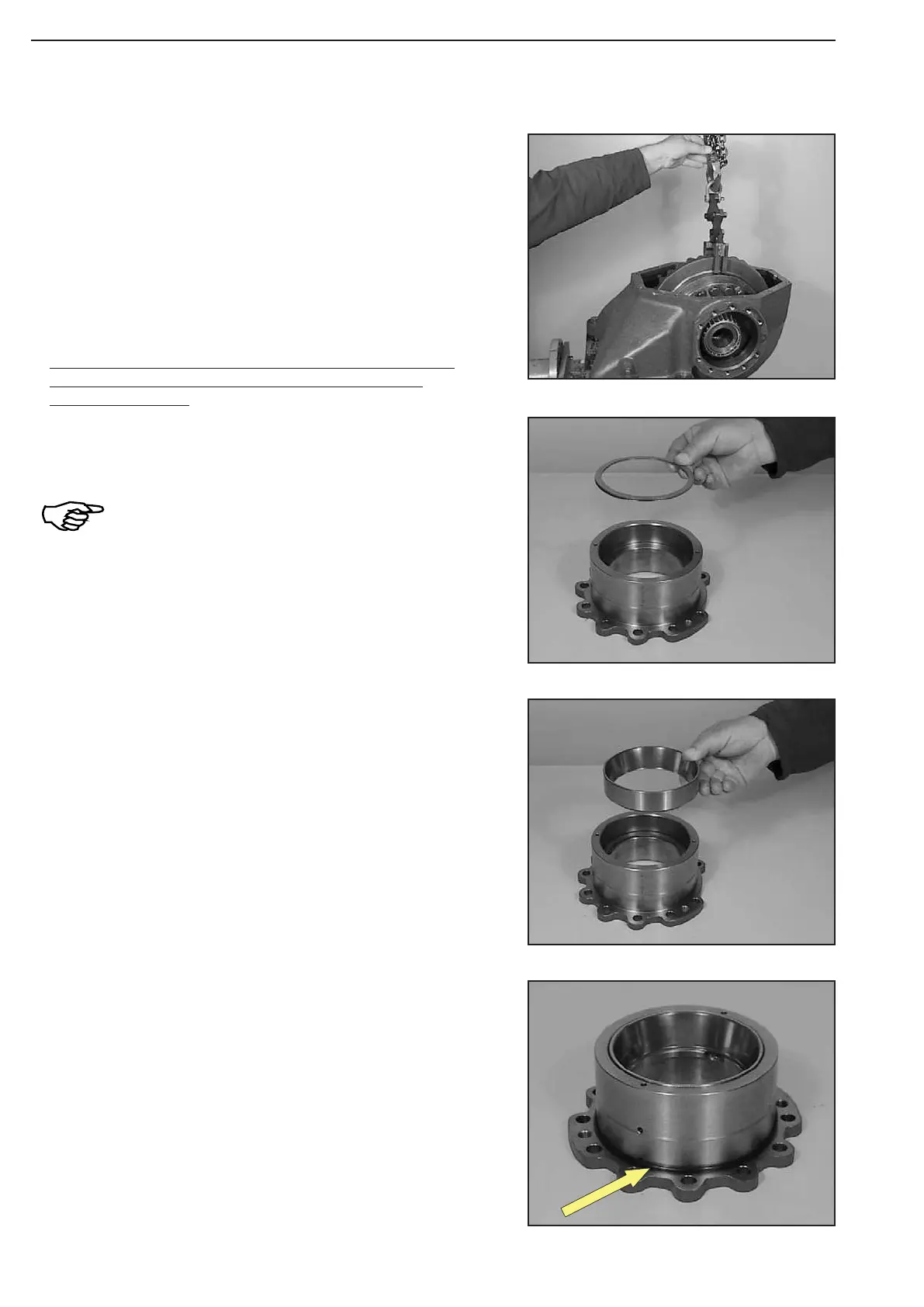

Insert the differential into the axle drive housing, using lifting de-
vice.
(S) Gripper tongs 505155
Install O-ring (Arrow).
Introduce bearing outer race.
Insert shim e.g. s = 2,40 mm into the bearing cover I (crown wheel
side).
The two bearing covers of the differential
bearing are different ! In this connection, pay
attention to the markings applied at the
diasassembly ! We know from experience,
that the required backlash is obtained if the
shim (e.g. s = 2,40 mm), found at the
disassembly is used !
However, the later check of the backlash is
imperative !
Adjust Backlash – Bevel gear set 0,20 ... 0,30 mm and
Bearing rolling moment – Differential T = 3 ... 4 Nm
(Figure 608 ... 619):
