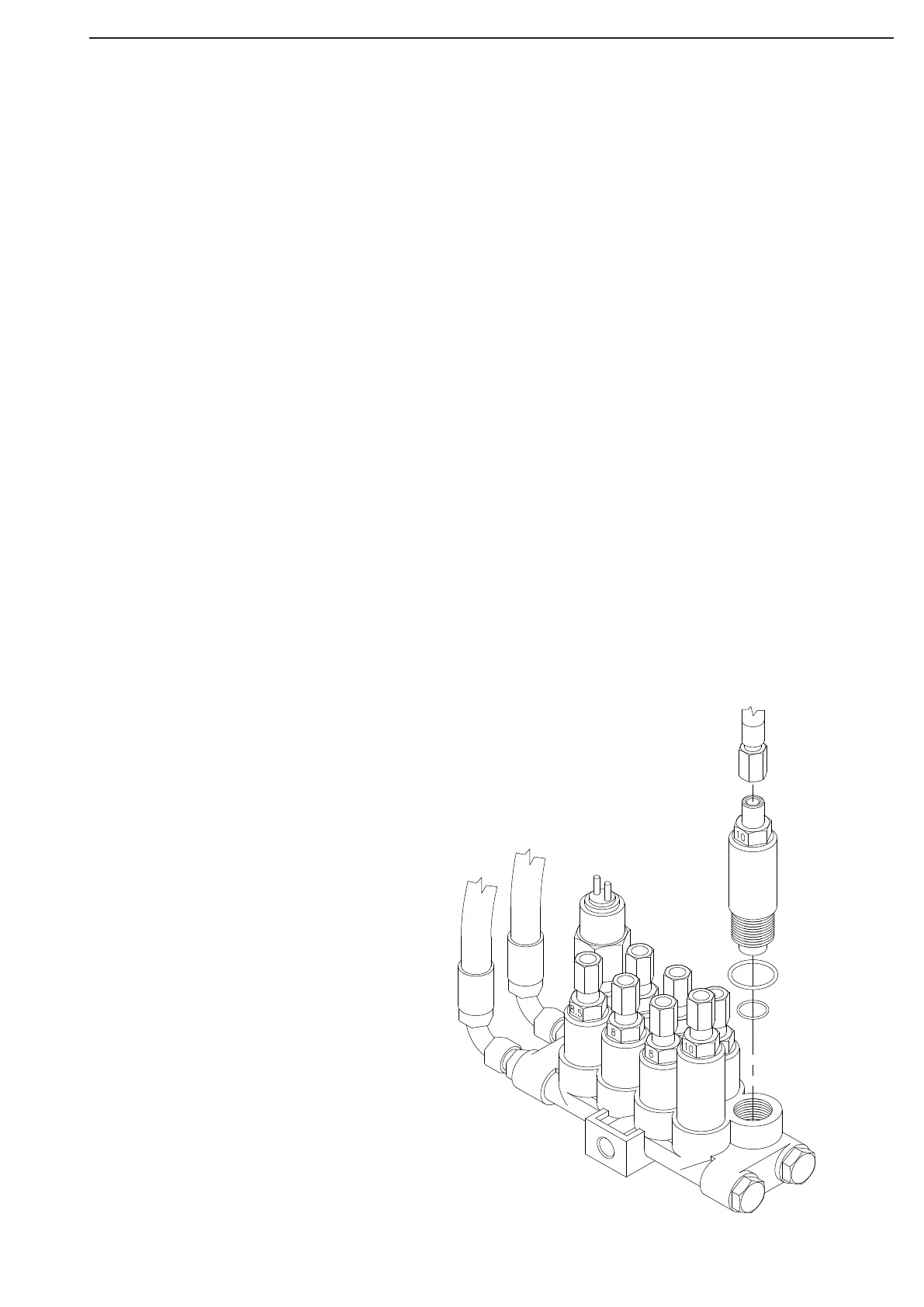

Fig 9.6 Metering Block (No. 3 shown)
Grease Lines
from Metering
Block No. 2
Metering
Unit
No. 10
Grease
Line to
Left
Tandem
Bearing
Metering
Block
O-rings
9.2.2 Lubrication Lines
The lubrication lines distribute the media from the lubrication unit to the doser blocks and from the dosers to
each lubrication point.
Removal
Thoroughly clean the actual line and the area around for any accumulated dirt.
Disconnect the electrical connection to the lubrication unit to make sure no one activates the system.
Remove all clamps and strips from actual line, and disconnect from system.
Installation
Connect the line to the connection nearest the lubrication unit, reconnect the electrical connector to the lubrica-
tion unit, and perform test cycles until grease is flowing from the free end of the line.
Connect free end, and secure line with clamps and strips as removed.
Control
Check that all parts are located as when removed.
Perform two single test cycles to check the function of the system, and to look for any leakage.
Metering Blocks consists of a body in which several metering units are connected. Each unit is connected to a
lubrication point, and delivers exact the amount of grease needed for that point during each cycle.
Removal
Thoroughly clean the metering block and the area around for any accumulated dirt.
Disconnect the electrical connection to the lubrication unit to make sure no one activates the system.
Disconnect the lubrication line connected to the actual metering unit.
Unscrew the unit from the block.
Installation
If the doser is going to be replaced with a
new unit, make sure the new doser is of the
same type as the one removed.
Check that the number punched in is the
same as the number on the one removed.
The number is referring to the amount of
grease delivered pr. cycle.
Check the condition of the O-rings, Re-new
if necessary.
Screw the doser firmly into the metering
block.
Reconnect the electrical connector to the
lubrication unit, and perform test cycles
until grease is flowing from the metering
unit.
Connect the lubrication line.
Control
Check that all parts are located as
when removed.
Perform two single test cycles to check
the function of the system, and
to look for any leakage.
9.2.3 Metering Block
