OPTIONAL EQUIPMENT
CH 9 PAGE 8
CH 9 PAGE PB
OPTIONAL EQUIPMENT
The hydraulic tilting unit makes tilting of cab safe and easy, by means of a manual hydraulic pump and cylin-
der.
Removal
Thoroughly clean the cab tilting unit and the area around for accumulated dirt.
Tilt the cab and place on safety stand. (Ref. Operation & Maintenance Manual 2.20)
Cylinder
Remove the nuts from the bolts securing the hydraulic cylinder. Use the manual pump to adjust the cylinder to
a position where the bolts easily can be removed.
Unscrew the nuts securing the bolts.
Place a container below to catch any hydraulic oil spilt during removal.
Disconnect the two hydraulic hoses. Remove the bolts, and remove the cylinder.
Pump
Place a container below to catch any hydraulic oil spilt during removal. Disconnect the two hydraulic hoses.
Unscrew the two bolts securing the pump to the bracket and remove pump.
To remove the hydraulic hoses remove securing strips and clamps, and pull out.
Installation
Position the pump in the mounting bracket, and secure with two bolts.
Route and strap the hoses as when removed, and connect them to the pump.
Secure front end of cylinder to the front frame, and connect the hoses.
Fill pump with oil. (Ref. Operation & Maintenance Manual 6), and bleed the system.
Check that the movement of the cylinder is according to marking (Up/Down)
Adjust cylinder length to align with the cab bracket, install bolt and nut and tighten.
Control
Check that all parts are located as before removal.
Rise the cab to remove safety stand, and lower to normal position.
(Ref. Operation & Maintenance Manual 2.20)

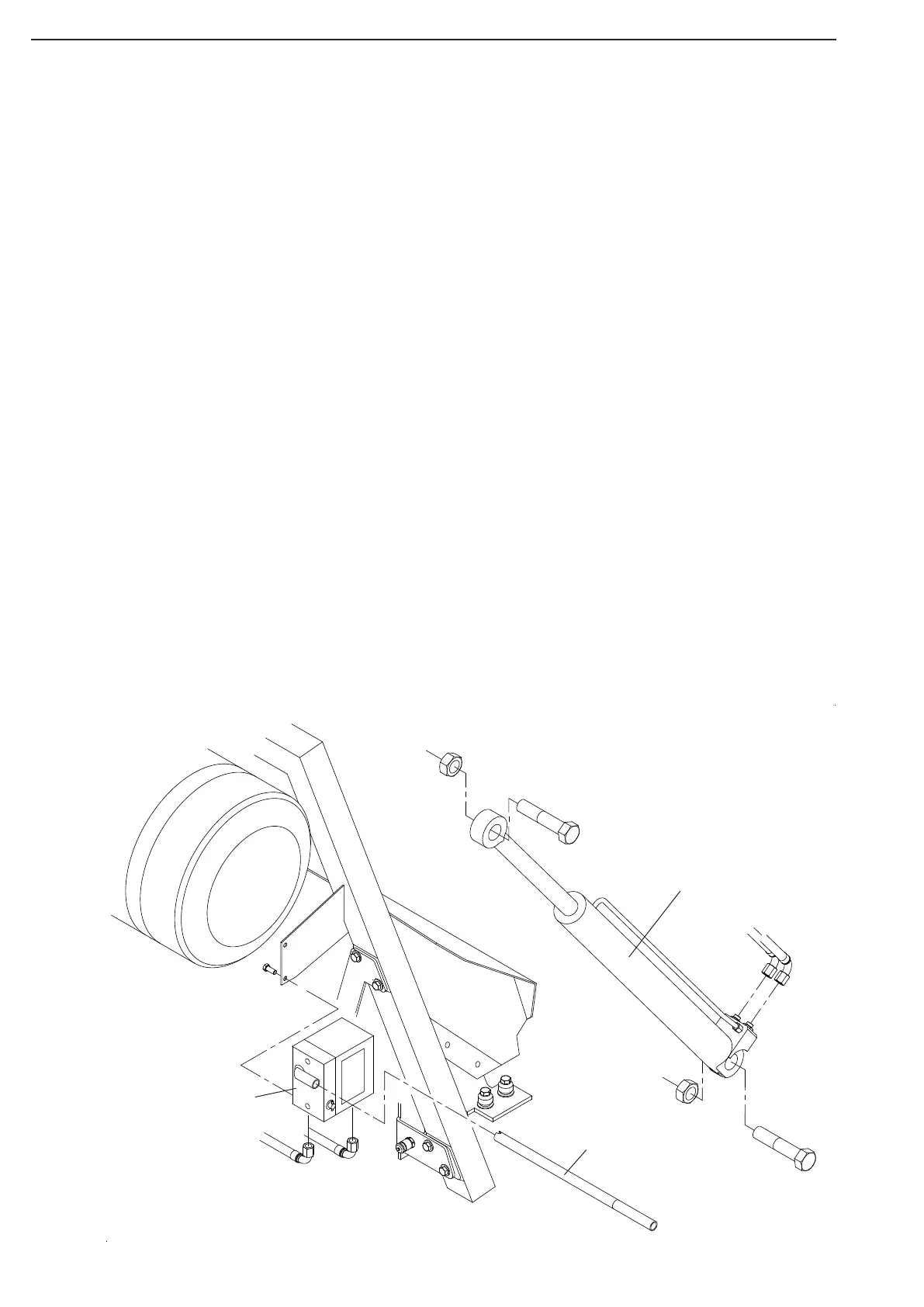

Fig 9.7 Cab Hydraulic Tilting Unit
Hand
Pump
Cab Tilting
Cylinder
Lever
9.3 Cab Hydraulic Tilting Unit
