3-113

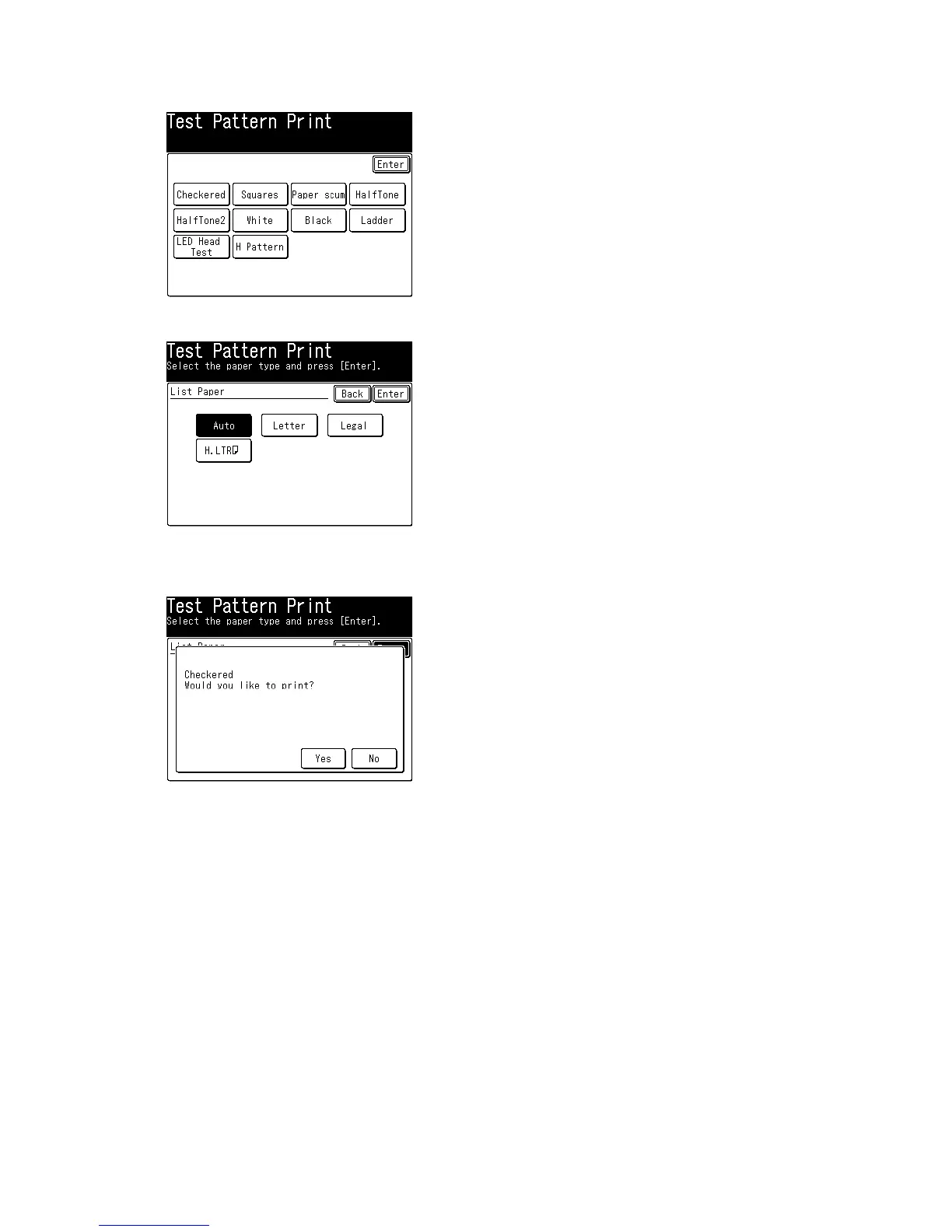

1. Press <Setting>, <*>, <0>, <9>, then select [Test Pattern Print].
2. Select the desired pattern is displayed.
3. Select the paper size to test.
4. Press [Enter].
5. Press [Yes]
.
The selected pattern will be printed continuously.
Note:
Press <Stop> to stop printing.
6. To select another pattern, repeat the steps 1 to 4.
