4.12 The Image Quality Problems
The following provides guidelines for troubleshooting the printer engine and actions to be taken. Before
removing any portions of the machine or making any internal adjustments, be sure power to the unit is OFF.
Suggested corrective actions should be performed in order as listed. Most conditions can be corrected by
performing routine preventative maintenance steps. If printer or print quality problems occur, check the
following.
The unit:
1. Should have the power cord correctly connected.
2. Should be connected to a power source which is rated to machine specifications.
3. Should be installed on a flat, level surface.
4. Should receive good ventilation.
5. Should not be connected to an electrical circuit with other equipment or where voltages may vary.
6. Should not be installed near a direct heating or cooling source or vent.
7. Should not be exposed to high dust concentration.
8. Should not be exposed to direct sunlight
9. Should not be exposed to high temperatures, high humidity, steam or chemical fumes.
4.12.1 Blank pages

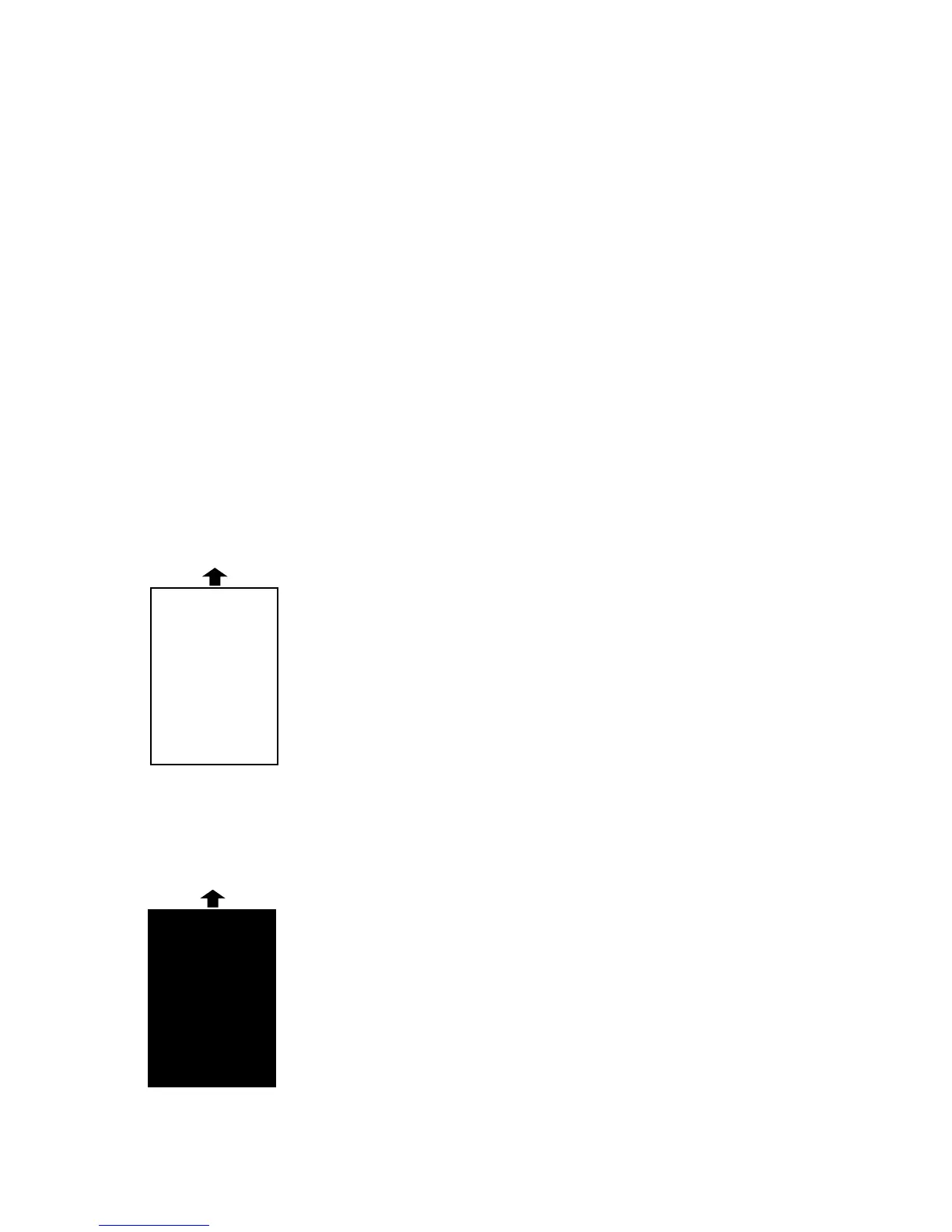

Symptom: Page is solid white.
Poor development
• The drum cartridge or toner cartridge may be not installed correctly. Install
each cartridge correctly.
• Replace the Toner cartridge.
Improper LED exposure
• Replace the LED Print Head Unit.
• Replace the Main Control PCB.
Improper charging
• Replace the High Voltage Unit.
• Replace the Main Control PCB.
4.12.2 Black pages
Symptom: Page is solid black.
Improper LED exposure
• Replace the LED Print Head Unit.
• Replace the Main Control PCB.
Improper charging
• Replace the High Voltage Unit.
• Replace the Main Control PCB.
