5-12

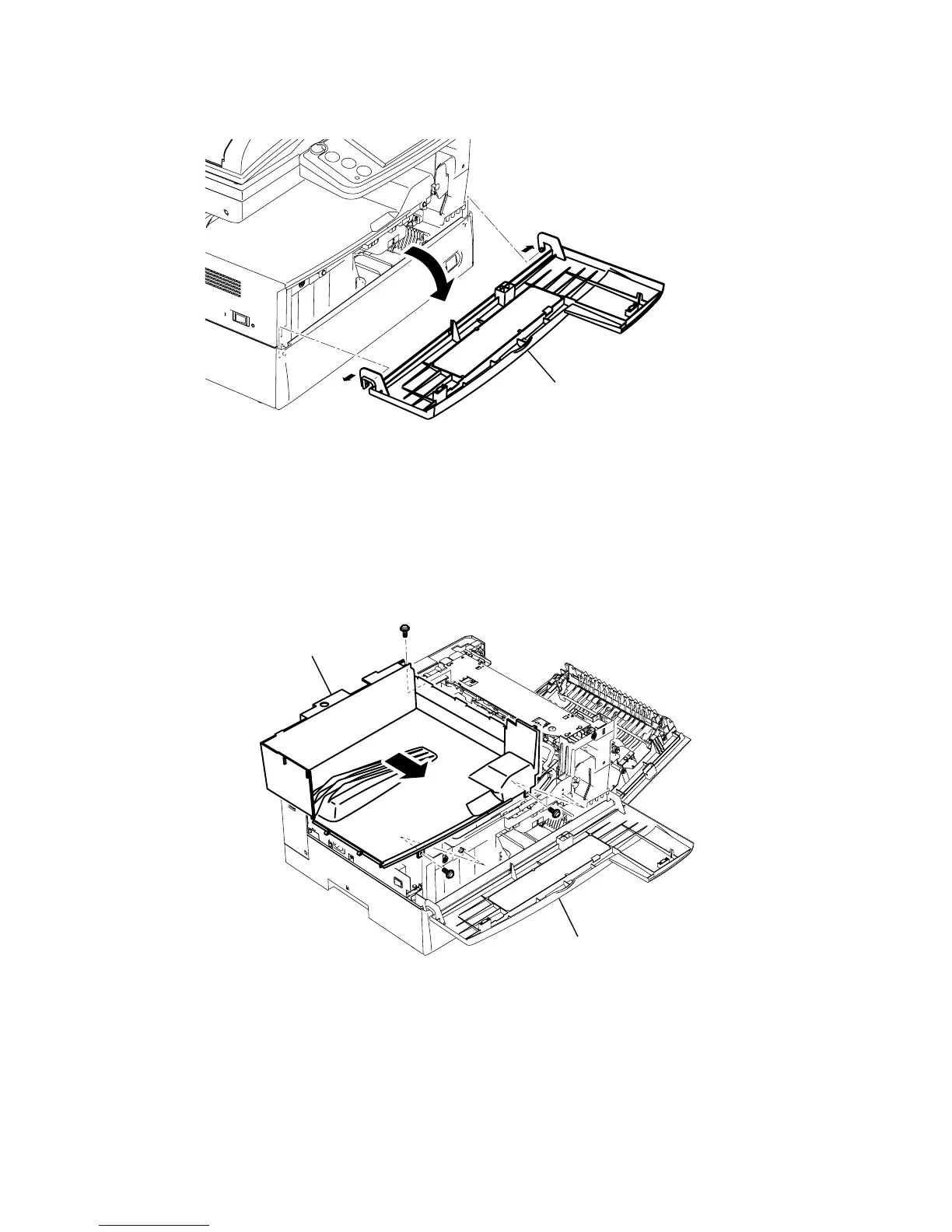

COVER FRONT
1)
Open the Cover front.
2)
Release two locking tabs, and then remove the COVER FRONT.
Cover front
TRAY EXIT PAPER
1)
Remove the Chassis FBS. (See page 5-33)
2)
Remove the Cover left.
3)
Open the Cover front.
4)
Remove three Tray exit paper mounting screws, and then remove the TRAY EXIT PAPER.
T
ray exit paper
Cover front
301
303
