5-44

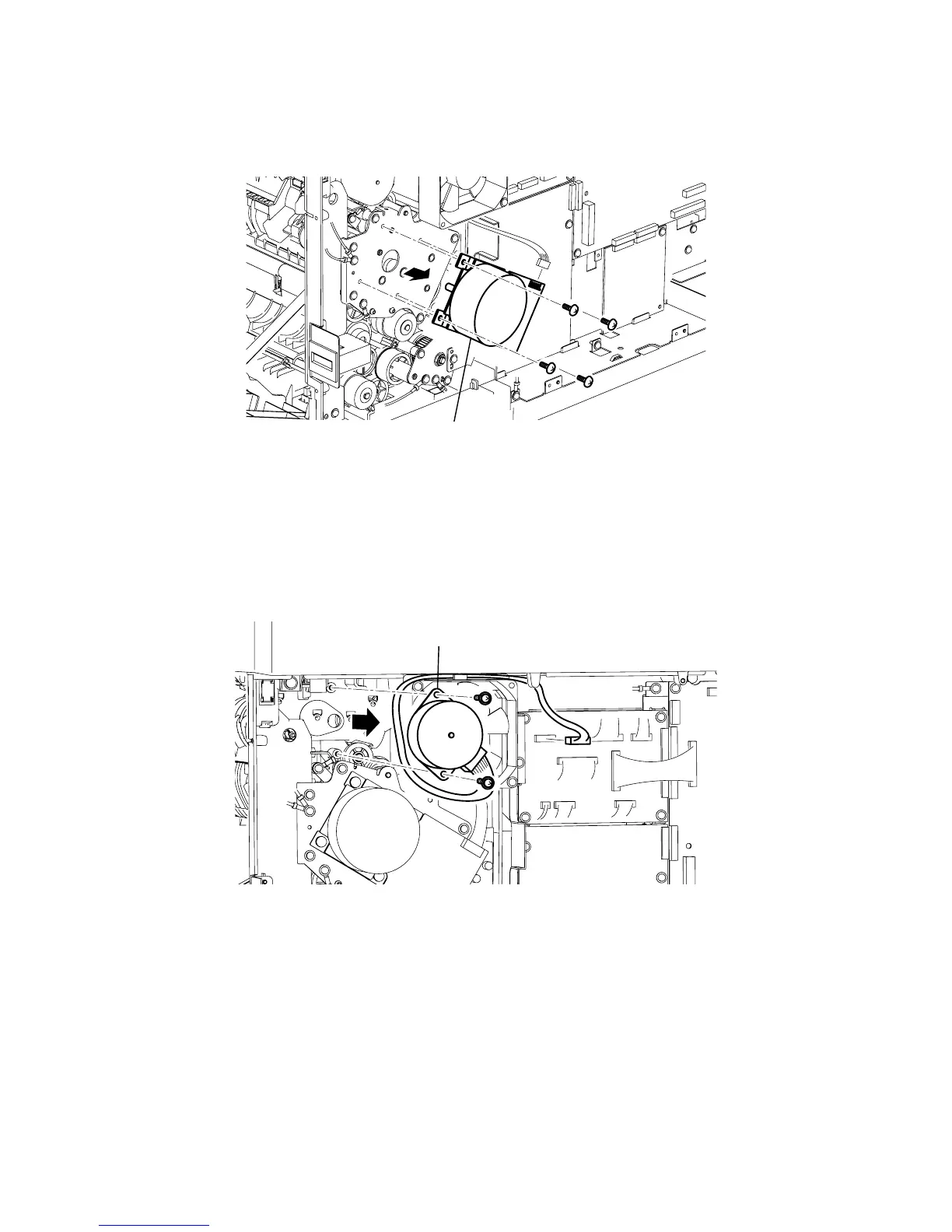

RX MOTOR
1)
Remove the Cover option. (See page 5-21)
2)
Remove the Cover shield. (See page 5-21)
3)
Remove the Cover back. (See page 5-33)
4)
Remove four RX motor mounting screws and disconnect the connector, and then remove the RX MOTOR.
RX motor
MOTOR DUPLEX
1)
Remove the Cover option. (See page 5-21)
2)
Remove the Cover shield. (See page 5-21)
3)
Remove the Cover back. (See page 5-33)
4)
Remove two Motor duplex mounting screws and disconnect the connector, and then remove the MOTOR
DUPLEX.
Motor duplex
