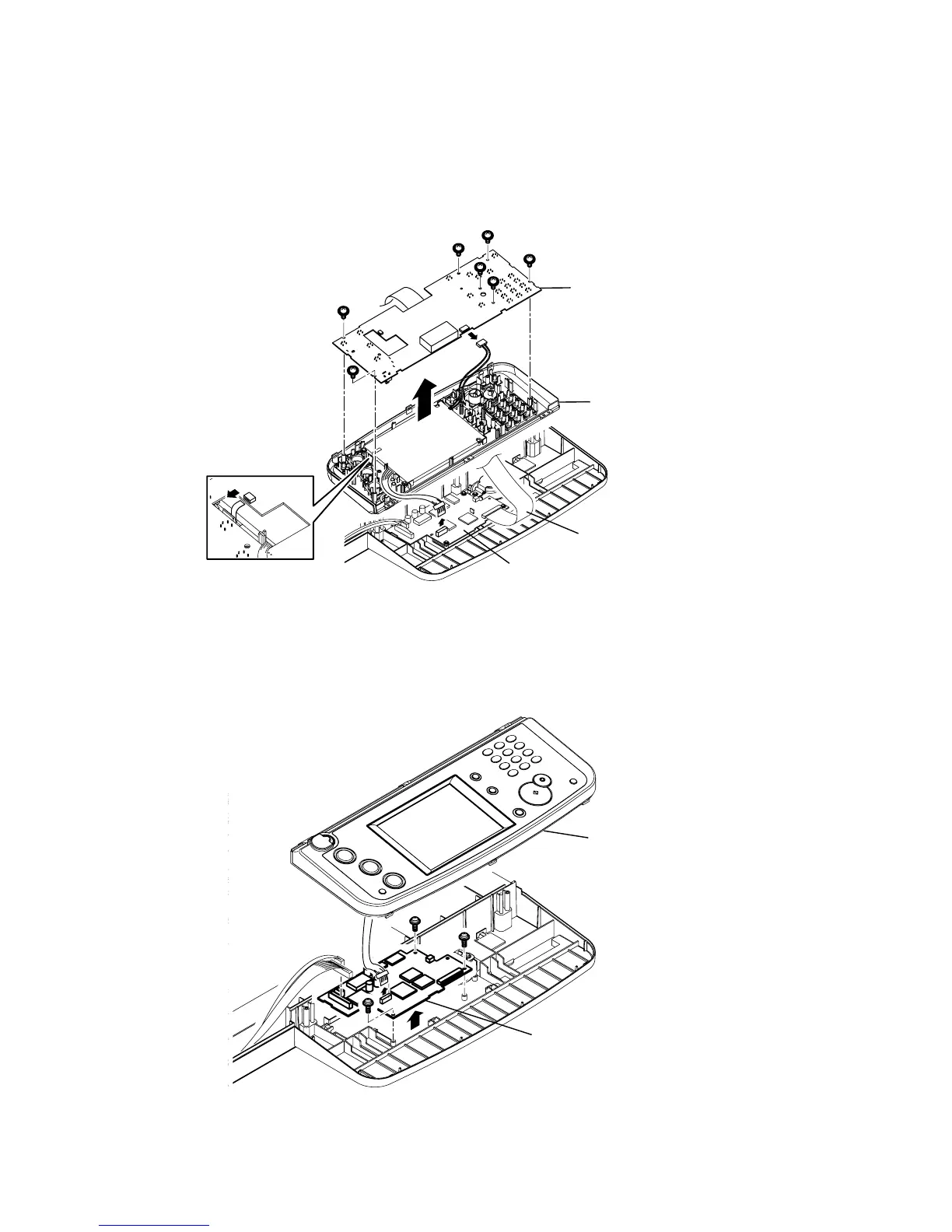

PCB PANEL 1
1) Remove the Cover platen (MFX-2050/1450) or Cover ADF base (F-565/525). (See page 5-7)
2) Remove the Cover panel NGP. (See page 5-13)
3) Remove eight PCB PANEL 1 mounting screws, then release six locking tabs.
4) Disconnect the connector on the PCB PANEL 2.
5) Disconnect the Film harness of the LCD, and then remove the PCB PANEL1.
Note:
After removing the PCB PANEL 1, do not turn over the Cover pane NGP. Otherwise the Pin sensor may fall off.
PCB PANEL 2
1) Remove the Cover platen (MFX-2050/1450) or Cover ADF base (F-565/525). (See page 5-7)
2) Remove the Cover panel NGP. (See page 5-13)
3) Disconnect the connector on the PCB PANEL 2.
4) Remove three PCB PANEL 2 mounting screw, and then remove the PCB PANEL 2.
