Muratec F-525 User Manual

5-54

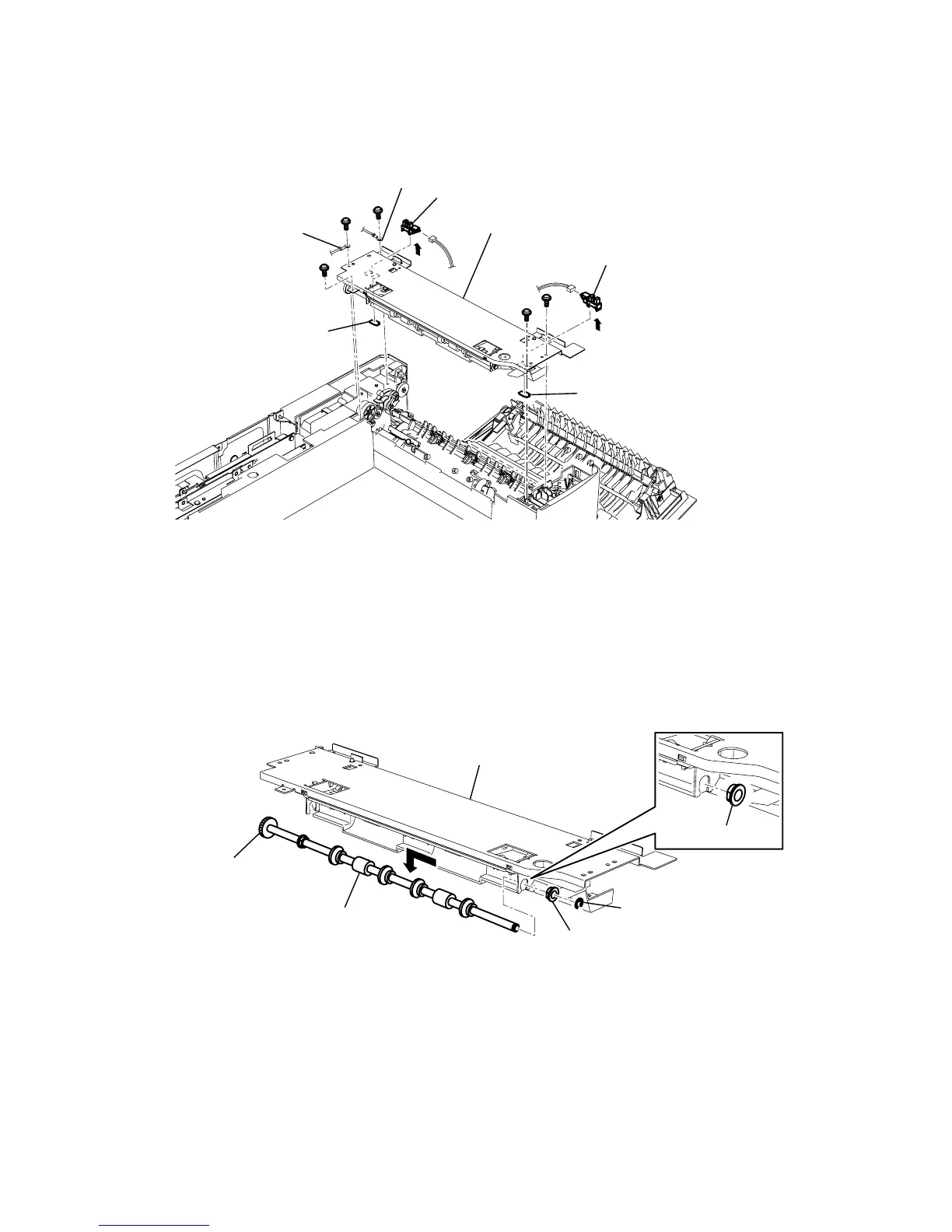

SENSOR PDS / DPS
1) Remove the Chassis FBS. (See page 5-33)
2) Remove five Frame upper mounting screws, and then remove the Frame upper.
3) Remove the Sensor stopper and disconnect the connector, and then remove the SENSOR PDS/DPS.
Ground wire
Ground wire
Frame upper
Sensor PDS
Sensor DPS
Sensor stopper
Sensor stopper
ROLLER EXIT
1) Remove the Chassis FBS. (See page 5-33)
2) Remove the Frame upper.
3) Remove one E-ring, and then remove the BRG exit.
4) Slide out the ROLLER EXIT.
Note: When reattaching the BRG exit, align its cutout with the cutout of the Frame upper’s holder.
BRG Exit
BRG Exit
Roller exit
Frame upper
TX gear 20
E-ring
