2.2 Recording Section

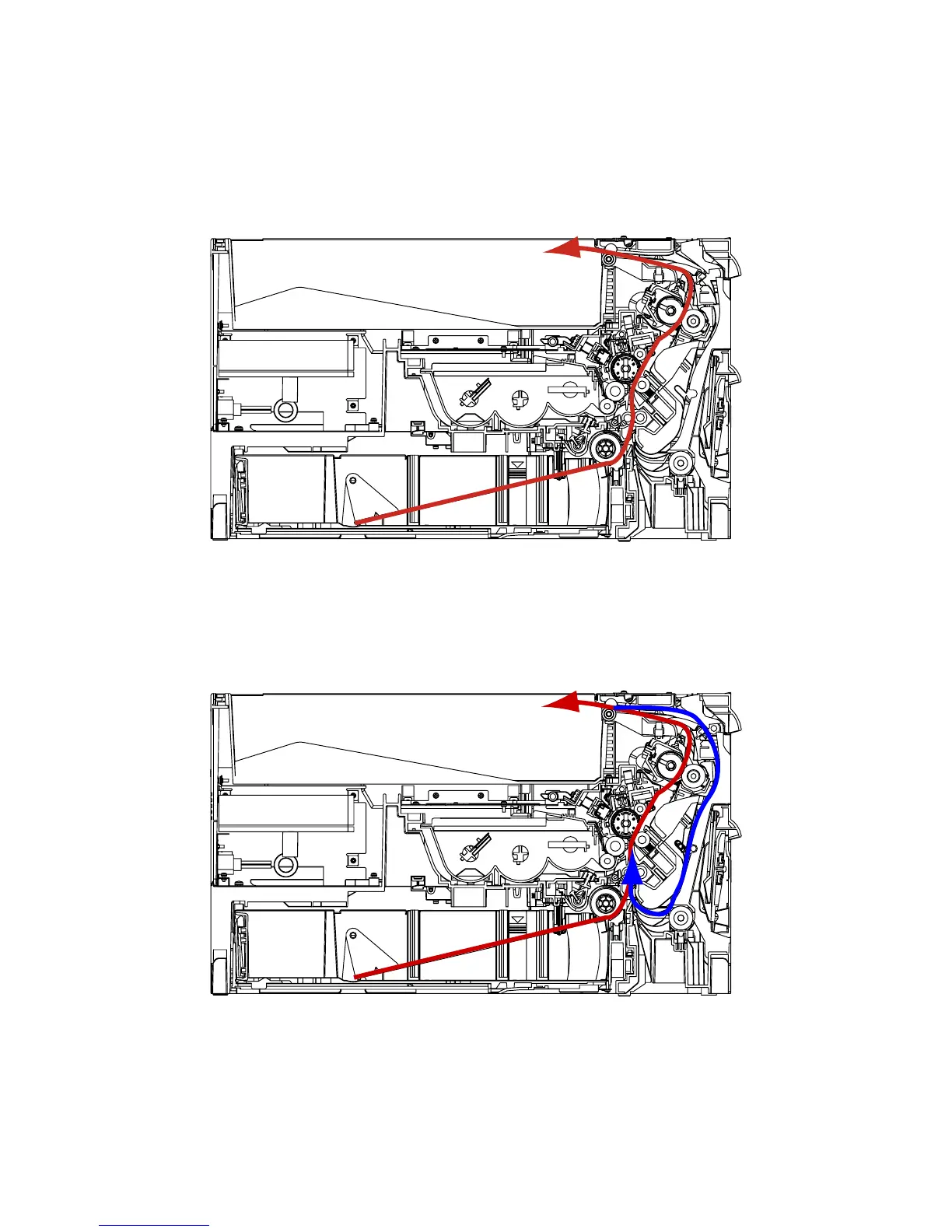

Recording Paper Feed Path
A sheet of the recording paper is separated from the remaining paper by the friction of the pickup
roller.
The paper is moved along the paper guide until it reaches the register roller. It then fed by the rotation
of the register roller.
If there is a duplex printing unit, the machine can print both sides of the paper (duplex printing).
When the first side of the paper is printed, it is transferred to the exit. However after a few steps after
the PDS and DPS sensor detected the trailing edge, the exit roller rolls in reverse and the paper is
transferred to the image processing area by the duplex rollers.
It reaches to the image transfer area turned inside out, and the duplex side of the paper is printed.
