2-4

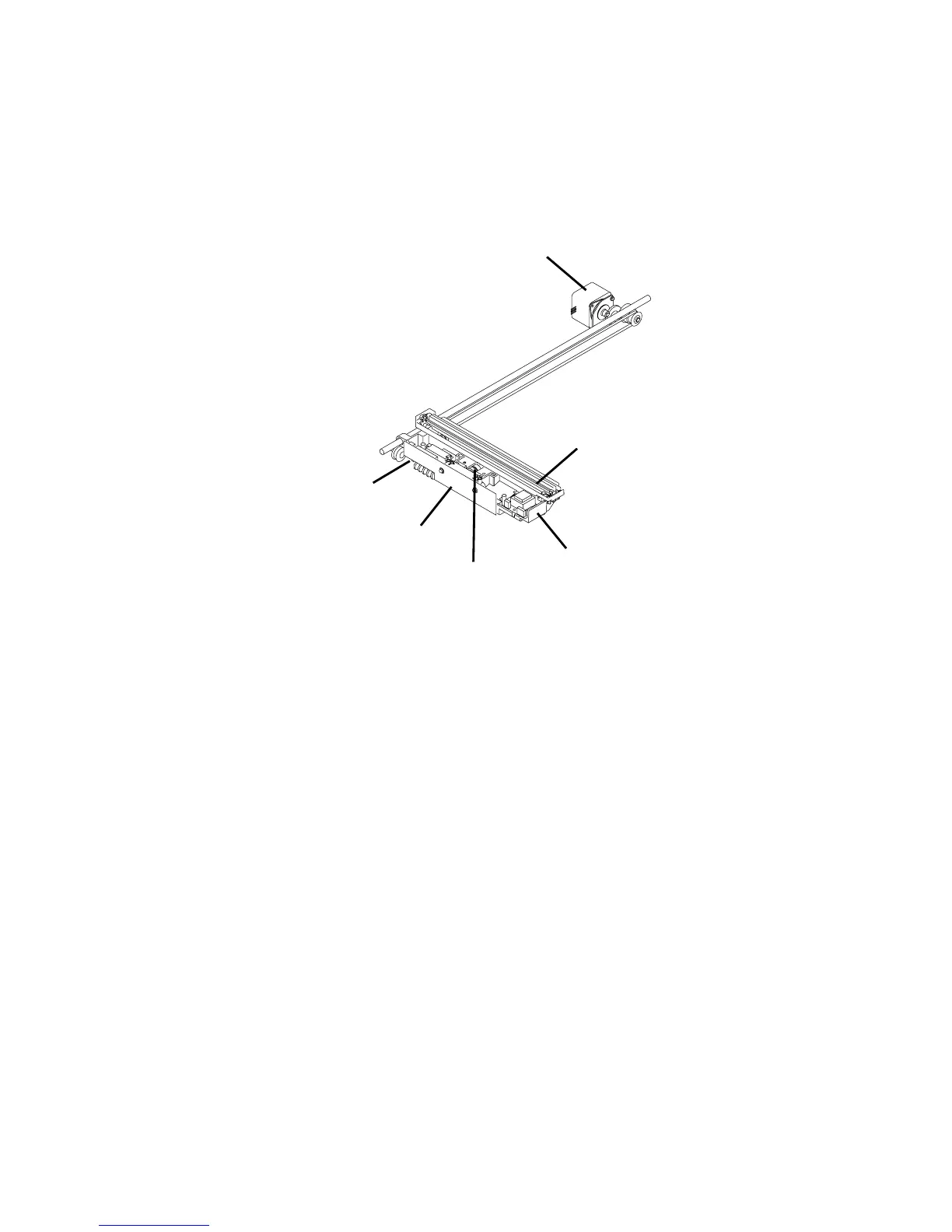

Scanner frame Moving Mechanism
•
During a scan, the scanner frame projects an even amount of light from the Exposure Lamp onto the entire
surface of the original. The light is reflected from the original to the Mirror through the lens to the CCD.
•
The scanner frame is driven by the FBS Motor and Scanner Drive belts.
•
Scanner speed is determined by the set zoom ratio in reference to the full size mode.
•
The scanner frame is at home position where ADF scanning begins. The home sensor watches this position.
