5-35

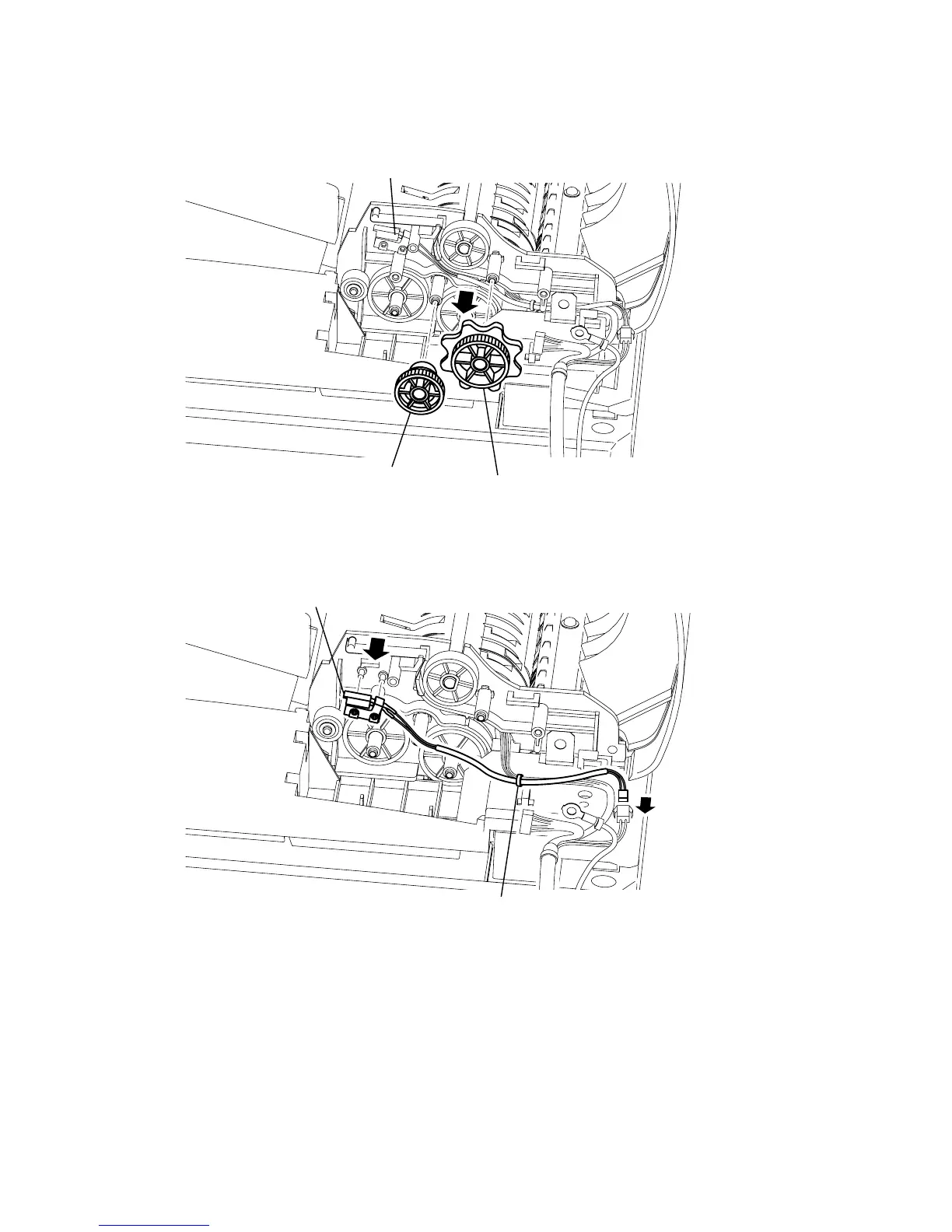

MICRO SW-ASSY ADF
1)
Remove the cover TX side B. (See page 5-8, 5-9)
2)
Remove the bracket motor ADF. (See page 5-34)
3)
Remove the Gear 18/55 and the Gear 24/47.
MICRO SW-ASSY
ADF
Gear 18/55
Gear 24/47
4)
Cut the Cable tie.
5)
Disconnect the connector and remove the MICRO SW-ASSY ADF.
MICRO SW-ASSY
ADF
Cable tie
324
326
