ROLLER FEED

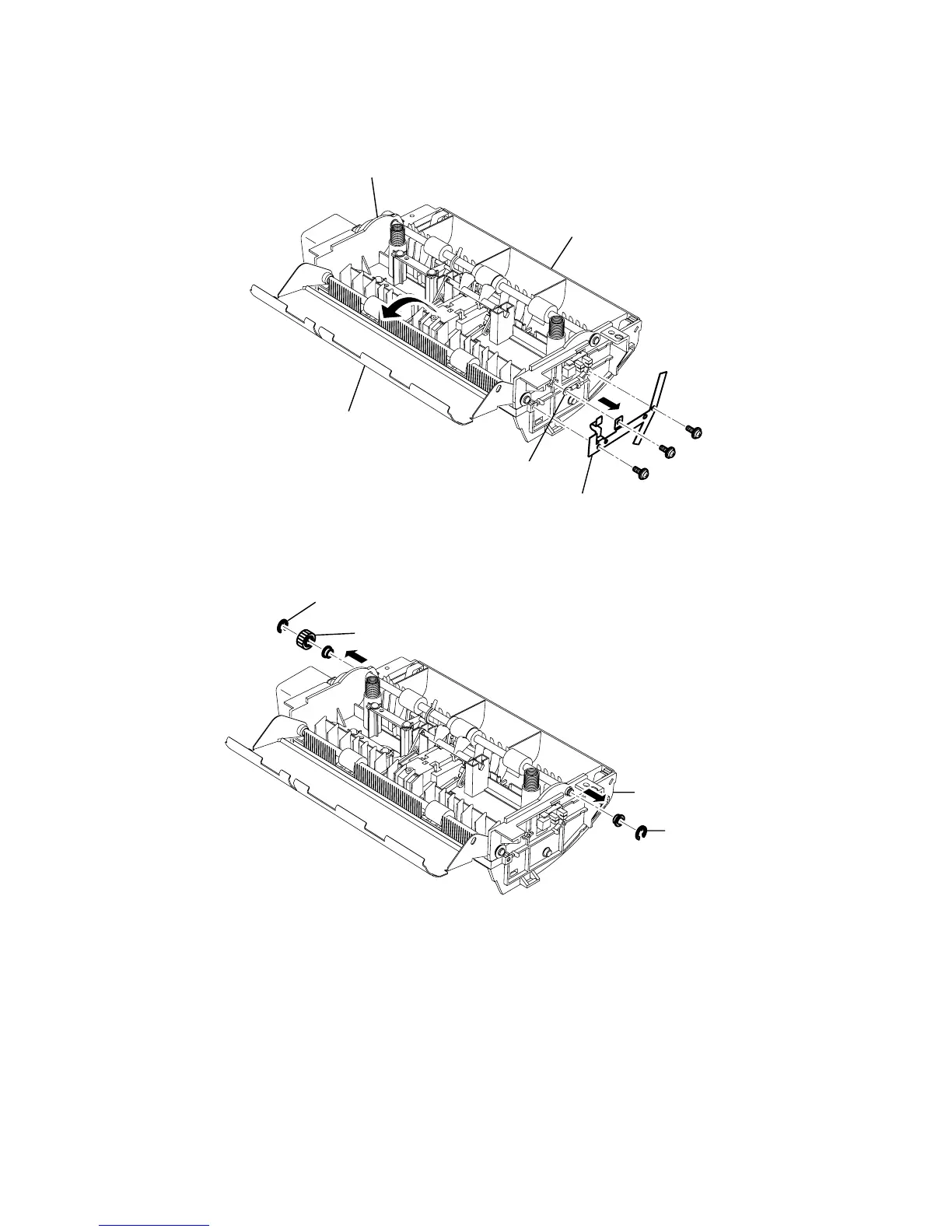

1) Remove the Guide inner A. (See page 5-36)
2) Remove three Spring P earth mounting screws, and then remove the Spring P earth.
3) Open the Guide inner B.
Ground wire
Spring P earth
Guide inner B
Guide inner A
Guide outer
4) Remove two E-rings and then remove the Gear 27 0.5 and two bearings.
E-ring
E-ring
Guide inner A
Gear 27 0.5
