5-48

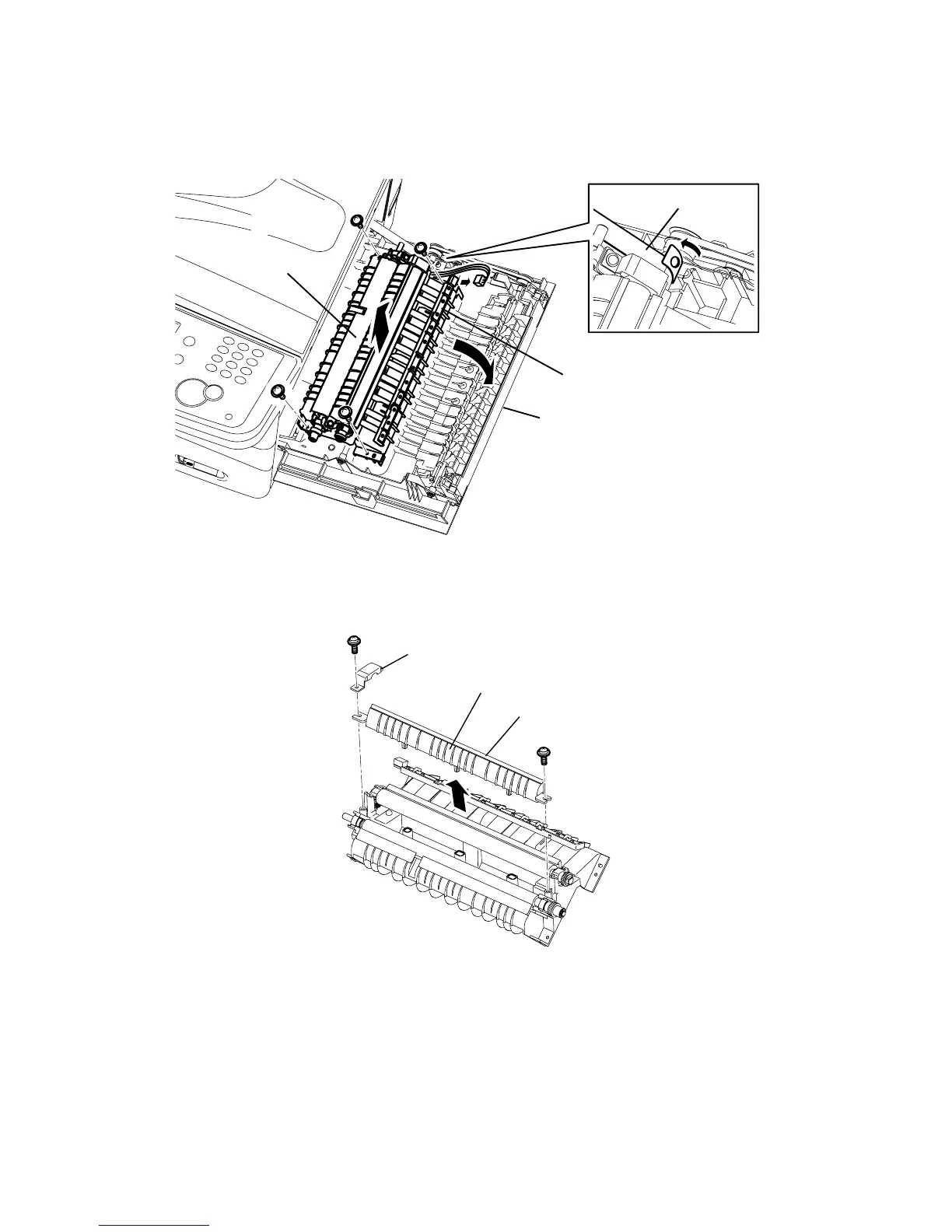

ROLLER TRANSFER
1)
Open the Cover jam access.
2)
Remove the Knob lock JAC.
3)
Remove four Guide inner mounting screws, and then remove the Guide inner.
4)
Disconnect the connector of PCB ERS lamp.
Knob lock JAC
Cover jam access
Guide inner
PCB ERS lamp
5)
Remove two Guide paper transfer A mounting screws, and then the Cover bracket transfer and Guide
paper transfer A.
Cover bracket transfer
Guide paper transfer
A
Sheet transfer
337
