6.3 Page Counter
The mechanical counter shows the total number of pages the machine prints.
Note: This device counts up to 999,999 pages. If more pages are printed, the counter resets to zero
and begins counting the new pages from that point.
6.3.1 Packaging contents:
1. Mechanical counter ........................................ 1
2. Relay cable ..................................................... 1
3. Screw .............................................................. 1
6.3.2 Installation
1. Turn the machine off and unplug the power cord.
2. Remove the covers.

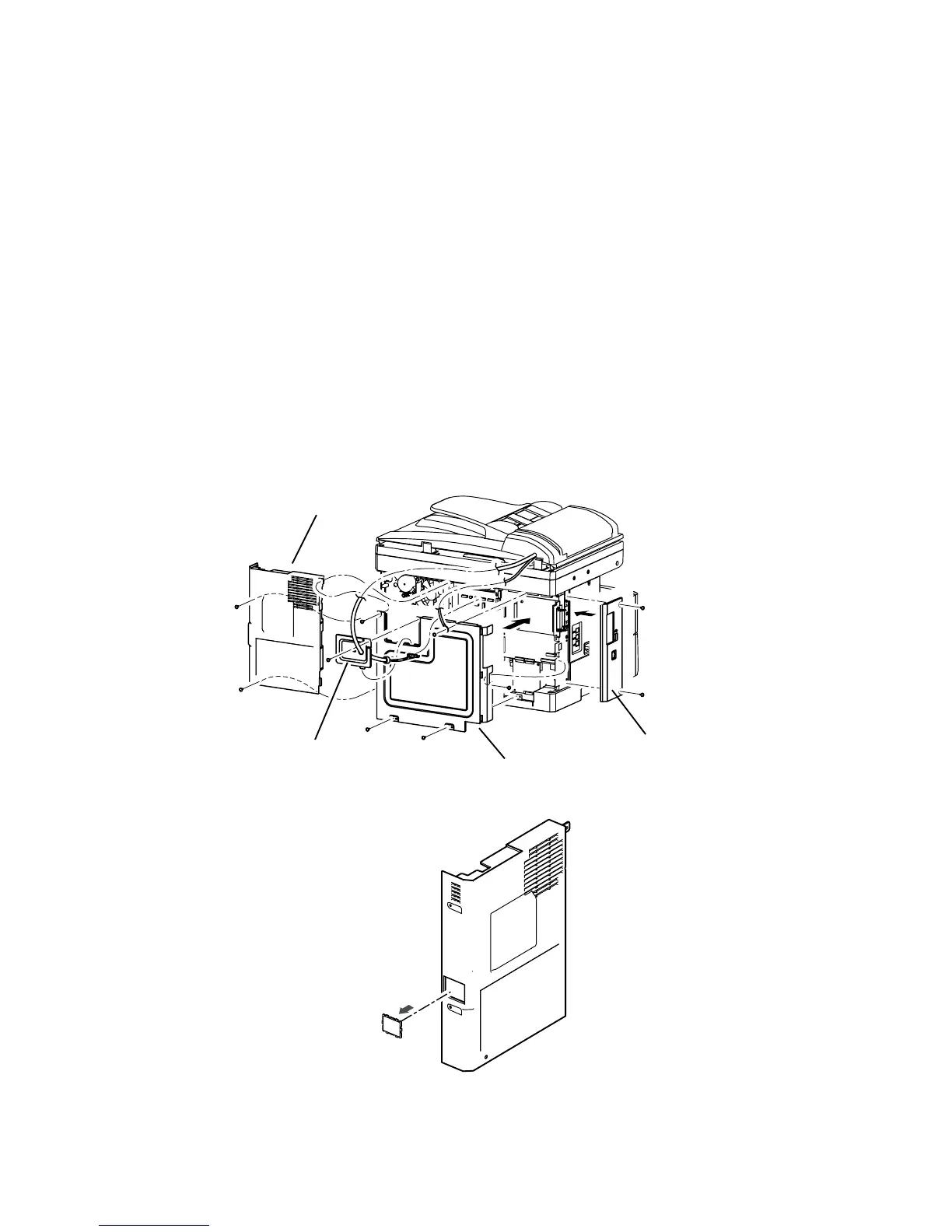

1) Remove the connect cover screw and the cover.
2) Unplug the harness that is going through the connect cover.
3) Remove the two screws and the option cover.
4) Remove the five screws and the shield cover.
5) Remove the two screws and the back cover.
To Next Page
