5-50

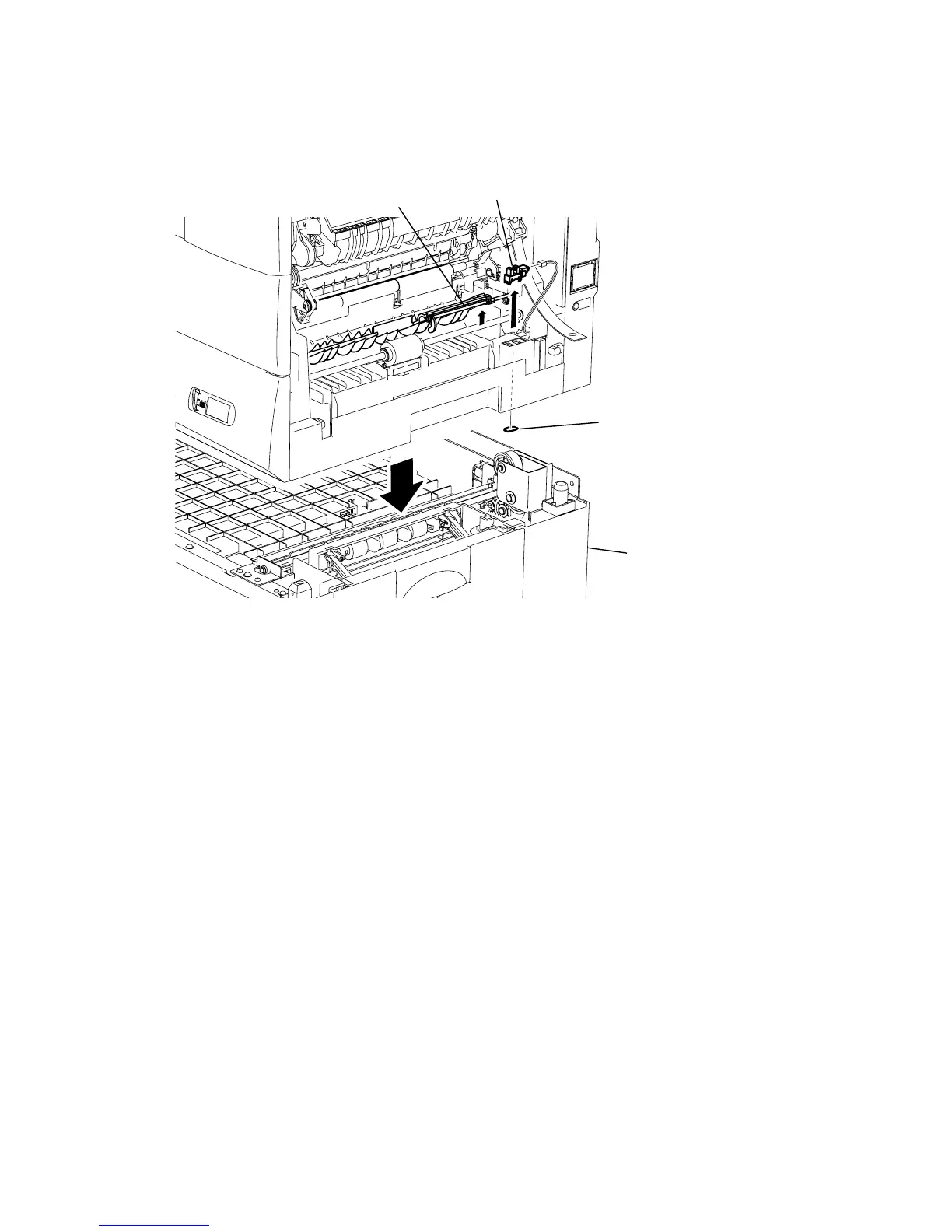

SENSOR TRAYS
1)
Remove the Cover jam access.
2)
Separate the Chassis cassette 2nd from the body, and remove the Sensor stopper from behind.
3)
Remove the Sensor TRAYS while pulling up the Feeler MP.
Chassis cassette 2nd
Sensor stopper
TRA
YS
Feeler MP
339
341
Table of Contents
Table of Contents
4
Default Chapter
2
Safety Information
2
Table of Contents
4
1 General Description
6
Product Description
6
Specifications
7
Direct Input
30
Network Authentication
52
2 Machine Composition
54
Document Scanning Sequence
54
Recording Section
58
Image Processing
59
Image Transfer
60
Interconnect Block Diagram
65
Main Control PCB
66
Network Control Unit (NCU) PCB
67
Power Supply Unit (PSU)
68
Sensors
69
Sensor Descriptions
70
Function Detail and Additional Information
71
Setting the Search Base
75
Snmp Setting
79
3 Adjustment Procedures
85
Field Service Program Modes
85
Machine Parameter Adjustment
87
Clearing the Machine Parameters
88
Memory Switch Adjustment
133
Clearing the Memory Switches
134
Setting Individual Autodialer Attributes
157
All RAM Clear
162
Clear Programmed Data / User Settings
162
Unique Switch Adjustment
163
Clearing the Unique Switches
164
Monitor
187
Printer Maintenance Mode
192
Monitor Speaker
194
Test Modes
195
Printer Test
196
Feeder Test
198
Set Background Level
198
Print Machine Parameters, Memory Switch and Unique Switch Settings
199
Factory Functions
199
Led Test
200
Lcd Test
200
Key Panel Test
201
Sram Check
201
Dram Check
202
Page Memory Check
203
Touch Panel Adjustment
204
Line Tests
205
Tonal Signal Test
206
Dtmf Output Test
207
Mirror Carriage Transfer Mode
209
Consumable Order Sheet
210
Set Consumable Order Sheet
211
DRAM Clear
215
Clear Life Monitor
216
Clear Optional Data
216
Set Service Code
217
Life Monitor Maintenance
218
Sensor Input Test
221
Printer Diagnostic Mode
222
Network Service Mode
223
Multi Line Settings
225
Flash Rom Sum Check
227
Printer Registration Adjustment
227
Service Report
228
Clear Service Report
231
Quick Initial Settings
244
Update the Software Via Network
246
Update the Software
249
Installing the Usb Driver on the Pc
250
Updating the Software Using the Pc
254
Error Code
257
Network Service Functions (IP Address : 8000)
258
Firmware Update
260
4 Troubleshooting Procedures
267
Troubleshooting Outline
267
Recording Paper Jam
268
Document Feeder Jam
268
Document Feeder Multi-Feeding or Skew
269
Mirror Carriage Error (MFX-2050/MFX-1450 Only)
269
Clearing Jammed Paper
269
If a Printout Jams Inside Your Machine
270
Removing Jammed Paper
270
Cleaning the Unit
273
Transmit Error
273
LCD Error Messages
274
Error Codes
280
Reception Errors
281
Transmission Errors
282
Service Call Error
283
Fuser Error
284
The Image Quality Problems
286
Printout too Light
287
Printout too Dark
287
Blurred Background
288
Uneven Print Density
288
Toner Smudges
289
LCD Failure
290
General Power Failure
290
5 Maintenance & Adjustment
291
Maintenance Schedule
292
Re/Disassemble
293
Covers
295
Cover Connect
296
Tray Document
296
Cover Adf Base (F-565/525 Only)
297
Cover Platen (Mfx-2050/1450 Only)
297
Cover Front
302
Tray Exit Paper
302
Tray a Mp/Pad Flapper Mp
304
Pcbs
305
Pcb Panel
306
Pcb Ngp
310
Pcb Main
311
Pcb Connect a / Power-Supply
312
Pcb Connect B
312
Pcb Psu / Pcb Ncu
313
Pcb Connect C
314
Scanning Section
315
Roller Feed
316
Roller Exit
318
Home Sensor (Hs) (Mfx-2050/1450 Only)
322
Chassis Fbs
323
Adf Motor
324
Micro Sw-Assy Adf
325
Guide Inner a
326
Guide Outer
326
Adf Drive Gears
328
Adf Permit Sensor (Aps)
329
Sensor Ds1/Ds
330
Fbs Motor (Mfx-2050/1450 Only)
331
Assembling the Fbs Motor (Mfx-2050/1450 Only)
332
Clutch (Mg)
333
Printer Section
333
Motor Duplex
334
Rx Motor
334
Spring Clutch
335
Frame Drive Gears
336
Roller Transfer
338
Roller Register
339
Sensor Trays
340
Roller Pickup Mp / Pad Pressure Mp
342
Sensor Pss
342
Sensor Pds / Dps
344
Pad Pressure (1St Cst) / (2Nd Cst)
345
Roller Pick up (1St Cst) / (2Nd Cst)
345
Piece Cover Cst (1St Cst Paper Dust)
346
Plate Frame B (2Nd Cst)
348
Plate Frame B Gears (2Nd Cst)
349
Solenoid (2Nd Cst)
350
Spring Clutch (2Nd Cst)
350
Roller Feed Duplex
352
Toner Sensor 1, 2 (Ts1, Ts)
354
Adjustment
360
Outline of Printer Registration Adjustment
360
Printer Registration Mode
360
Adjustment Procedure
361
Registration Adjustment
363
Zoom Adjustment
367
Separation Pressure Adjustment
371
Cleaning the Mirrors A, B and C
372
6 Options
373
Memory Upgrade
373
Second Paper Cassette
375
Page Counter
377
PCL Printer Controller
379
Second Phone Line Kit
380
