5-51

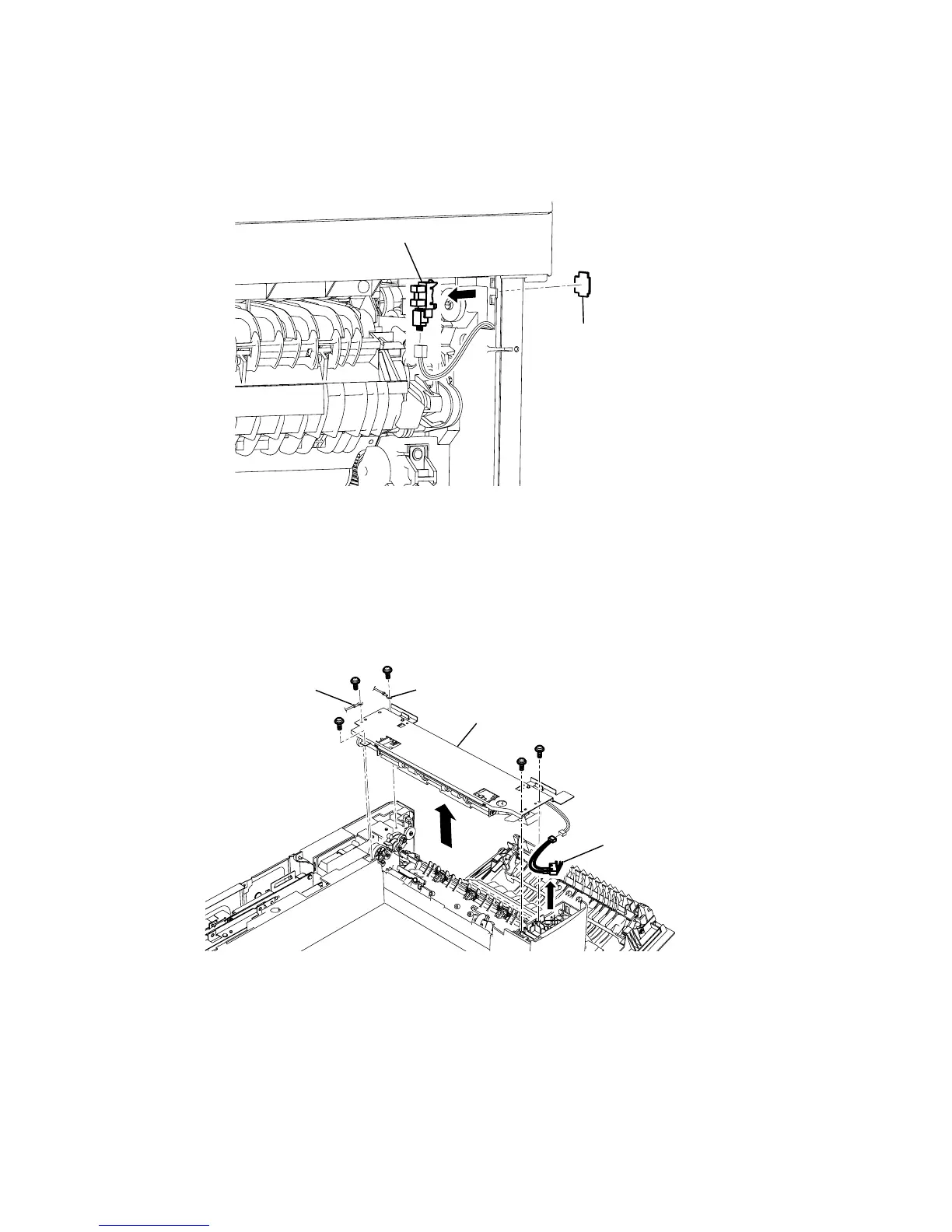

SENSOR JAMC1
1) Remove the Cover option. (See page 5-21)
2) Remove the Cover shield. (See page 5-21)
3) Remove the Cover back. (See page 5-33)
4) Open the Cover jam access.
5) Release the tab, and then remove the Sensor JAMC1.
JAMC1
Sensor stopper
COVER SWITCH
1) Remove the Chassis FBS. (See page 5-33)
2) Open the Cover jam access.
3) Remove five Frame upper mounting screws, and then remove the Frame upper.
4) Disconnect the connector of Sensor interlock, and then remove the Cover Switch.
Ground wire
Ground wire
Frame upper
Cover Switch
