5-38

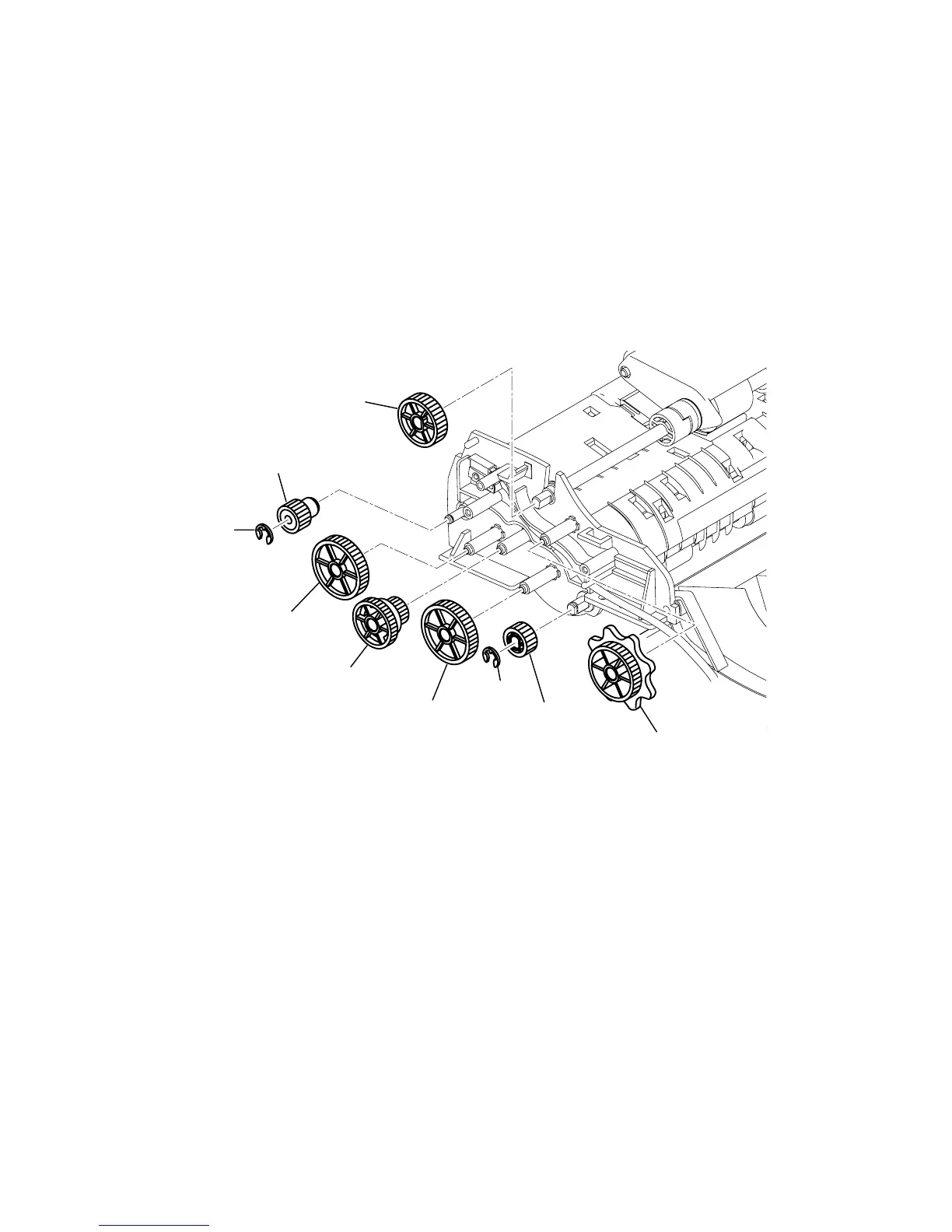

ADF DRIVE GEARS
1) Remove the Cover TX side F. (See page 5-10, 5-11)
2) Remove the Cover TX side B. (See page 5-8, 5-9)
3) Remove the Bracket motor ADF. (See page 5-34)
4) Remove the APS bracket. (See page 5-39)
5) Remove the Guide inner A. (See page 5-36)
6) [1] Remove the Gear 24/47.
7) [2] Remove the Gear 18/55.
8) [3] Remove the Gear 40 0.6B.
9) [4] Remove two Gear 59 0.5.
10) Remove one E-ring, and then remove [5] the Gear 27 0.5.
11) Remove one E-ring, and then remove [6] the Gear 27 0.5 ONEWAY.
[6] Gear 27 0.5 ONEWAY
ANA03
ANA04
[4] Gear 59 0.5
[1] Gear 24/47
[4] Gear 59 0.5
[5] Gear 27 0.5
[3] Gear 40 0.6B
[2] Gear 18/55
