Muratec F-525 User Manual

5-59
PLATE FRAME B GEARS (2nd CST)
1) Separate the Chassis cassette 2nd from the Main frame.
2) Pull out the Cassette 2nd.
3) Remove the Roller Feed 2ND. (See page 5-57)
4) Remove the Plate frame B. (See page 5-58)
5) Remove one E-ring.
6) Remove the Spring C tracking.
7) Remove the Plate tracking.
8) Remove the Gear 48.
9) Remove one E-ring and remove the Shaft tracking, and then remove the Gear 34-0.8B.
10) Remove one E-ring, and then remove Gear 34-0.8C.

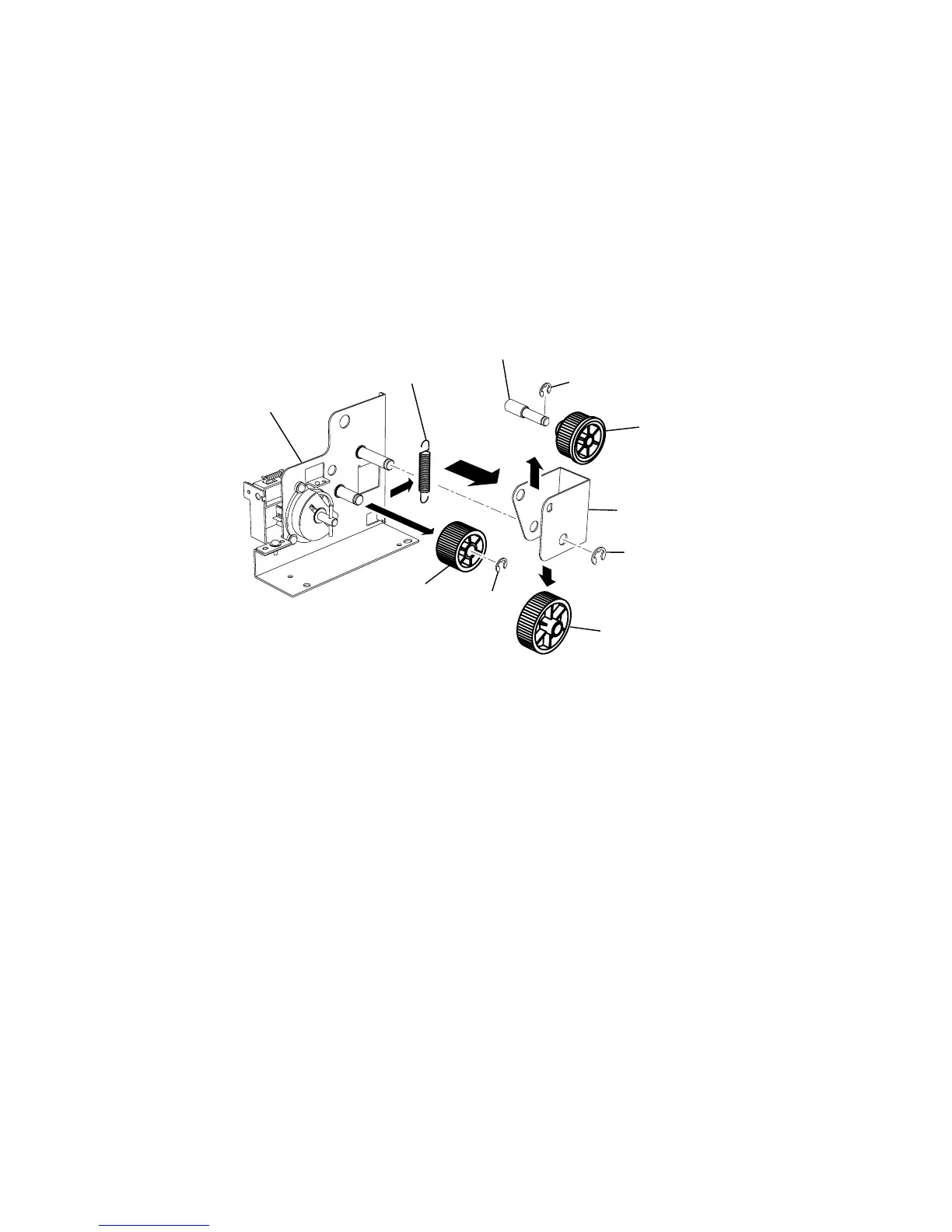

Gear 48
Gear 34-0.8C
Gear 34-0.8B
Shaft tracking
Plate frame B
Spring C tracking
Plate tracking
E-ring
E-ring
E-ring
