Muratec F-525 User Manual

5-39
ADF PERMIT SENSOR (APS)
1) Remove the Cover TX side F. (See pages 5-10, 5-11)
2) Remove the Cover TX side B. (See pages 5-8, 5-9)
3) Remove the Bracket motor ADF mounting screw. (See page 5-34)
4) Remove two APS bracket mounting screws, and then remove the APS bracket.
5) Remove the Guide inner A. (See page 5-36)
6) Disconnect the connector on the APS and remove the SENSOR (APS).

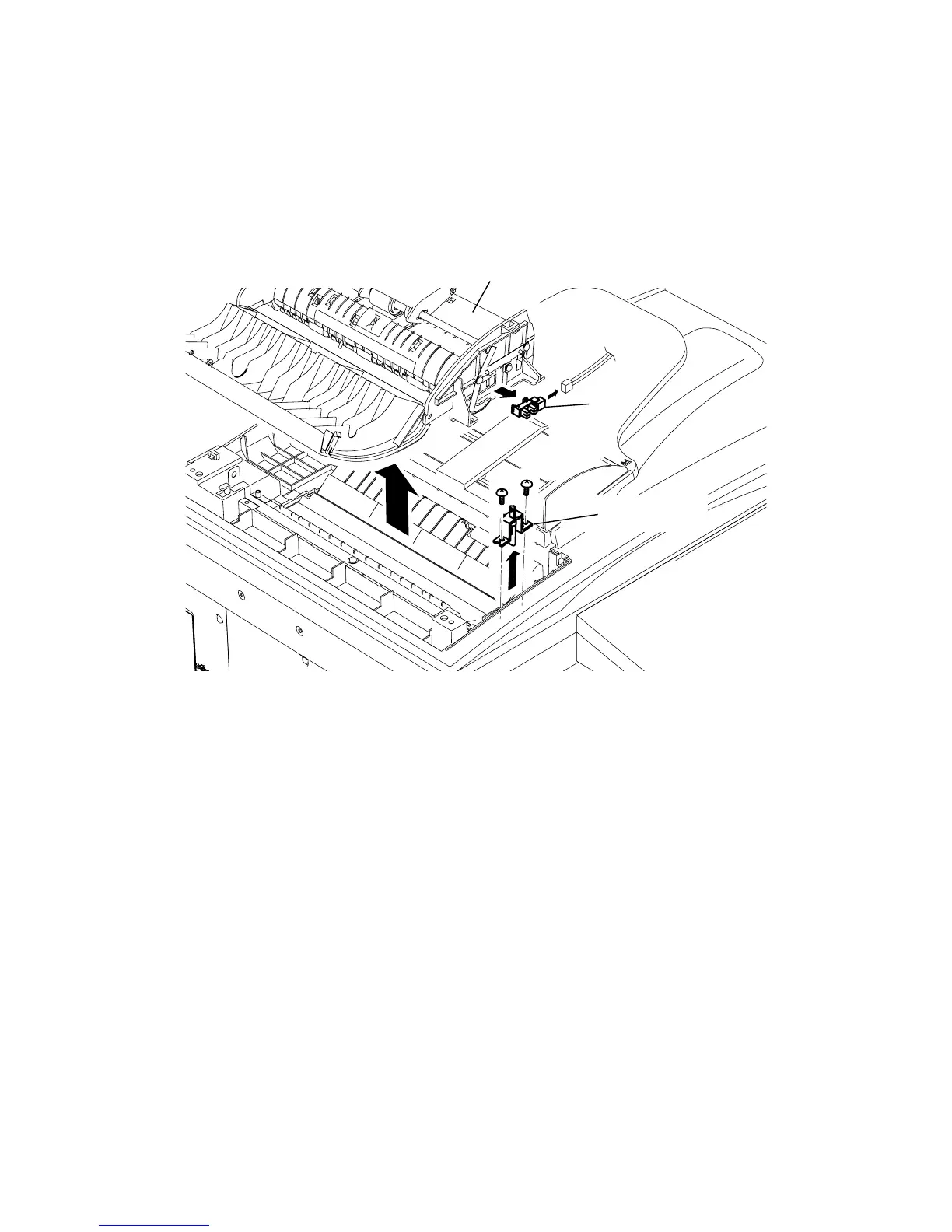

APS bracket
Guide inner A
APS
