2-7
2.3.3 Development

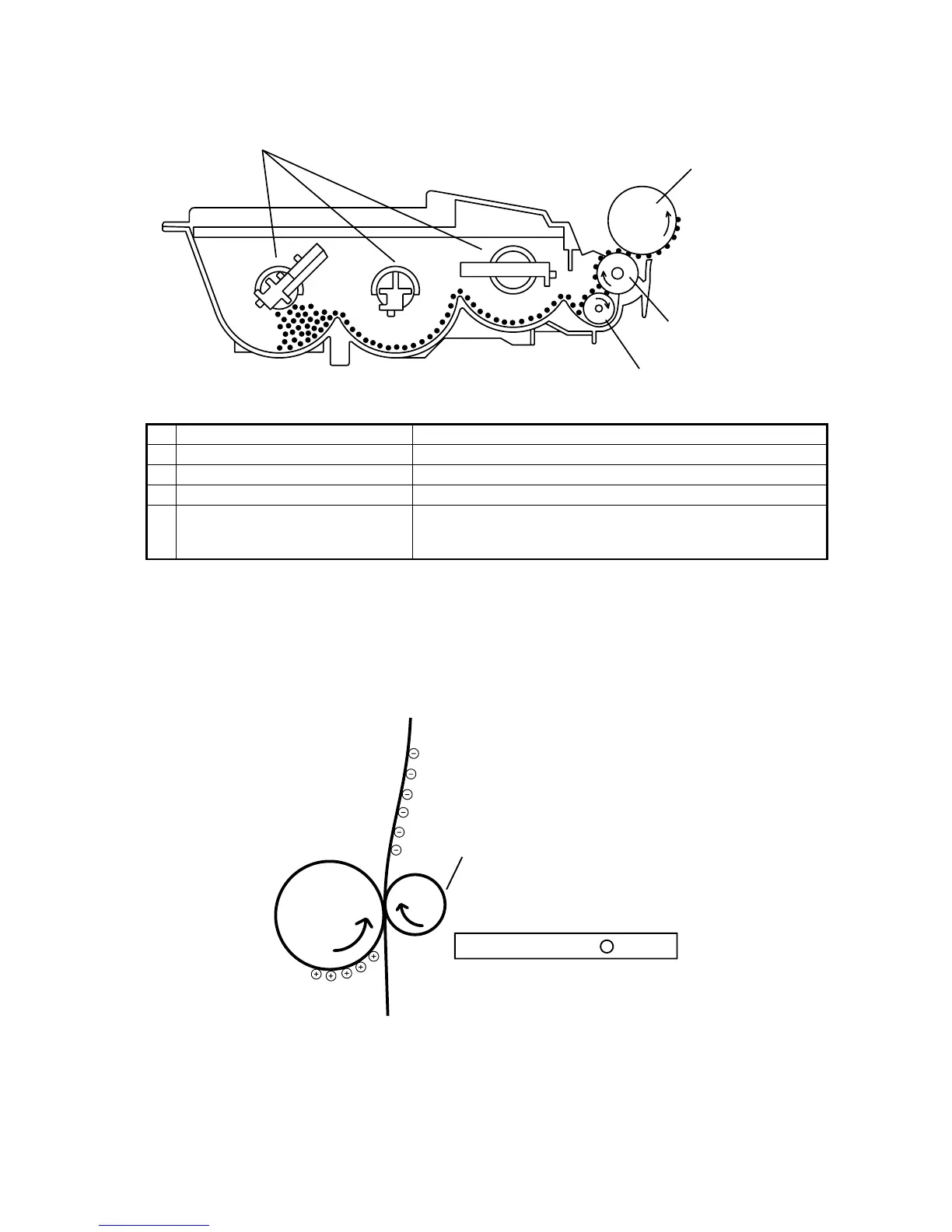

Toner is applied to the invisible static image on the Drum and a toner image is created on the surface.
Toner agitator
Toner supply roller
Developing roller
Drum
Part Name Function
1 Toner Agitator Agitates toner.
2 Toner supply Roller Transports the toner to the developing roller.
3 Developing Roller Carries the toner to the Drum surface for development.
4 Drum Exposed by LED light to create an invisible image and
rotates to carry the developed image to the paper sur-
face.
2.3.4 Image Transfer
Image transfer is the process of transferring the toner image created on the Drum in the developing
process to paper. In the Roller Image Transfer, there is little generation of ozone due to corona
discharge. Also, there is no blur of toner because the paper is always pressed by the Drum and the
Image Transfer Roller.
Hight voltage unit - output
PC Drum
Image transfer roller
