Muratec F-525 User Manual

5-22

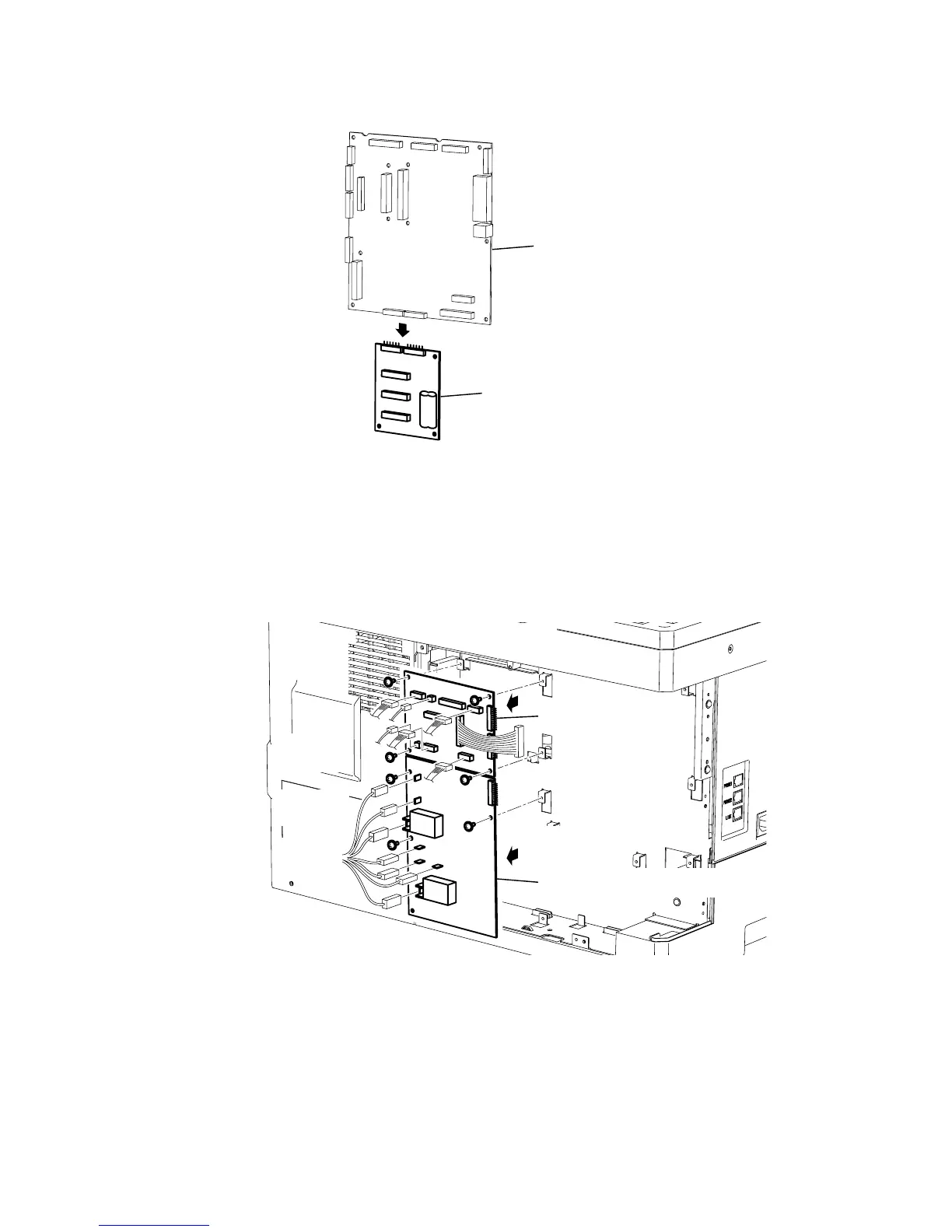

PCB CONNECT B
1) Remove the PCB MAIN. (See page 5-21)
2) Separate the PCB CONNECT B.
PCB MAIN
PCB CONNECT B
PCB CONNECT A / POWER-SUPPLY
1) Remove PCB NGP. (See page 5-20)
2) Remove the PCB MAIN. (See page 5-21)
3) Disconnect seven connectors on the PCB CONNECT A.
4) Remove four PCB CONNECT A mounting screws, and then remove the PCB CONNECT A.
5) Disconnect seven connectors on the POWER-SUPPLY.
6) Remove three POWER-SUPPLY mounting screw, and then remove the POWER-SUPPLY.
PCB CONNECT A
POWER-SUPPLY
