5-32

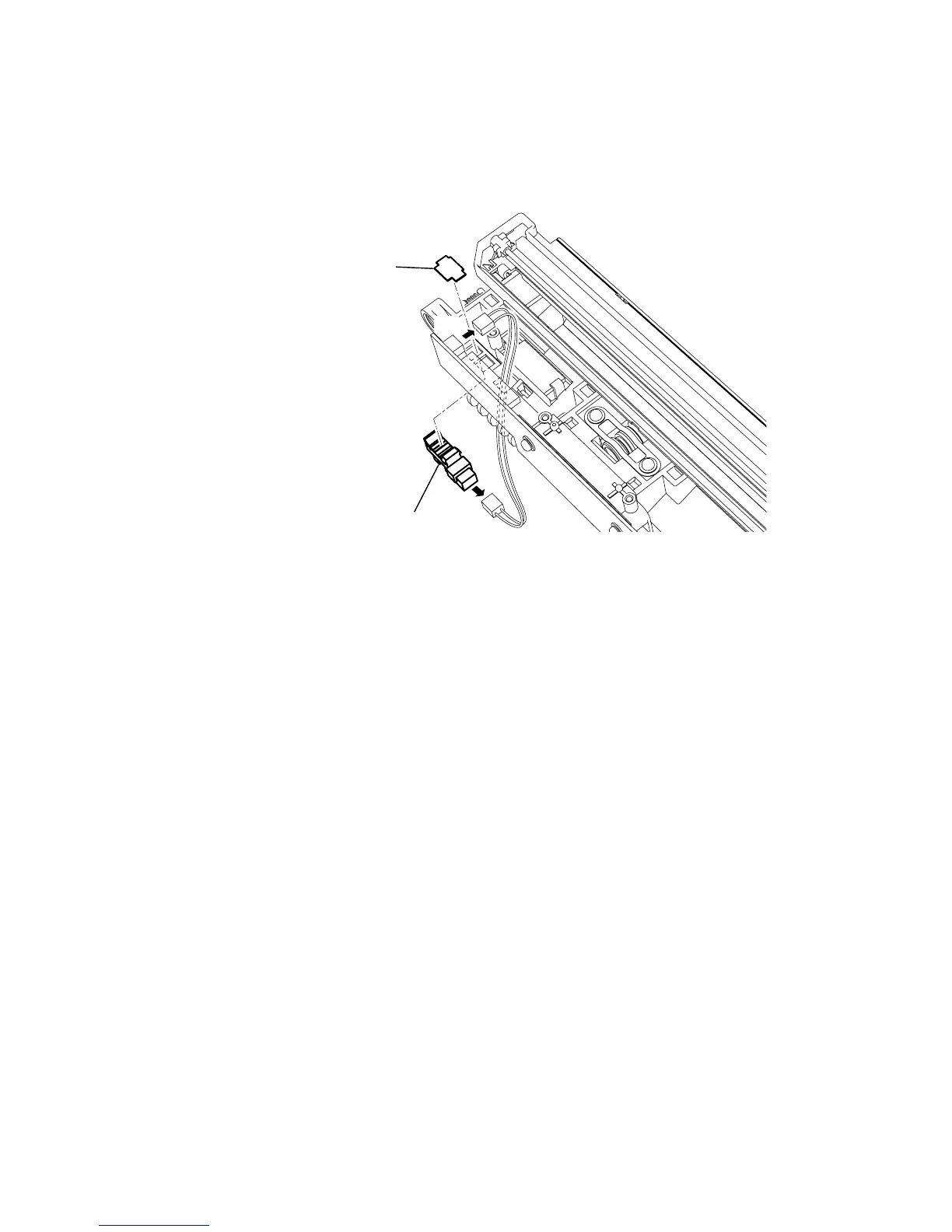

HOME SENSOR (HS) (MFX-2050/1450 only)
1)
Remove the Cover platen. (See page 5-7)
2)
Remove the Cover top. (See page 5-13)
3)
Remove the Frame scanner. (See page 5-29)
4)
Remove the Sensor stopper.
5)
Remove the tab, and then remove the HOME SENSOR.
Sensor stopper
Home sensor
P2
321
323
