5-23
PCB PSU / PCB NCU

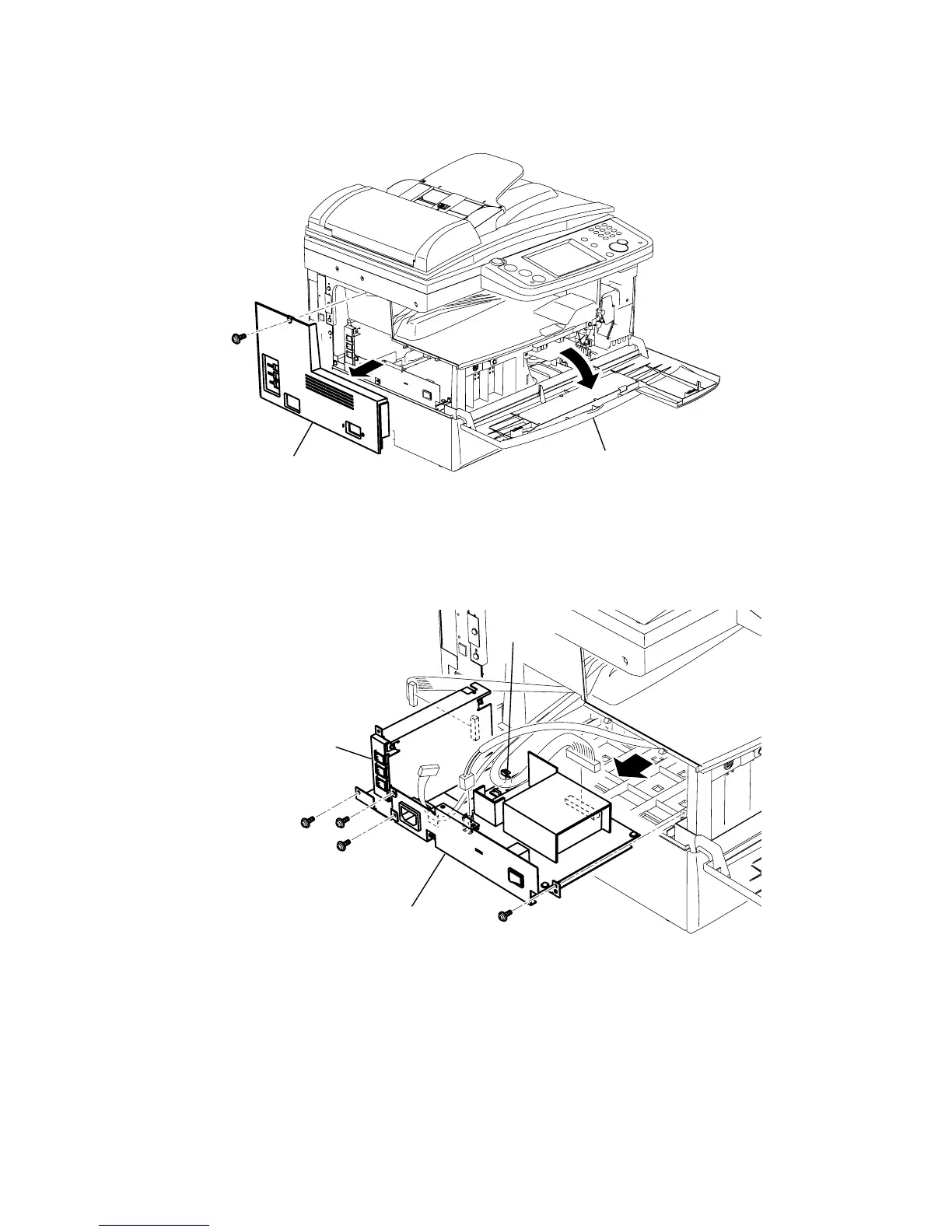

1)
Remove the Cover option. (See page 5-21)
2)
Open the Cover front.
3)
Remove the Cover left mounting screw, and then remove the Cover left.
Cover front
Cover left
4)
Remove four PCB NCU mounting screws.
5)
Disconnect the connector and then remove the PCB NCU.
6)
Disconnect two connectors.
7)
Remove the harness from cord clamp.
8)
Remove the PCB PSU.
PCB PSU
PCB NCU
Clamp
312
