3-122

3.14.2 Tonal Signal Test

The tonal signal test permits the unit’s output tones to be monitored.

Note: To monitor the tones, an external monitoring device must be connected to the telephone line

jack.

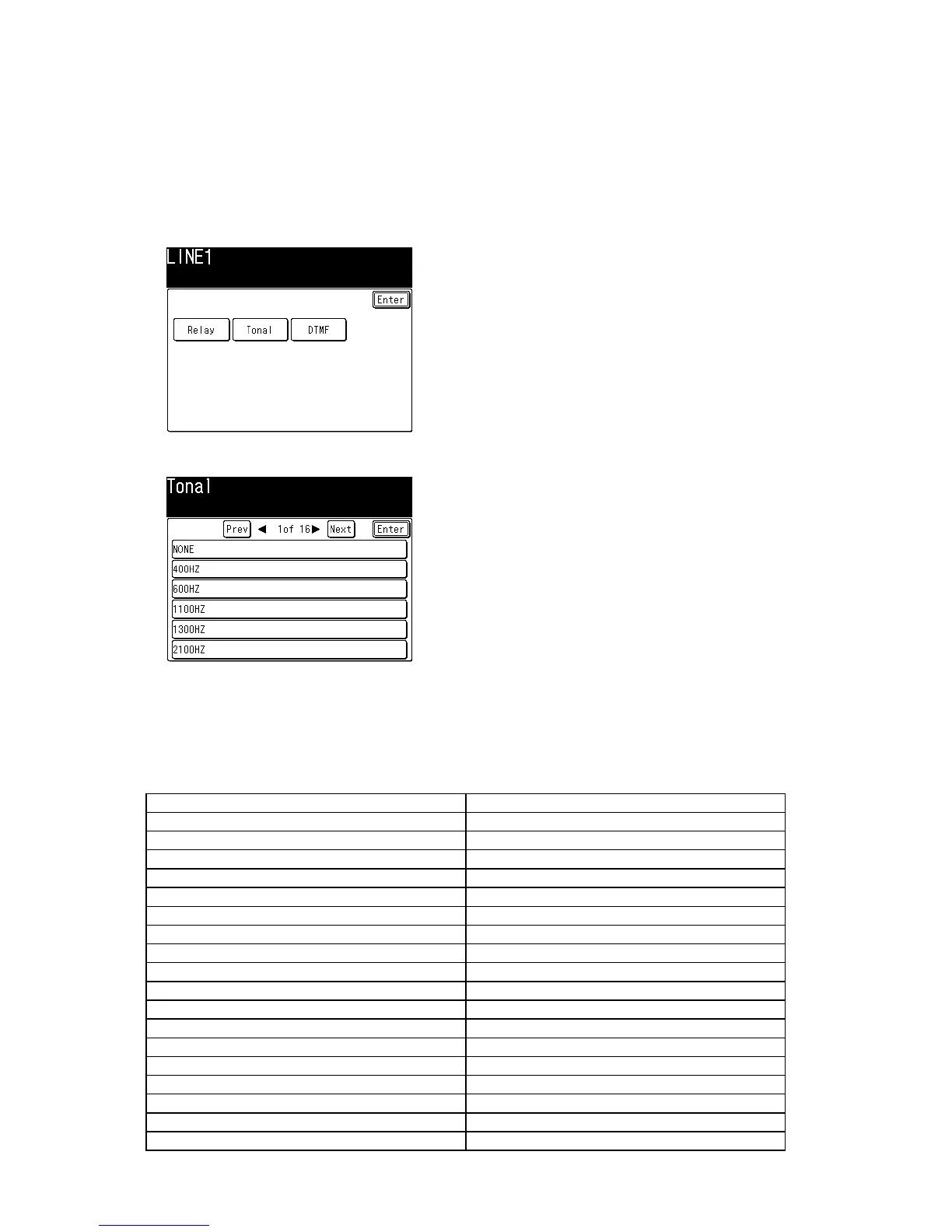

1. Press <Setting>, <*>, <1>, <2>.

2. Select the line you want to test. If the optional second phone line is not attached, you can only test

line1.

3. Select [Tonal].

4. Select your desired tonal signal test. When it is selected, it will be highlighted.

Refer to the table below.

Note: It may take several moments for output signal to change.

Signal Signal

None (stop signal) V17_2400_7200_W1_B4 picture date

400 Hz tone V17_2400_7200_W0_B1 picture date

600 Hz tone V17_2400_7200_W4_B1 picture date

1100 Hz tone V17_2400_9600_W1_B0 picture date

1300 Hz tone V17_2400_9600_W1_B1 picture date

2100 Hz tone V17_2400_9600_W1_B4 picture date

3000 Hz tone V17_2400_9600_W0_B1 picture date

3400 Hz tone V17_2400_9600_W4_B1 picture date

FSK WHITE V17_2400_12000_W1_B0 picture date

FSK BLACK V17_2400_12000_W1_B1 picture date

FSK _W1_B1 V17_2400_12000_W1_B4 picture date

V27_1200_2400 picture date V17_2400_12000_W0_B1 picture date

V27_1600_4800 picture date V17_2400_12000_W4_B1 picture date

V29_2400_7200 picture date V17_2400_14400_W1_B0 picture date

V29_2400_9600 picture date V17_2400_14400_W1_B1 picture date

V17_2400_7200_W1_B0 picture date V17_2400_14400_W1_B4 picture date

V17_2400_7200_W1_B1 picture date V17_2400_14400_W0_B1 picture date

V17_2400_14400_W4_B1 picture date
