5-81

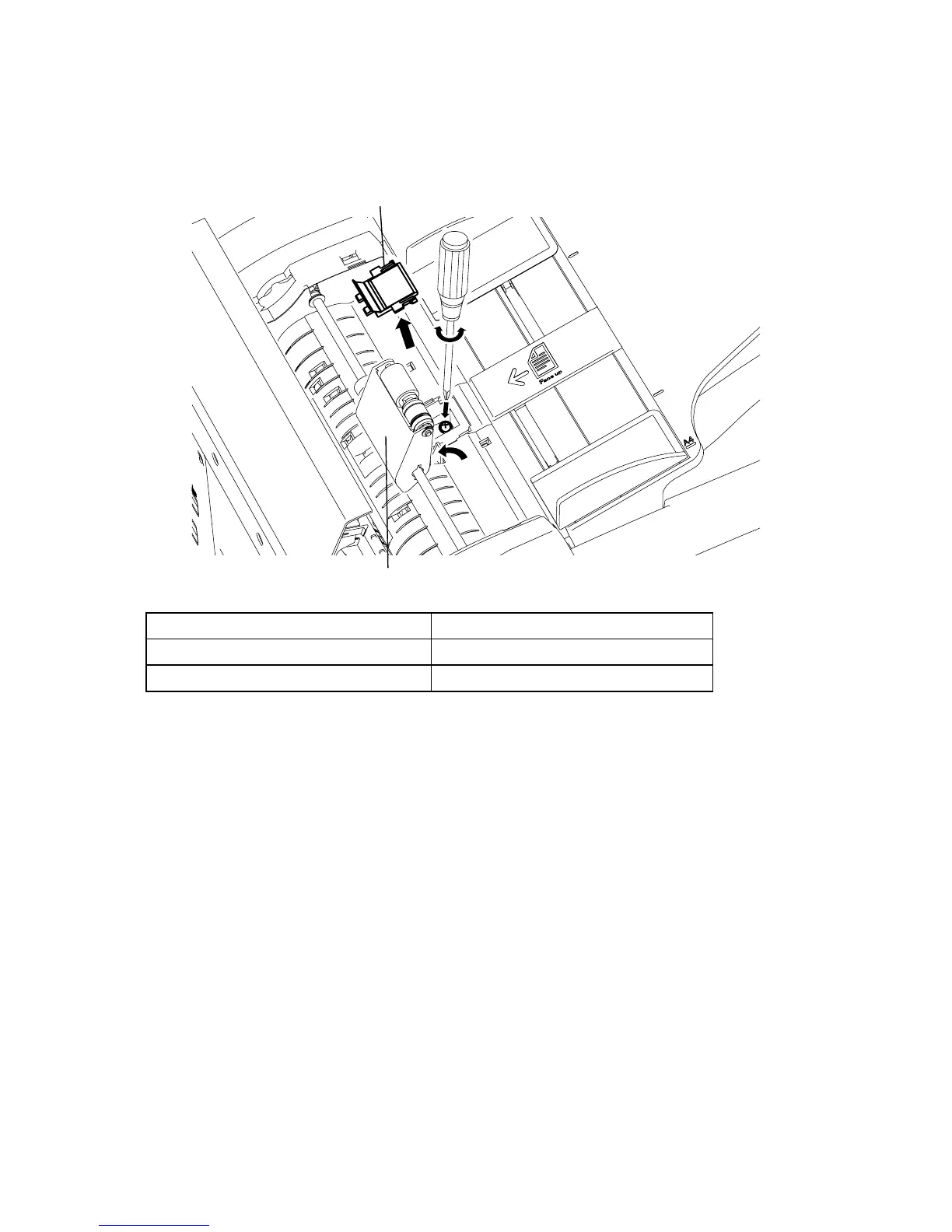

5.3.5 SEPARATION PRESSURE ADJUSTMENT
1)
Open the Guide outer.
2)
Pick up the Roller separator.
3)
Remove the assy cover separator. (See page 5-37)
Roller separator
Cover separator
Rotate direction
Separation pressure
Clockwise
Up
Counterclockwise
Down
370
372
