5-56

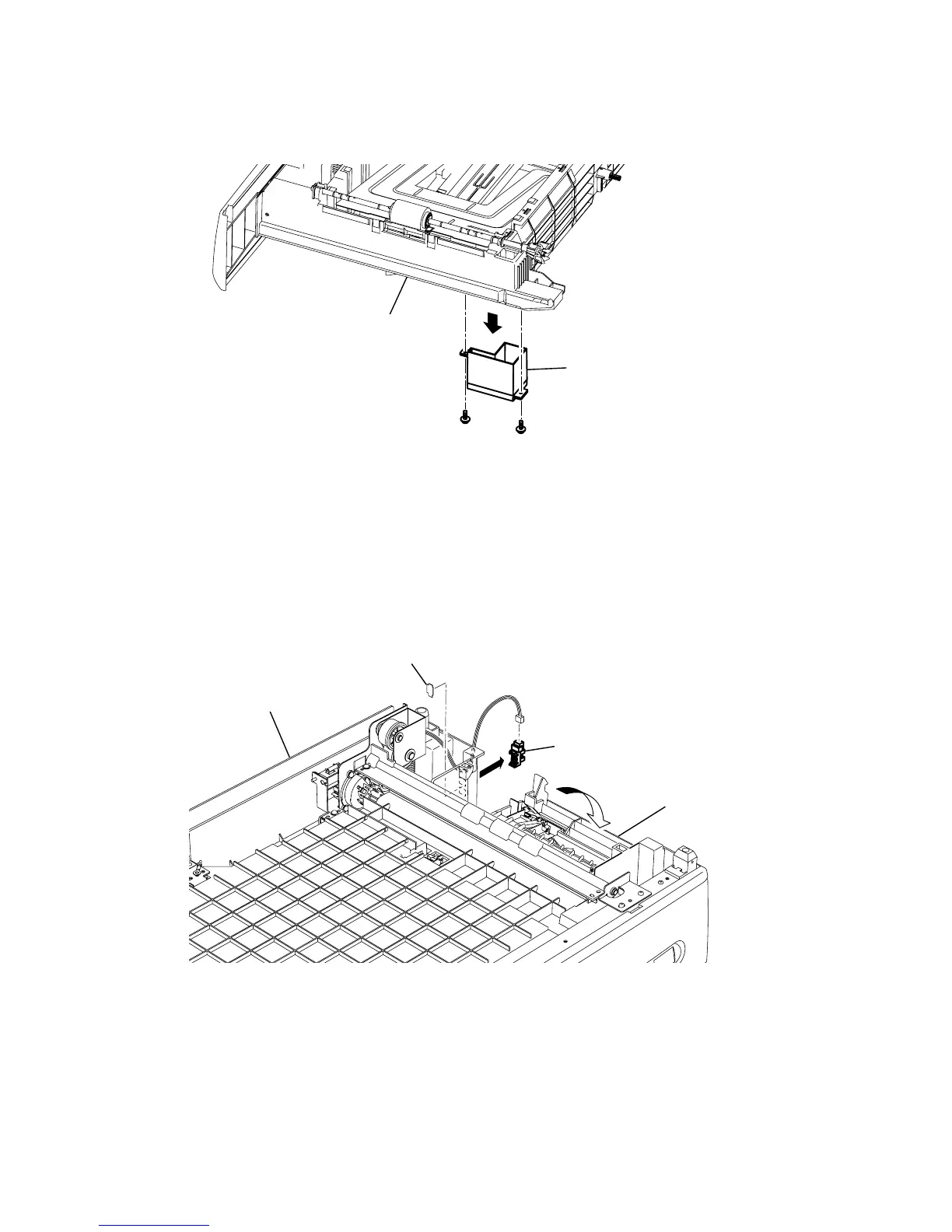

PIECE COVER CST (1st CST Paper dust)
1)
Pull out the Cassette 1st.
2)
Remove two Piece cover CST mounting screws, and then remove the PIECE COVER CST.
Note:
Paper dust is collected in the Piece cover CST. When it is full, empty it.
Cassette 1st
Piece cover CST
SENSOR JAMC2
1)
Separate the Chassis 2nd from the Main frame.
2)
Open the Cover JAC 2nd.
3)
Remove the Sensor stopper and disconnect the connector, and then remove the Sensor JAMC2.
Cover JAC 2nd
JAMC2
Sensor stopper
Chassis cassette 2nd
