Muratec F-525 User Manual

5-36
GUIDE INNER A

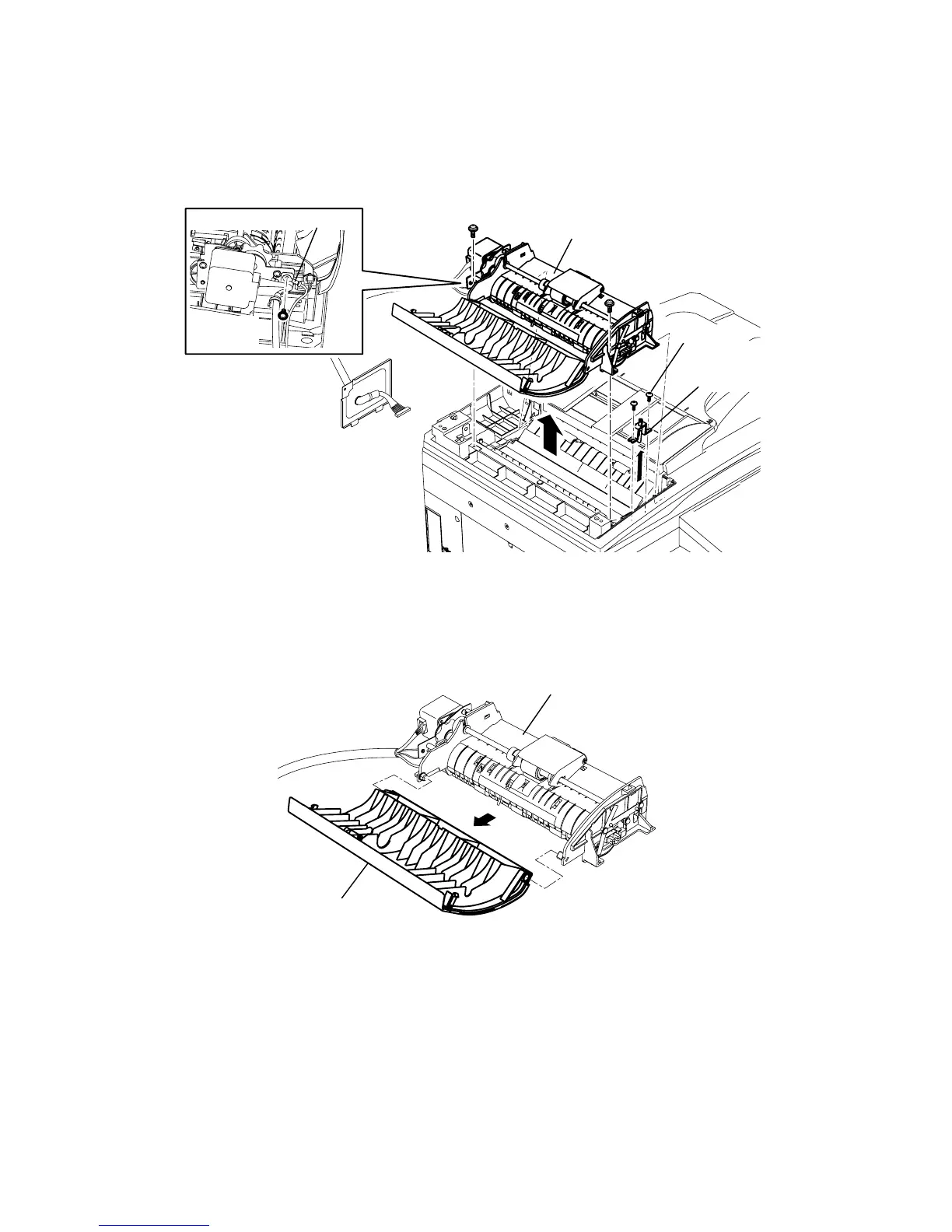

1) Remove the Cover TX side F. (See page 5-10, 5-11)
2) Remove the Cover TX side B. (See page 5-8, 5-9)
3) Remove the Ground wire as shown below.
4) Remove two APS bracket mounting screw and then remove the APS bracket.
5) Remove two Guide inner A mounting screw and the tab, and then remove the GUIDE INNER A.
Guide inner A
Ground wire
APS bracket
GUIDE OUTER
1) Remove the Cover TX side F. (See page 5-10, 5-11)
2) Remove the Cover TX side B. (See page 5-8, 5-9)
3) Remove the Guide inner A.
4) Remove the GUIDE OUTER.
Guide outer
Guide inner A
