5-37

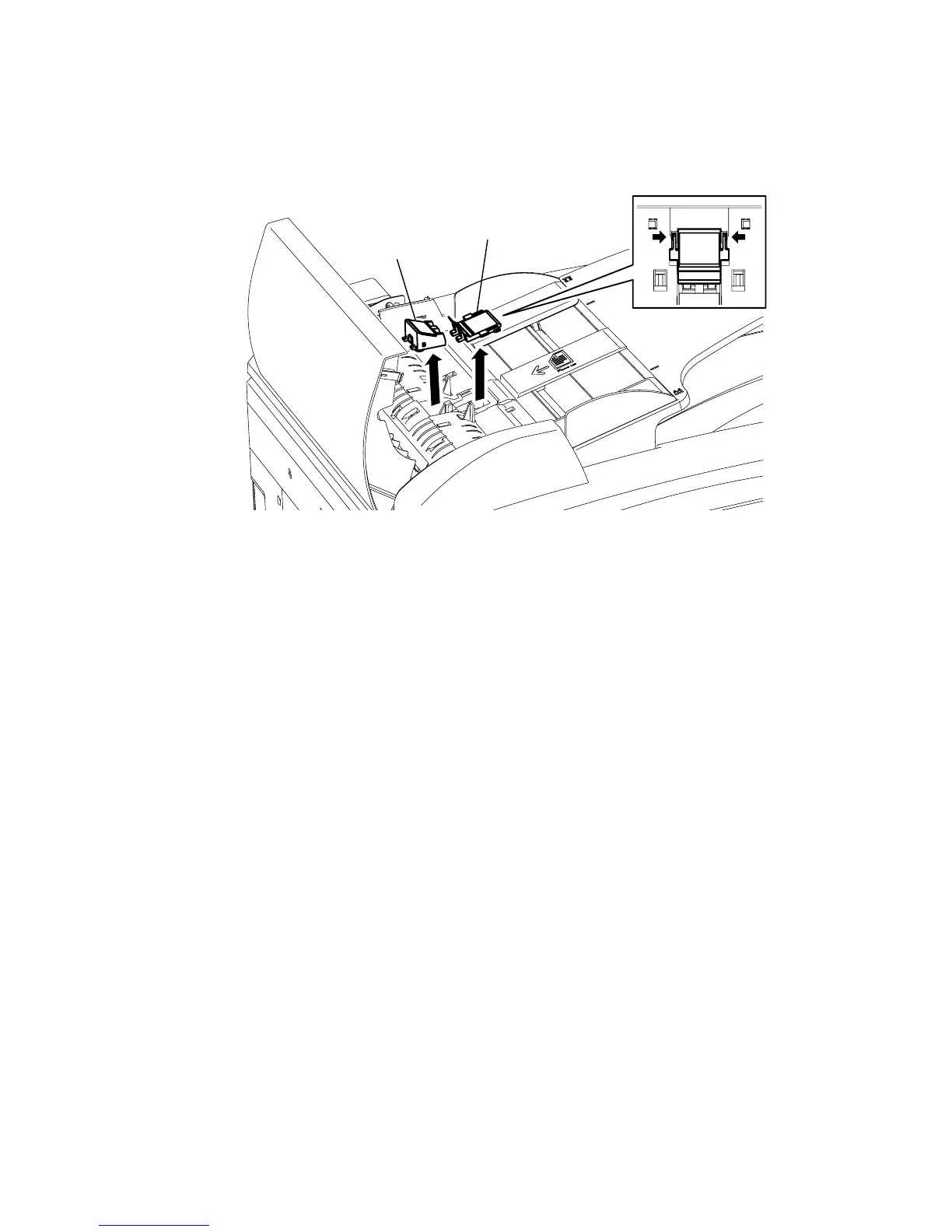

PAD SEPARATOR
1)
Remove the Cover TX side B. (See page 5-8, 5-9)
2)
Remove the Roller separator. (See page 5-25)
3)
Release two locking tabs, and then remove the Cover separator.
4)
Remove the PAD SEPARATOR.
Pad separator
Cover separator
326
328
