5-41

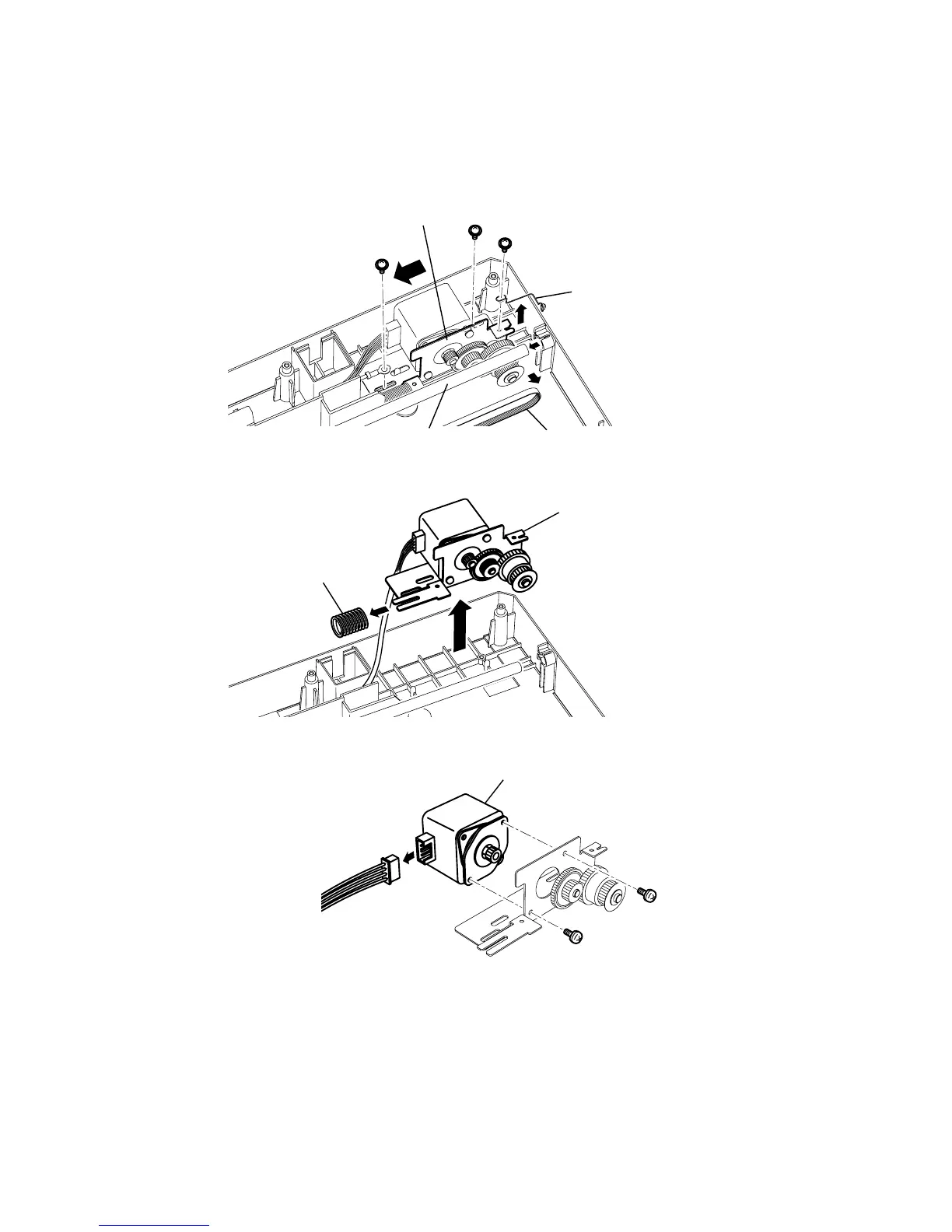

FBS MOTOR (MFX-2050/1450 only)
1)
Remove the Cover platen. (See page 5-7)
2)
Remove the Cover top. (See page 5-13)
3)
Remove three Bracket motor FBS mounting screws.
4)
Remove the Shaft guide, and then remove the spring C FG.
5)
Slide the Bracket motor FBS, and then remove the belt.
Belt
Shaft guide
Bracket motor FBS
Spring C FG
6)
Remove the Spring C tension, and then remove the Bracket motor FBS.
Spring C T
ension
Bracket motor FBS
7)
Remove two FBS motor mounting screw and disconnect the harness, and then remove the FBS MOTOR.
FBS Motor
P83
330
332
