ROLLER EXIT

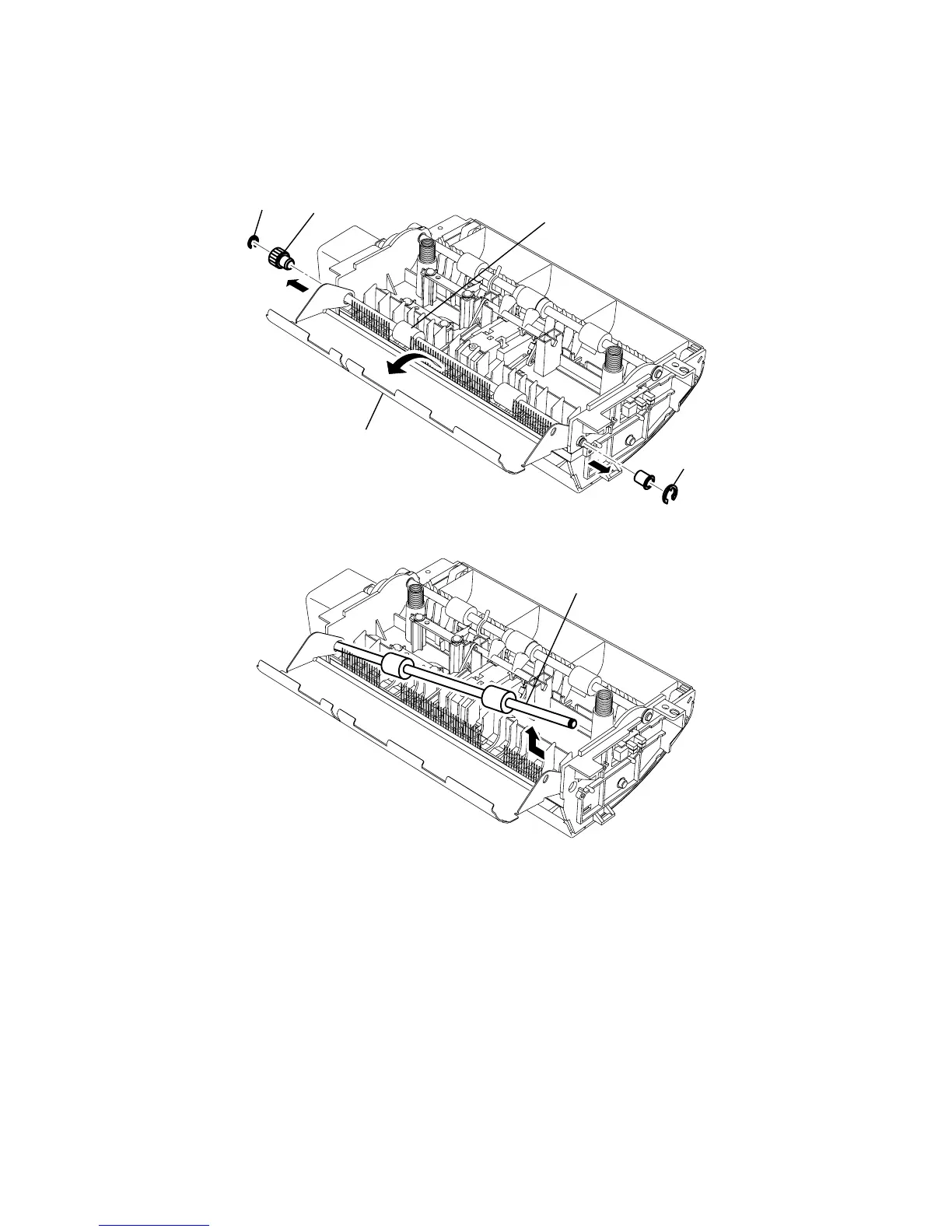

1) Remove the Guide inner A. (See page 5-36)
2) Remove the Spring P earth. (See page 5-26)
3) Open the Guide inner B.
4) Remove two E-rings and then remove the Gear 27 0.5 ONE WAY and one bearing.
E-ring
E-ring
Guide inner B
Roller exit
Gear 27 0.5 ONE WAY
5) Slide out the ROLLER EXIT.
Roller exit
