5-34

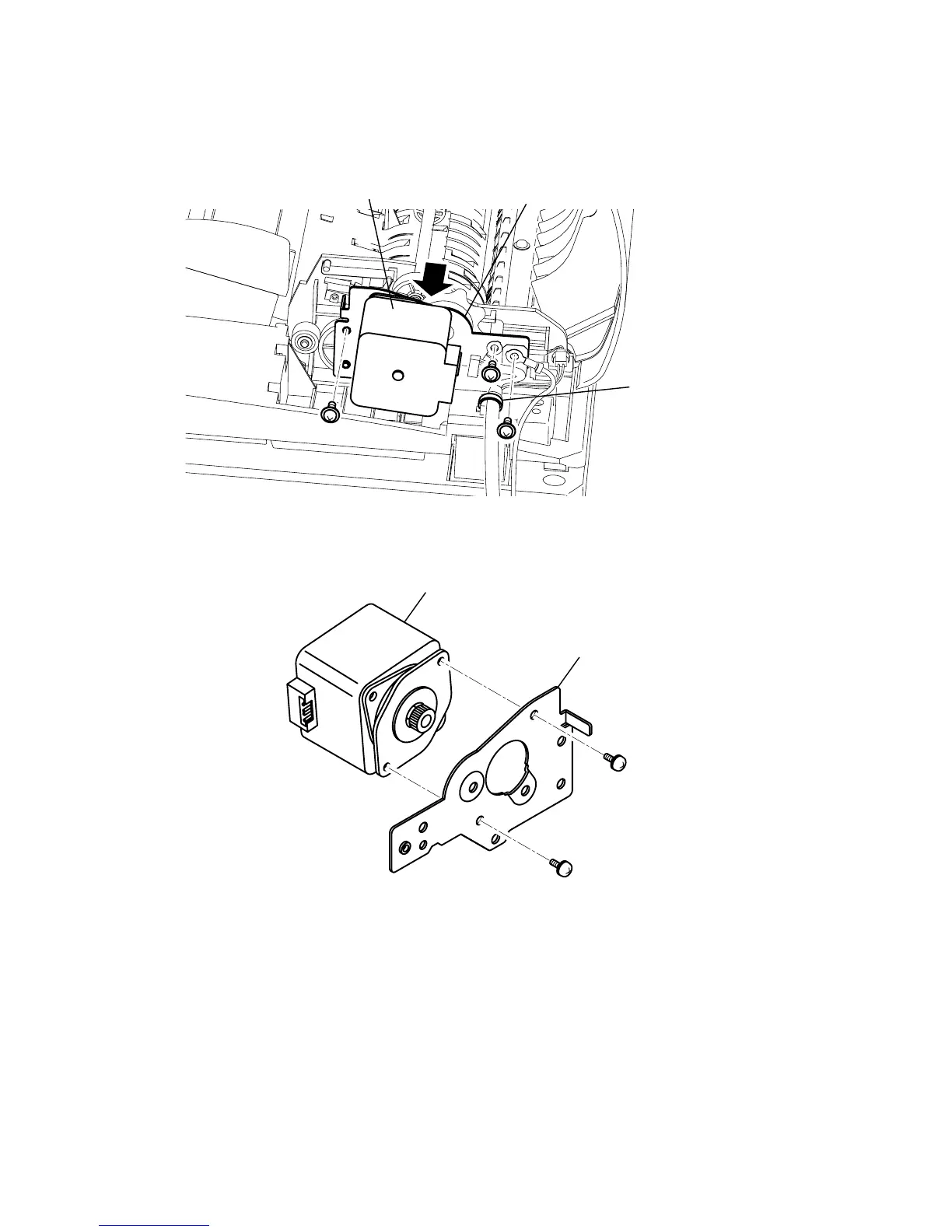

ADF MOTOR
1)
Remove the Cover TX side B. (See page 5-8, 5-9)
2)
Cut the Cable tie.
3)
Disconnect the connector.
4)
Remove the three Bracket motor ADF mounting screw, and then remove the Bracket motor ADF.
ADF motor
Bracket motor
ADF
Cable tie
5)
Remove two ADF motor mounting screw, and then remove the ADF MOTOR.
ADF motor
Bracket motor
ADF
323
325
