6.5 Second phone line kit

This option is not available in every country.

6.5.1 Packaging contents:

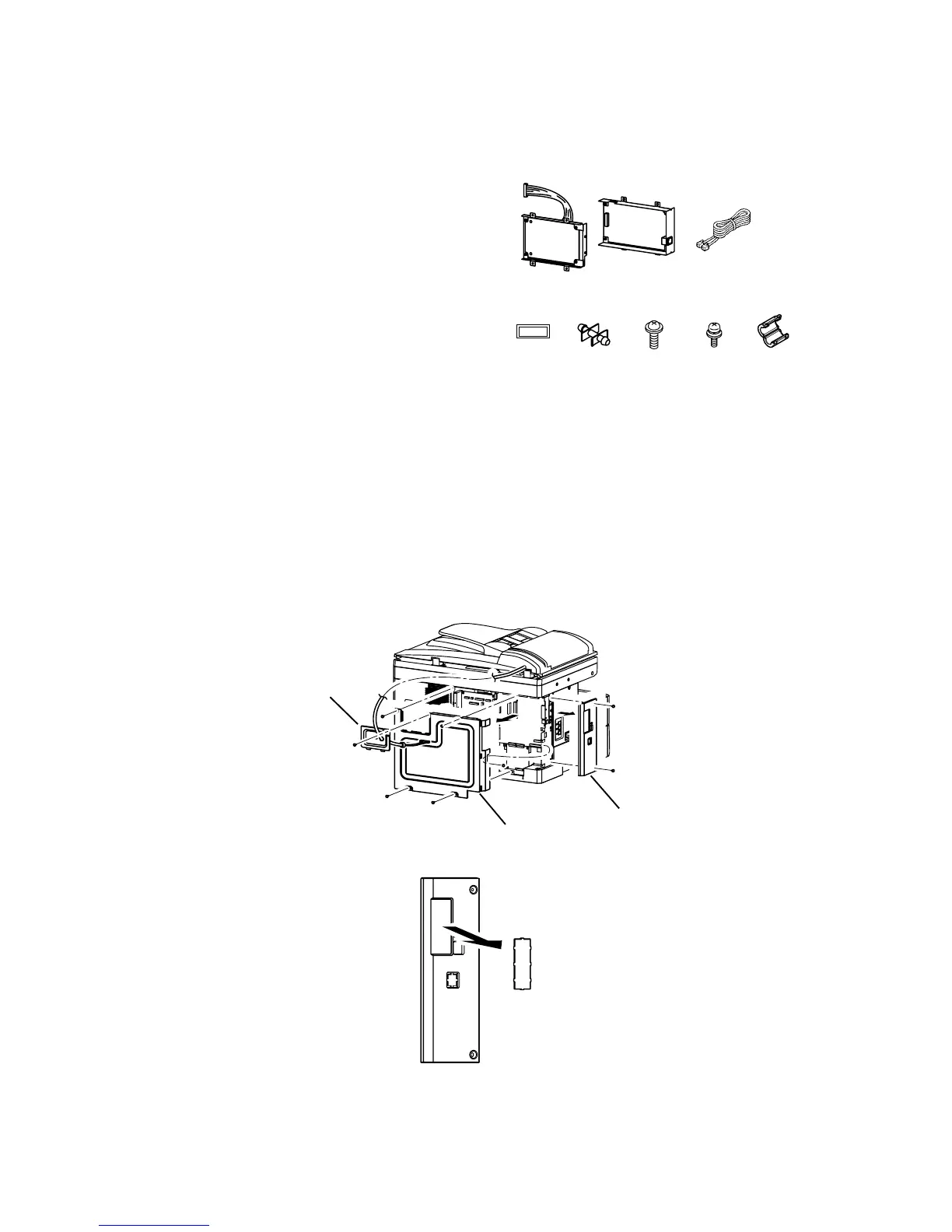

1. Modem PCB .................................................... 1

2. NCU PCB ........................................................ 1

3. Telephone line cable ....................................... 1

4. Label ............................................................... 4

5. Spacers .......................................................... 1

6. Screw A .......................................................... 6

7. Screw B .......................................................... 4

8. Ferrite core ...................................................... 1

9. Operation manual ............................................ 1

(1) (2) (3)

(5) (7)(6)(4)

Line2

(8)

Note: 6 screws (A) are included, but only 2 are required to for installation.

Note: The telephone line cable looks different according to the country.

6.5.2 Installation

1. Turn the power off and unplug the power cord.

2. Remove the covers.

1) Remove the connect cover screw and the cover.

2) Unplug the harness that is going through the connect cover.

3) Remove the two screws and the option cover.

4) Remove the ﬁve screws and the shield cover.

Connect cover

Shield cover

Option cover

3.Use the nippers to carefully punch out the panel on the option cover.
