5-31
6)

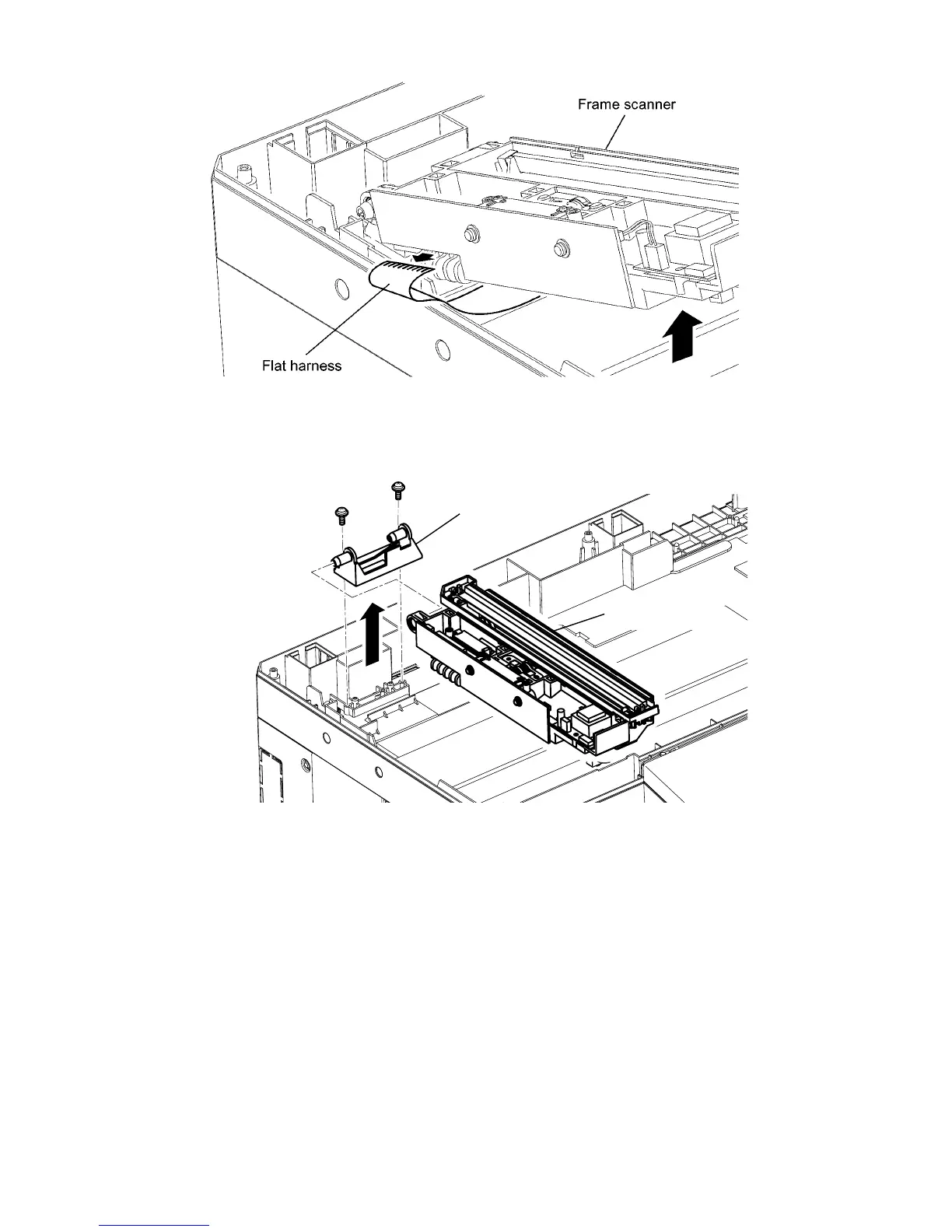

Lift the front of the Frame scanner, and then disconnect the Flat harness on the Frame scanner.
7)
Remove two Bracket scanner B mounting screws, and then remove the Bracket scanner B.
8)
Slide out the Bracket scanner B as shown below. Then remove the FRAME SCANNER.
Bracket scanner B
Frame scanner
320
322
