6-4

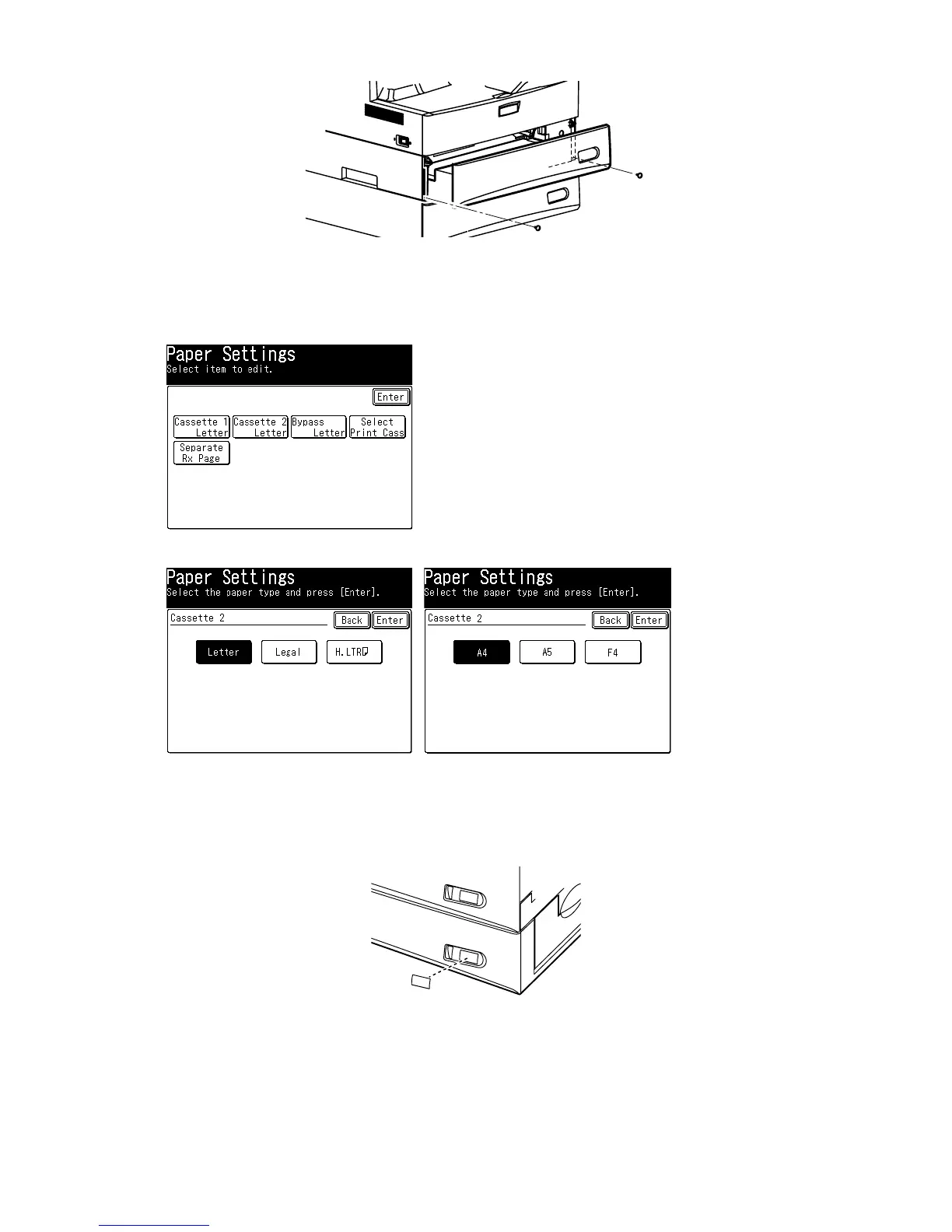

7. Open the first cassette and attach both screws both ends using two screws.
8.Reattach the covers and the harness.
9. Press <Setting>, [Paper Setting].
10.
Select [Cassette 2].
(US version)
(European version)
11.
Select the paper size of the second paper cassette, and press [Enter].
12. Press <Reset> to exit.
13. Apply the correct paper size label to the cassette.
375
377
