11) Remove the Spring clutch. (See page 5-45)
12) Remove the Clutch (MG). (See page 5-43)
13) Remove the Motor duplex.
14) [4] Remove the Gear 59H/19.
15) [5] Remove the Gear 35/19.
16) [6] Remove the Gear 20.
17) [7] Remove the Gear 21.
18) [8] Remove the Gear 34 0.8.
19) [9] Remove the Gear 34 (D88-30160-61).
20) [10] Remove the Gear 41/21.
21) [11] Remove the Gear 33H/37.
22) [12] Remove the Gear 22.
23) [13] Remove the Gear 57H/27H.

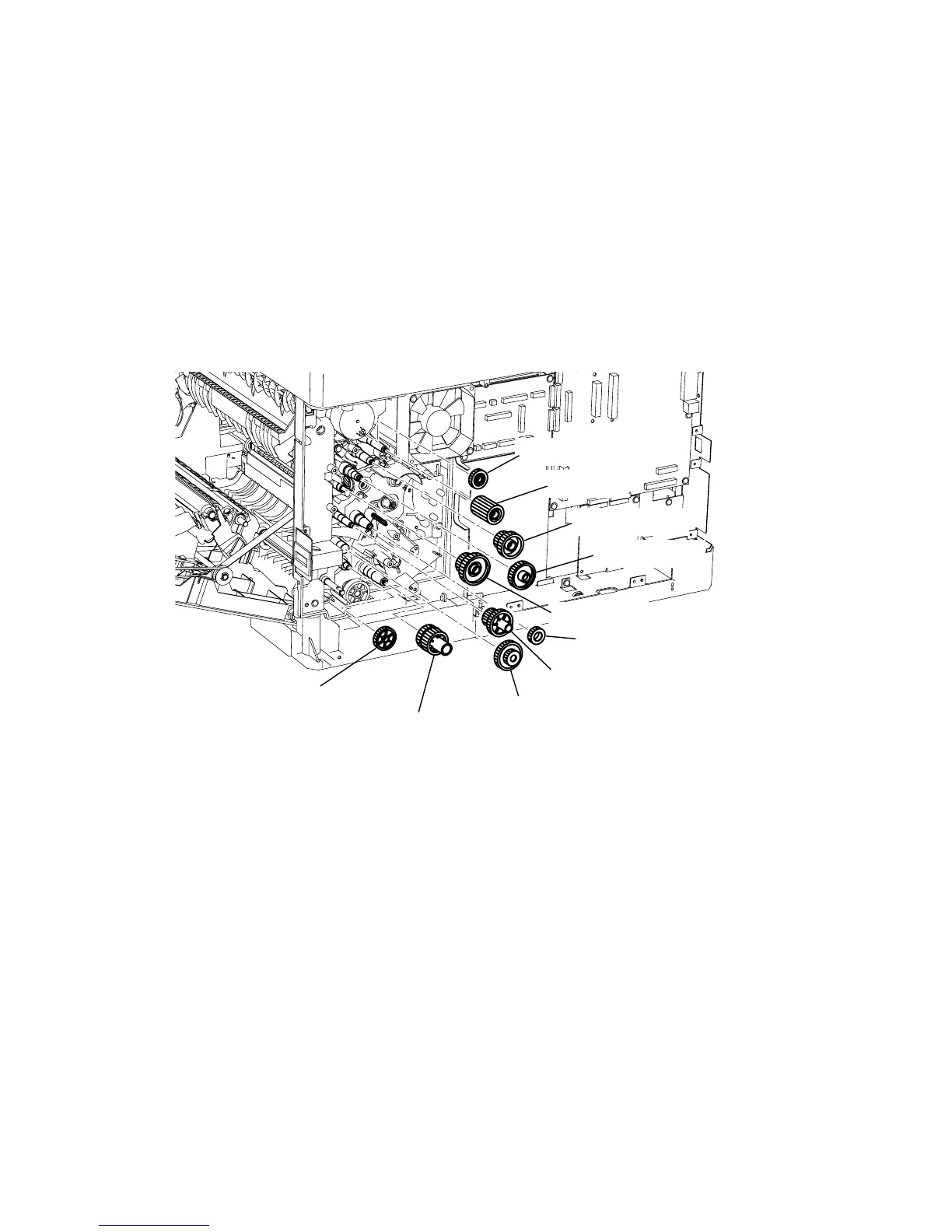

[8] Gear 34 0.8
[9] Gear 34
[6] Gear 20
[7] Gear 21
[5] Gear 35/19
[4] Gear 59H/19
[13] Gear 57H/27H
[12] Gear 22
[11] Gear 33H/37
[10] Gear 41/21
